TINA/Spice/TPS51220A: Why Pspice model pin out is different.

Henry Kang

Part Number: TPS51220A
Other Parts Discussed in Thread: TINA-TI

Tool/software: TINA-TI or Spice Models

Hi team,

May i have your help to know why TPS51225A pspice model pin out is different with pin out in datasheet? is this model ok?

over 7 years ago

0 Edwin Zang over 7 years ago

TI__Expert 6425 points

Hi Henry,

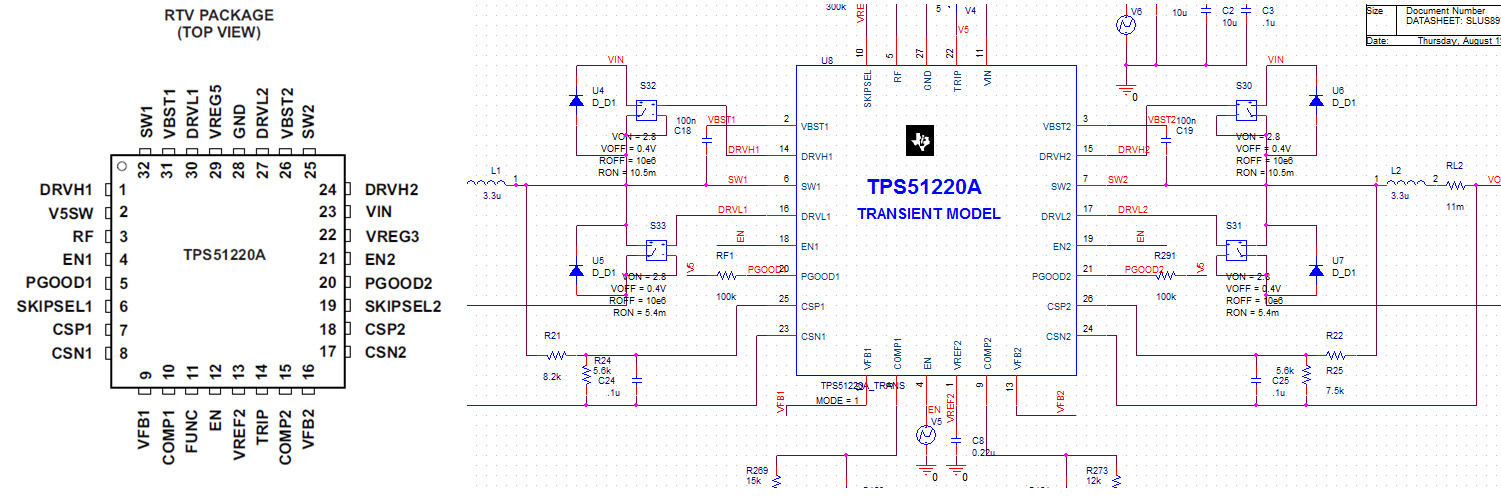

I run the Pspice model, it's no problem. You can refer the simulation.

I'll ask our model team the reason that Pin number is different.

best regards,

Edwin.

0 Henry Kang over 7 years ago in reply to Edwin Zang

TI__Intellectual 1080 points

Hi Edwin,
Thanks for your help.
TPS51225A device has different control mode (Dcap/current mode) which is controller by FUNC pin. But this model doesn't have that pin. can this model support different control mode? or what's default control mode for this model?

0 Edwin Zang over 7 years ago in reply to Henry Kang

TI__Expert 6425 points

Hi Henry,

This model only supports current mode, it doesn't support DCAP mode. And default control mode is current mode.

please refer the application notes.

0 Henry Kang over 7 years ago in reply to Edwin Zang

TI__Intellectual 1080 points

Hi Edwin,
Thanks for your help.

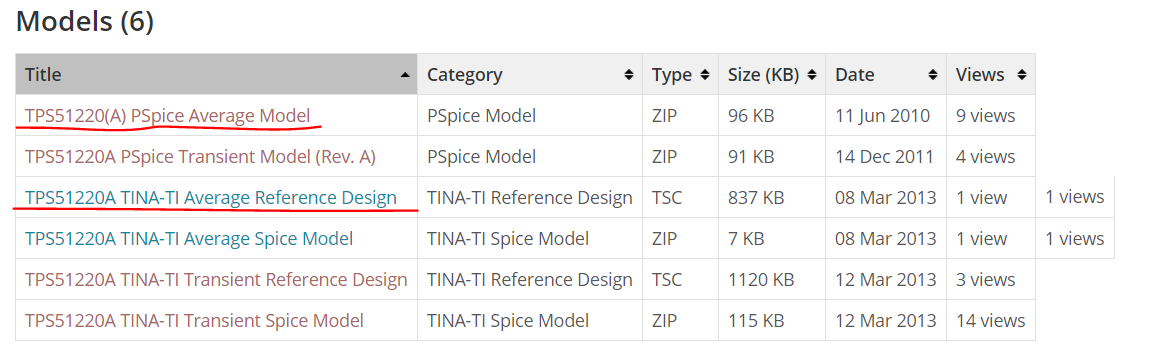

One more question, can this Pspice model support Bode plot simulation? if it can't, may i have your help to know is there other ways can get the model which can simulate Bode plot?
