BQ27Z561: a question about BQ27Z561 layout

user5779423

Prodigy 50 points

Part Number: BQ27Z561

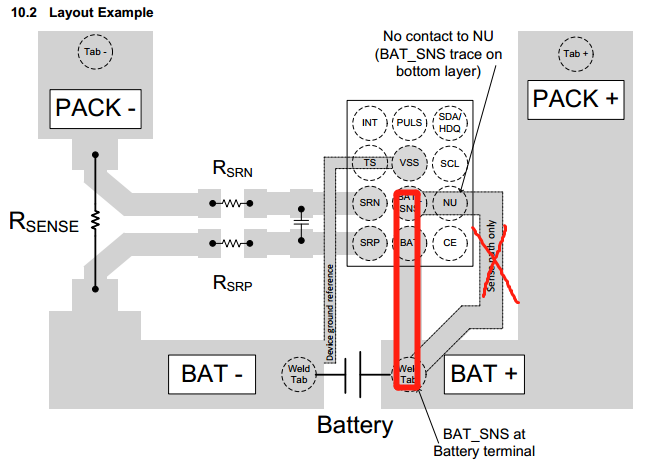

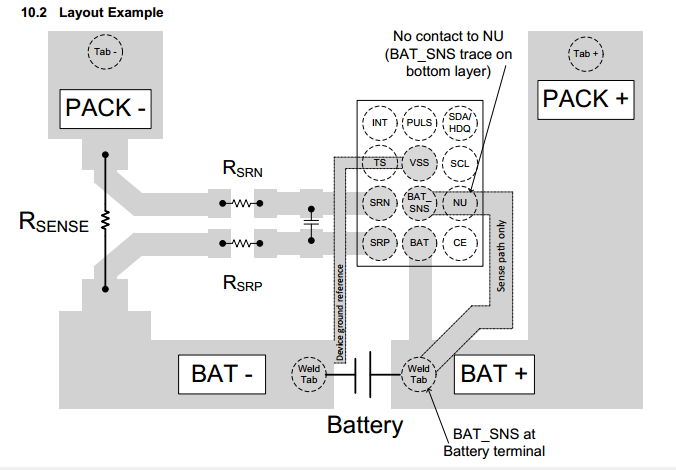

Does anyone know what would happen if I didn't follow the example layout and use the red box layout?

over 7 years ago

0 Onyx Ahiakwo over 7 years ago

TI__Guru* 76230 points

Chappell,
That wouldn't be a Kelvin connection. That pin needs its on individual trace kelvin connection

thanks
Onyx

0 user5779423 over 7 years ago in reply to Onyx Ahiakwo

Prodigy 50 points

Dear Onyx

Can you explain the Kelvin connection in detail?At the moment I have adopted the red box layout, there are some problems, but I don't know if it is due to the layout.

0 Onyx Ahiakwo over 7 years ago in reply to user5779423

TI__Guru* 76230 points

Hi Chappell,
Pls google Kelvin connections.

What problems are you seeing?

thanks
Onyx
