LM5050-1: Oring or Hotswap First

Kuan Wei Chen (Kevin Chen)

Genius 9710 points

Part Number: LM5050-1
Other Parts Discussed in Thread: LM5069

Dear Team,

My customer is wondering should put LM5050 Oring or LM5059 Hotswap first?

They use both LM5050 and LM5069, but not sure the order in the layout.

Best Regards

Kevin

over 7 years ago

0 Rakesh over 7 years ago

TI__Guru** 105531 points

Hi Kevin,

In many cases, it does not matter. What are the power sources? Is the customer trying to prioritize one source over the other? or Do they intent both sources to power a common load. System examples in Section 10.3 of www.ti.com/.../tps24740.pdf provides more insights.

Can you share complete schematic to look at.

Best Regards,
Rakesh

0 Kuan Wei Chen (Kevin Chen) over 7 years ago in reply to Rakesh

TI__Genius 9710 points

Dear Rakesh,

Thanks for the quick reply. So what is the case matters?

They didn't need to prioritize the source. They have 3 power source to power the same load.

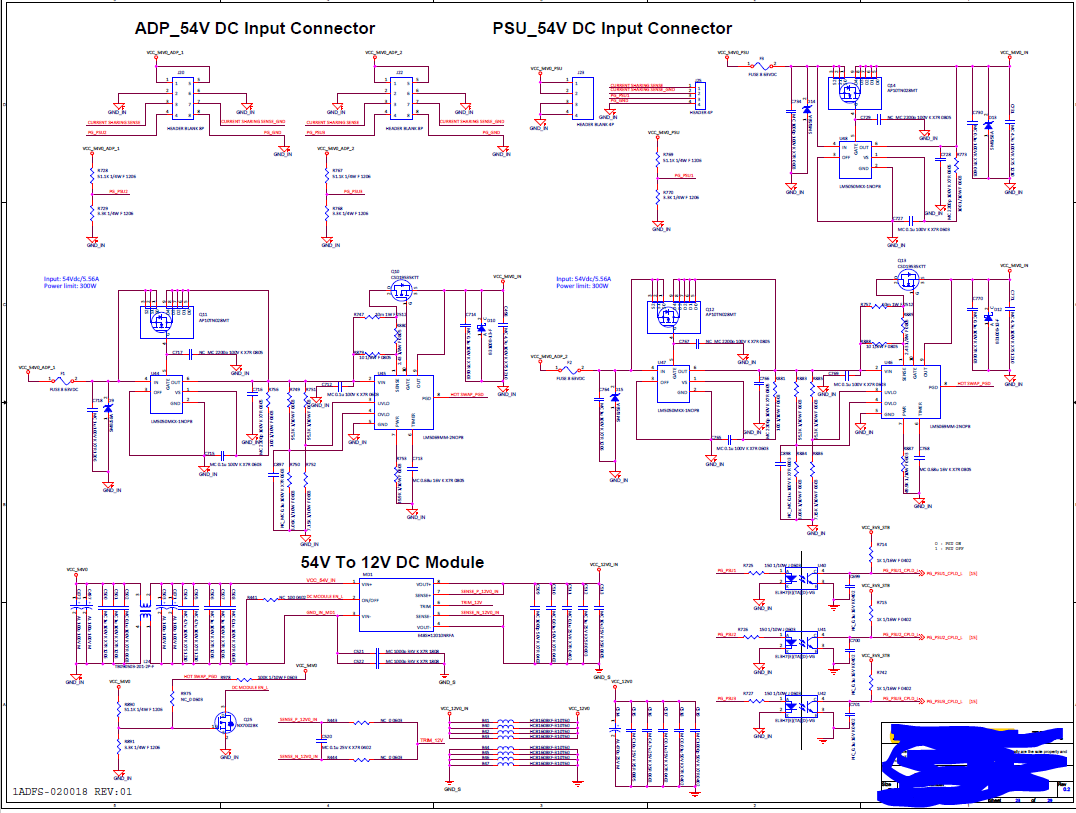

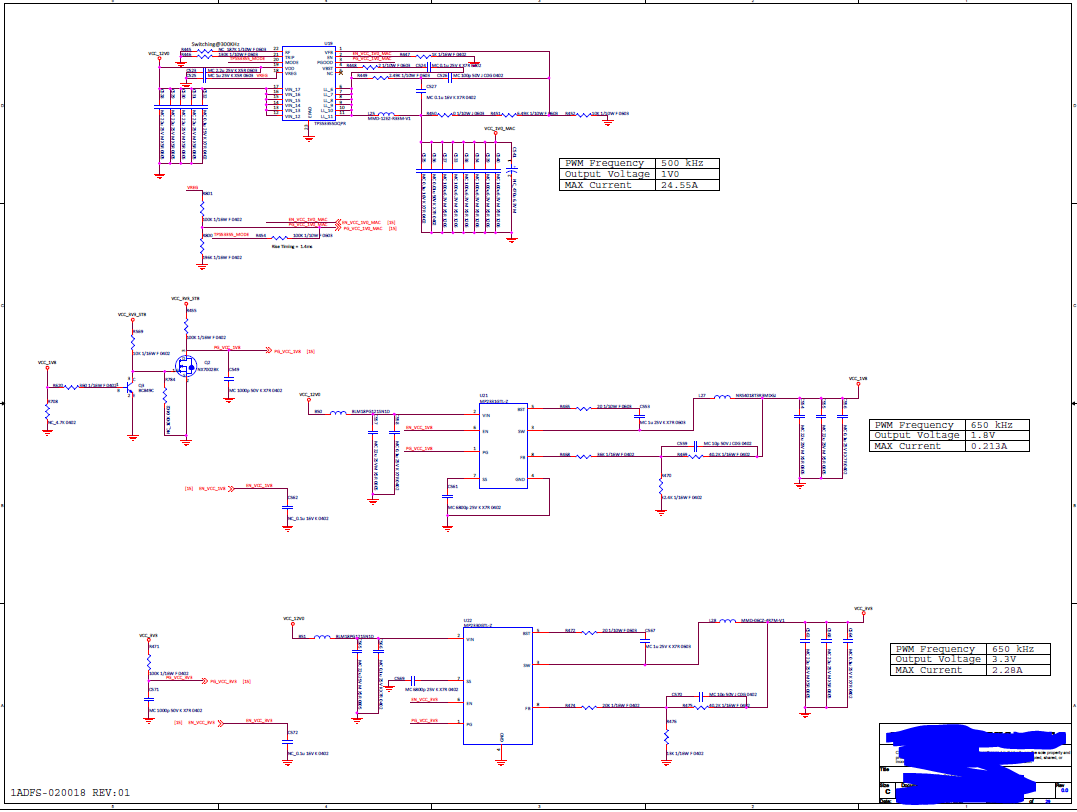

Schematic as attach.

Best Regards

Kevin

0 Rakesh over 7 years ago in reply to Kuan Wei Chen (Kevin Chen)

TI__Guru** 105531 points

Hi Kevin,

For source prioritization, Hot-swap is preferred at the front-end to make or break the path as ORing does not disconnect the path.

Here, 3 power sources are powering the same load. So, ORing for the three sources at first stage with a single hot-swap stage would be good choice.
Can you please share better resolution schematic to my email ID.

Best Regards,
Rakesh
