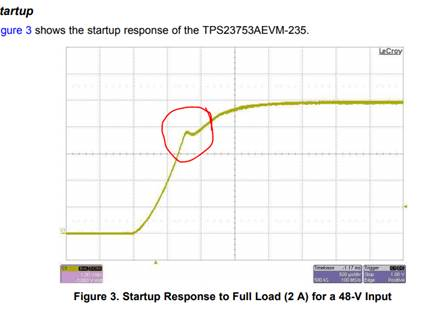

TPS23753A: http://www.ti.com/tool/TPS23753AEVM-235?keyMatch=TPS23753Aevm&tisearch=Search-EN-Everything， TPS23753AEVM-235 files figure 3 ,why it is have rush wave?

aladdin wang61

Prodigy 90 points

Part Number: TPS23753A

over 7 years ago

0 Darwin Fernandez over 7 years ago

TI__Mastermind 41770 points

Hi Aladdin,

The dip you circled above is a function of the voltage reference on the secondary side turning ON and its associated softstart circuit. For 5V, this is typically okay for most applications.

However, you can try varying the softstart time through R18 and C26 to optimize a more desired output startup waveform. I recommend reducing the softstart time. The trade off is that you may see some overshoot if you go too low.

Regards,
Darwin

0 Jason Dai over 6 years ago in reply to Darwin Fernandez

TI__Expert 3720 points

Hello Darwin,

We tried to fine tune R18 and C26 whatever increasing or decreasing, but we didn't see any improve on smooth waveform.

Do you have other ideas?

TPS23753A soft start fine tune on evm.xlsx

BR,

Jason

0 Darwin Fernandez over 6 years ago in reply to Jason Dai

TI__Mastermind 41770 points

Hi Jason,

As discussed offline, you might be able play with the loop but it is not recommended as it will affect the transient response. It might be that a different PD controller with an adjustable softstart can be used.

Regards,
Darwin
