BQ24105: 3cell battery charger

Mike Jung

Intellectual 700 points

Part Number: BQ24105

Hi all.

I'd like to ask you about a problem when charging.

basically, when the target chaging voltage is reached, the charging current is gradully reduced as in DS figure 3.

however, likt the attached waveform, the charging current remains intact as the BAT voltage becomes 0V.

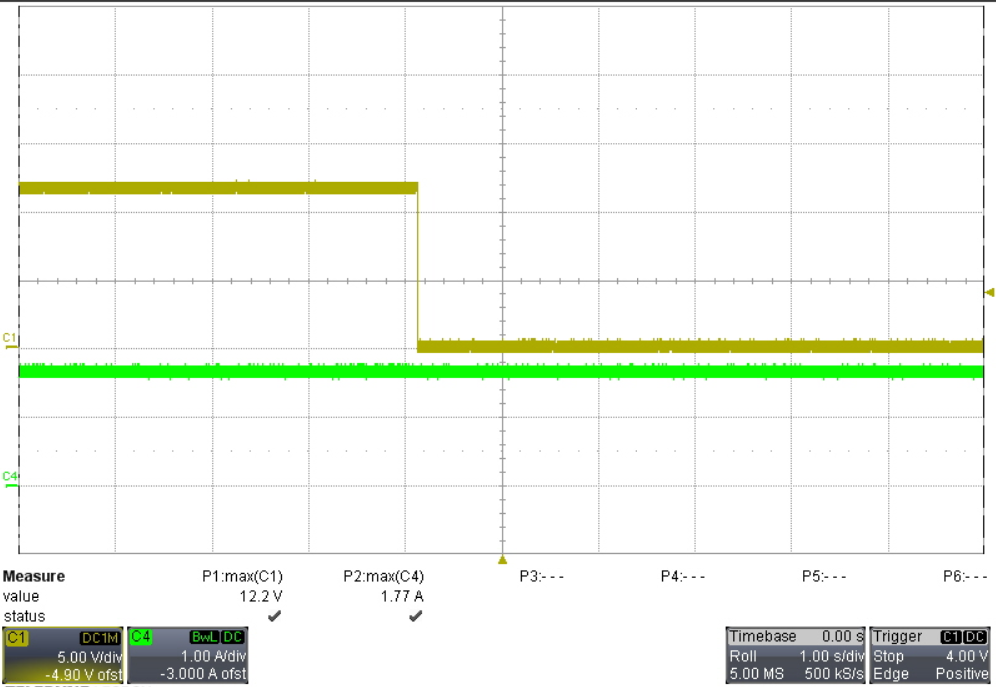

(ch. 1 : Bat pin voltage, ch.4 : charging current)

As shown in C3 of EVM, we added a capacitor to verify normal operation.

I would like to know the reasons for the improvement by adding C3.

Thanks.

over 6 years ago

0 Ning T over 6 years ago

TI__Guru 57391 points

Hi,

Could you please attach your waveform?

Thanks!

0 Mike Jung over 6 years ago in reply to Ning T

Intellectual 700 points

Thank you for your reply.
I'll forward the missing attachment.

0 Ning T over 6 years ago in reply to Mike Jung

TI__Guru 57391 points

Hi,

Is the battery connected?

Thanks!

0 Mike Jung over 6 years ago in reply to Ning T

Intellectual 700 points

Hi,

battery connected and state pin is still manintained.

Thanks.

0 Ning T over 6 years ago in reply to Mike Jung

TI__Guru 57391 points

Hi,

When the battery is connected, the BAT pin voltage should be equal to the battery voltage. How can the battery voltage go to 0V as shown in CH1?

Thanks!
Please click "This Resolved my issue" button if this post answer your question.
