TPS2546: Overcurrent

Antony Lin

Part Number: TPS2546

Hi,

When there's a overcurrent happening but not exceeding the overcurrent FAULT timer (typ 8.2sec in datasheet), is there any way to prevent voltage drop at IN when there's a drop at OUT.

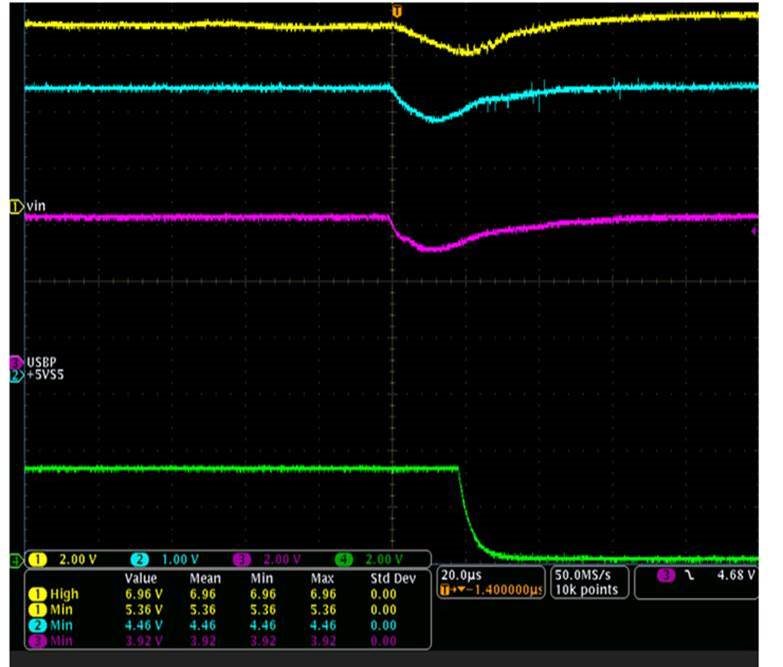

There's a case as below, with OUT at CH-3 and IN at CH-1. You can see there's a short drop in CH-3 when there' s a inrush current happening, and meanwhile a similar drop is seen at CH-1. Is there any way to keep CH-1 constant at this moment?

Thanks!

Antony

over 6 years ago

0 Feifei Shen over 6 years ago

TI__Expert 3275 points

Hi Antony,
Can we add more cap on Vin or Vout? Thank you.

Best regards,
Feifei

0 Chuck Branch over 6 years ago in reply to Feifei Shen

TI__Mastermind 32711 points

Antony,

Were you able to test adding more capacitance?

0 Chuck Branch over 6 years ago in reply to Chuck Branch

TI__Mastermind 32711 points

Antony,

I am going to move this to resolved status because it has been more than a week without an update. Please reply to this message to reopen if necessary.

Regards,
Chuck

0 Antony Lin over 6 years ago in reply to Chuck Branch

TI__Genius 13480 points

Hi Chuck,

Sorry for the late response. Customer confirmed it's helpful to add caps here, but would still like to know if there's any protection mechanism for such scenario within the chip. Can you confirm this?

THanks!

Antony

0 Chuck Branch over 6 years ago in reply to Antony Lin

TI__Mastermind 32711 points

Antony,

This fault appears to be caused by a current transient. The reason that we suggested adding more capacitance was to provide extra charge storage to absorb the transient without causing a current limit.

There is now way to prevent this from happening beyond adding the capacitance.
