UCC24624: only used in center tapped LLC?

Hao Wen

Part Number: UCC24624
Other Parts Discussed in Thread: UCC24612

Hello,

I am just wondering if UCC24624 can only be used in center tapped topology in LLC and it can not be used in voltage doubler. Because it only has one shared source sense pin VSS. Thank you very much.

Best,

Hao

over 6 years ago

0 Hong Huang over 6 years ago

TI__Guru 74115 points

Can you please show your voltage doubler configuration so we can understand where you intend to use UCC24624?

0 Hao Wen over 6 years ago in reply to Hong Huang

Prodigy 200 points

Hello,

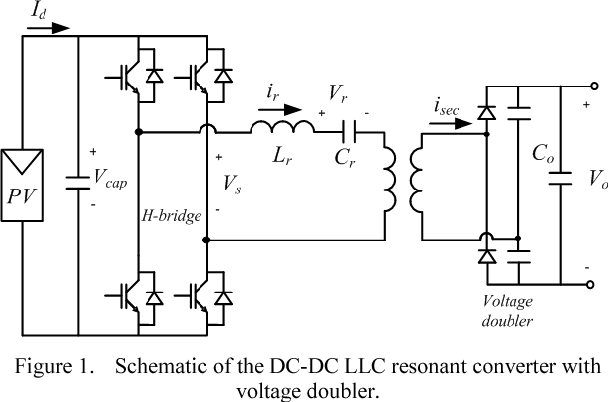

I would like to use it for the secondary side to replace the two diodes as shown above. Thank you very much.

0 Hong Huang over 6 years ago in reply to Hao Wen

TI__Guru 74115 points

This configuration cannot use UCC24624 since UCC24624 does not have high side driver.

0 Hong Huang over 6 years ago in reply to Hong Huang

TI__Guru 74115 points

Can you look at UCC24612 to see if it fits this application?

0 Hao Wen over 6 years ago in reply to Hong Huang

Prodigy 200 points

Yes, it should be ok for my application. Thank you.
