WEBENCH® Tools/TPS54360B-Q1: PCB layout for Automotive GPS tracker power supply

Alexander Zibin

Part Number: TPS54360B-Q1

Tool/software: WEBENCH® Design Tools

Hi,

I am building 5V/2A power supply for GPS tracker for truck (12/24 V noisy input), it will feed a GPS module with ESP32-WROOM-32. Later also the GSM module will be added.

I get the PCB design on WEBENCH® POWER DESIGNER (TPS54360BQDDARQ1), but this design is 4-layered.

I can design my own 2-layer PCB in EasyEDA (I also plan to order parts&soldering there), but my question is - what heat dissipation requirements I must follow to make my design durable and reliable?

WEBENCH^® POWER DESIGNER ^(Beta)NEW DESIGN

MY DESIGNS

account_circle

over 6 years ago

0 Robert Blattner over 6 years ago

TI__Expert 6245 points

Hello Alexander,

Under “Edit PCB”, near the top of the screen, in WebTherm, you can delete the mid layers. I found that when I do this, the temperature difference between the device and cooler components on the board approximately doubles. In that same menu, you can also change the thickness of the front and back copper to match your intended design.

Regards, Robert

0 Alexander Zibin over 6 years ago in reply to Robert Blattner

Prodigy 30 points

Hello Robert,

Thank you very much for prompt answer.

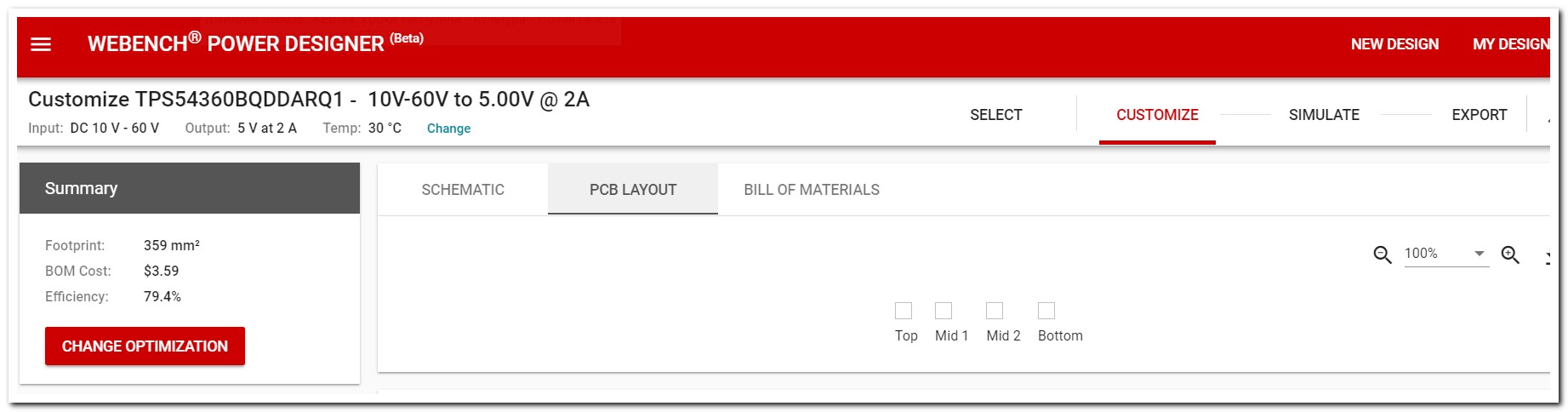

Unfortunately I can't find “Edit PCB” near the top of the screen - please see the enclosed screenshot.

0 Ambreesh Tripathi over 6 years ago in reply to Alexander Zibin

TI__Expert 6860 points

Alexander ,

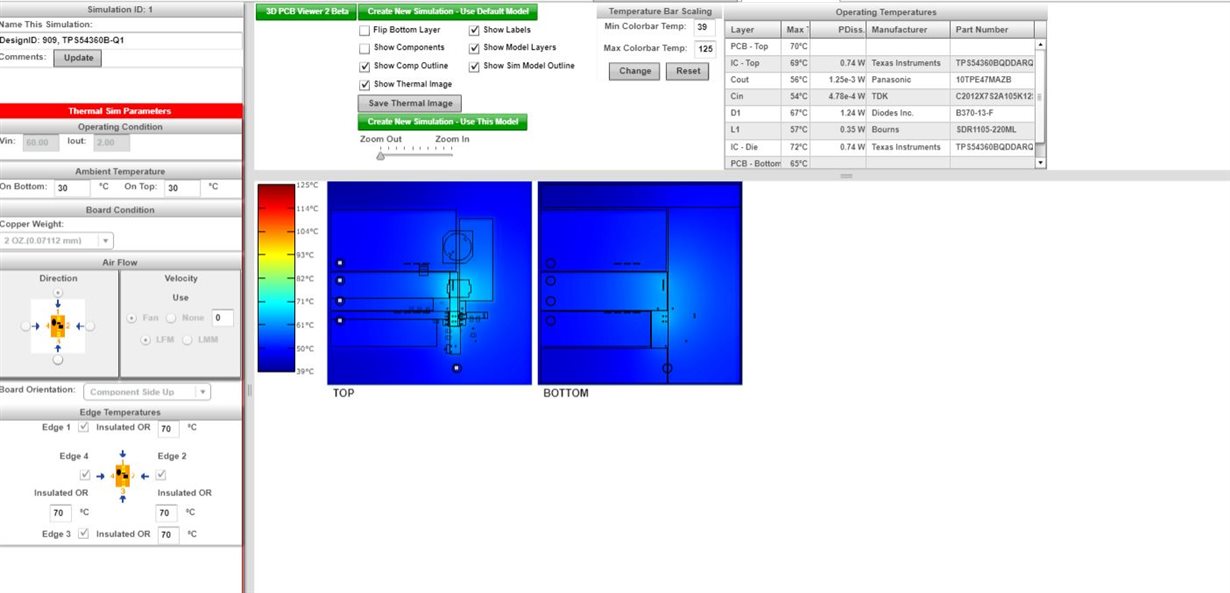

I used classic Webench designer using Flash and i was able to simulate the design with 2 layer board. Here is the data at 60V input and 350KHz switchign frequency (5V @ 2A output. )

0 Alexander Zibin over 6 years ago in reply to Ambreesh Tripathi

Prodigy 30 points

Ambreesh,

Thank you for your help.

I will go on with classic Webench Flash version.
