TL431: TL431BQDBZR Tc Point

user5872438

Prodigy 40 points

Part Number: TL431

A temperature test of a product is done.

product is TL431BQDBZR

Package Type　SOT-23

Where should thermocouple be put?

1.CATHODE

2.REF

3.ANODE

4.body

over 6 years ago

0 Marcoo Z over 6 years ago

TI__Mastermind 19580 points

Hi User,

The thermal couple depends on the type of test done. Please check out the application note from TI that describes most situations.
www.ti.com/.../spra953c.pdf

-Marcoo

0 user5872438 over 6 years ago in reply to Marcoo Z

Prodigy 40 points

It was settled.
Thank you very much.

0 user5872438 over 6 years ago in reply to Marcoo Z

Prodigy 40 points

Thank you for the reply.

It's confirmation.
Which terminal is also OK?

0 Marcoo Z over 6 years ago in reply to user5872438

TI__Mastermind 19580 points

Hi User,

It depends on which Tc you are trying to measure. Temperature tests are typically done on the body not necessarily the pins because the silicon is the part getting heated up.
Can you give me more details.

-Marcoo

0 user5872438 over 6 years ago in reply to Marcoo Z

Prodigy 40 points

Thank you for your help.

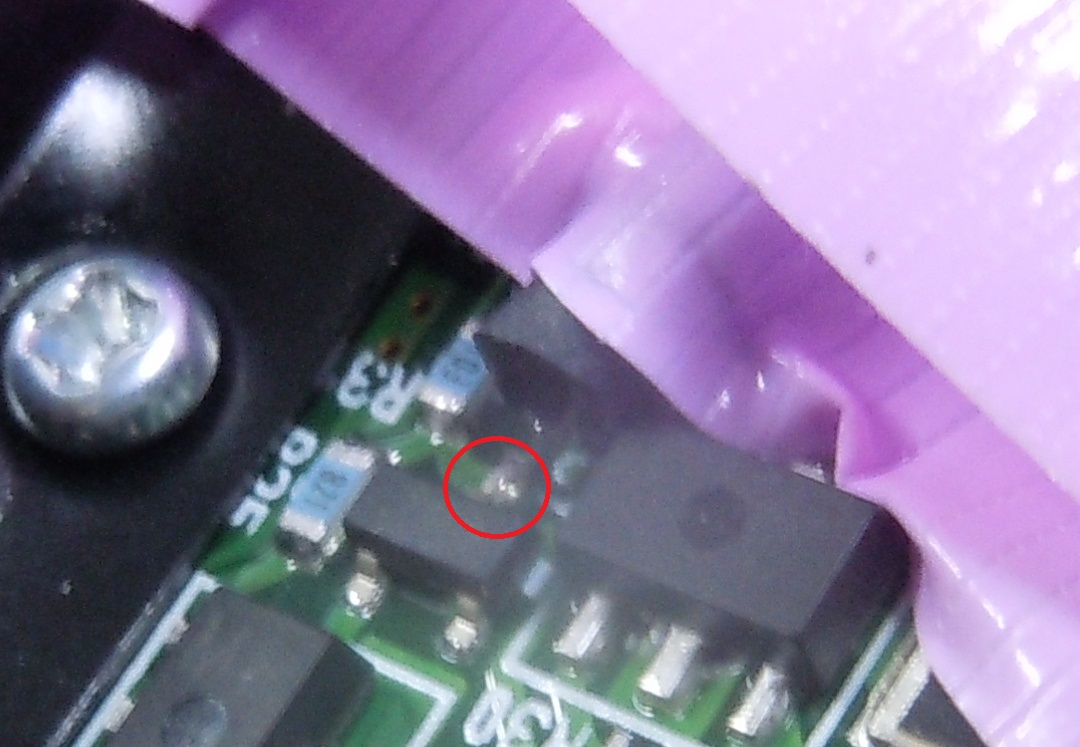

A thermocouple was installed in the circled in red part.　

Is here OK?

0 Marcoo Z over 6 years ago in reply to user5872438

TI__Mastermind 19580 points

Hi User,

That location is fine depending on what you are measuring . the TL431 does not get hot so I would not worry too much about temperature.

-Marcoo
