CCS/EM1402EVM: Test connection error only after programming TMS board

Reynier Serpa

Part Number: EM1402EVM
Other Parts Discussed in Thread: BQ76PL455A-Q1

Tool/software: Code Composer Studio

Hello,

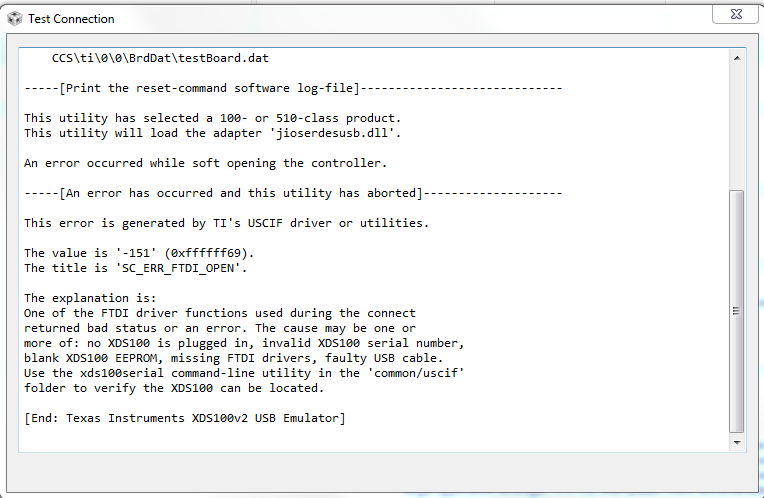

I am following the TIDM-TMS570BMS example and have performed the necessary modifications and before programming the board I am able to test connection and receive this message: "The JTAG DR Integrity scan-test has succeeded." However, after programming the board I am able to open the GUI but when I retest my connection I receive this error message

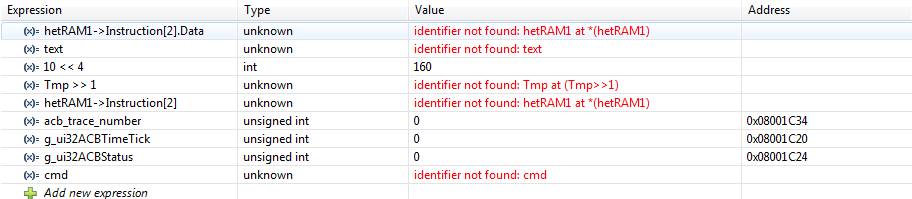

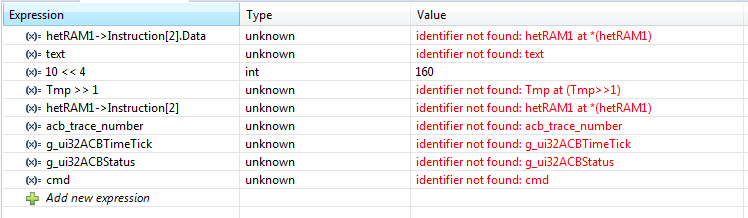

Additionally under the expressions tab there are many error messages as shown below:

The main issue im having is not being able to balance, the cell voltages are able to be read however when balancing is enabled the voltages do not change. I confirmed using a logic analyzer that SPI signals are present so I suspect it is a programming error. Any help would be appreciated

Sincerely,

Reynier

over 6 years ago

0 Taylor Vogt over 6 years ago

TI__Genius 17370 points

Hi Reynier,

Thanks for the question, however we will need some time to look at this and will get back to after the Thanksgiving holiday break.

Best regards,

Taylor

0 Vince over 6 years ago in reply to Taylor Vogt

TI__Mastermind 19795 points

Hi Reynier,

Please ensure that resistor R8 has been removed from the TMS570 board as mentioned in the "Getting Started with the bq76PL455A-Q1 Example Code" document (link: www.ti.com/.../slva635.pdf).

Thanks!
Vince

0 Reynier Serpa over 6 years ago in reply to Vince

Prodigy 250 points

Hello Vince,
Yes, I have followed all the modifications on the document. This includes removing R8.

0 Vince over 6 years ago in reply to Reynier Serpa

TI__Mastermind 19795 points

Hi Reynier,

Can you ensure that the proper FTDI drivers are installed? (link: www.ftdichip.com/.../VCP.htm)

Regards,
Vince

0 Reynier Serpa over 6 years ago in reply to Vince

Prodigy 250 points

Am I not supposed to be using the xds100 drivers that come with CCS?

0 Vince over 6 years ago in reply to Reynier Serpa

TI__Mastermind 19795 points

Hi Reynier,

I apologize for the delay. If the xds100 is not working for your current application, I would recommend trying the FTDI drivers. In most cases, the FTDI drivers linked will provide full support of the FTDI cable that is shipped with the bq76PL455/EM1402.

Let me know if the driver solves the connection issue for you!

Thanks,
Vince
