BQ40Z80: schematic confirm about bq40z80EVM

Bruce li

Part Number: BQ40Z80

Dear TI Experts,

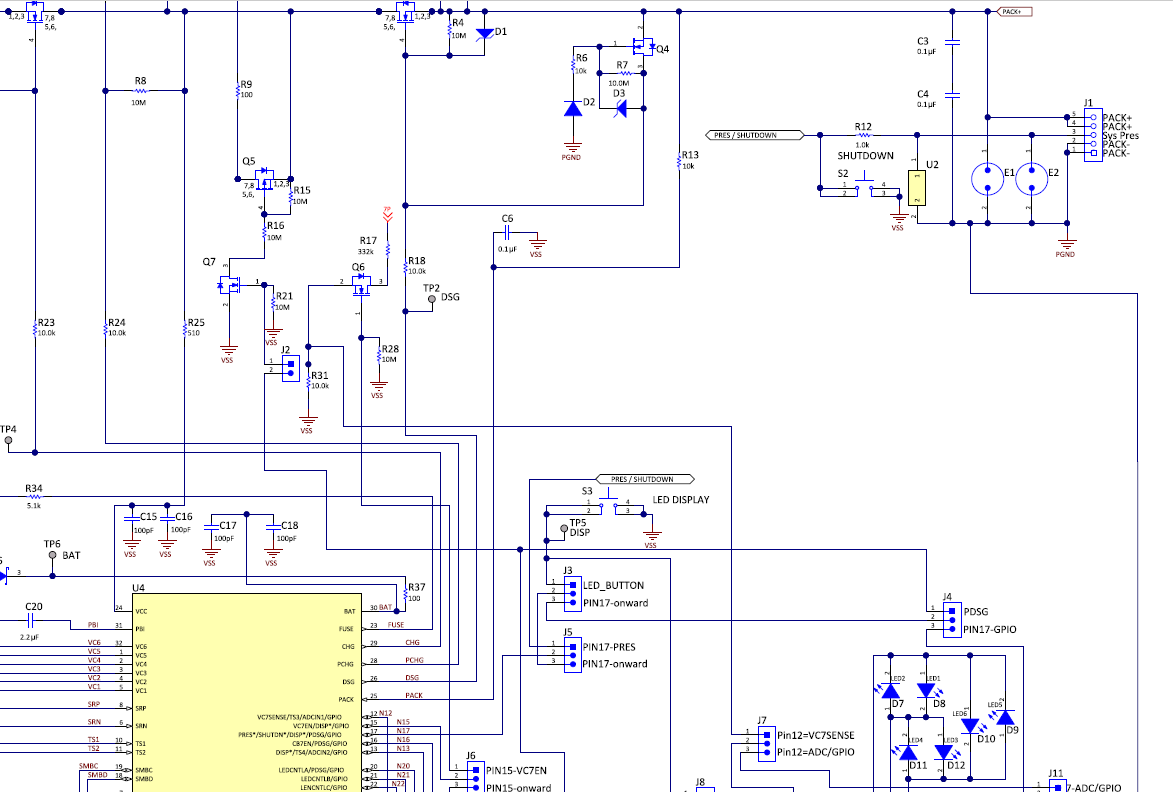

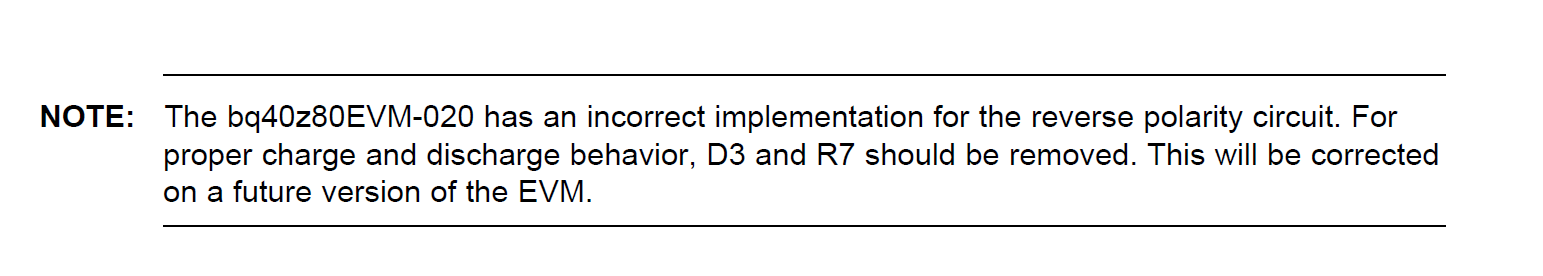

I found a errata message from bq40z80EVM's User's Guide as below.

I suppose this can be solved by just switching positive and negative pins of D3 in the new design and keep all other circuit the same, is this right? Thanks.

over 6 years ago

0 Batt over 6 years ago

TI__Mastermind 42535 points

No, flip Q4 D and S.

0 Bruce li over 6 years ago in reply to Batt

Genius 5580 points

Dear Batt,
Customer still don't understand how it works about" flip Q4 D and S". Could you kindly give more detailed demonstration about the right circuit?Thanks a lot.

0 Bruce li over 6 years ago in reply to Batt

Genius 5580 points

Dear Batt,
Customer's concern is that "flip Q4 D and S" will lead to Q3 abnormal, he think Q3 will fail to be opened if flip Q4. Could you kindly give some advice ? Thanks a lot.

0 Batt over 6 years ago in reply to Bruce li

TI__Mastermind 42535 points

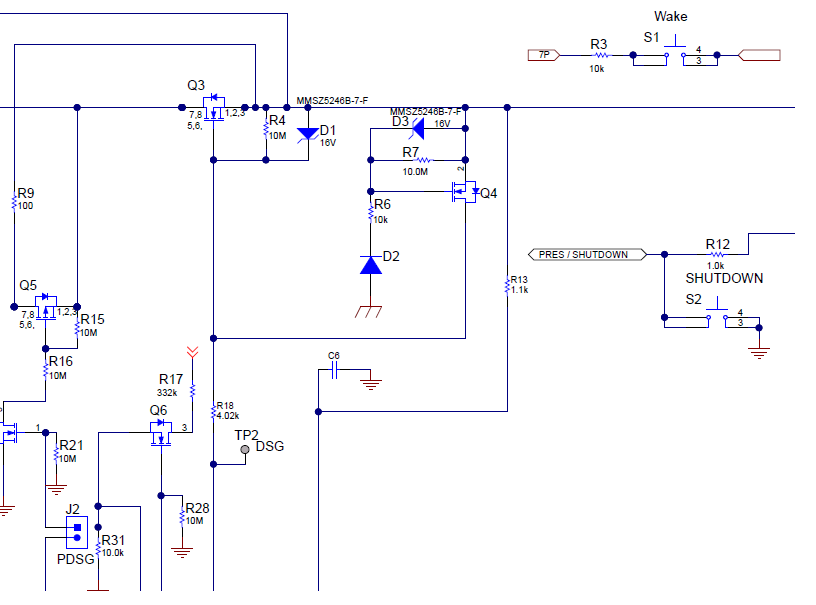

No, it's not. Please find the snippet of the updated schematic. We are planning on releasing a new rev of the DS with the correction soon.

0 Batt over 6 years ago in reply to Batt

TI__Mastermind 42535 points

The updated DS is available online.

0 Bruce li over 6 years ago in reply to Batt

Genius 5580 points

Dear Batt,
Got it, I've found it on ti website, thanks a lot for your support.
