UCD90120A: can't configure device

yuval dassa

Part Number: UCD90120A
Other Parts Discussed in Thread: UCD90124A,

i'm trying to configure(its inside xilinx ac701 rev 2) my device with the "firmware & configuration download tool" but I get the following error:

"11:17:14.522 could not read DEVICE_ID from address 101: NACK; it is impossible to download a project file to a device if it's DEVICE_ID can not be read; this indicates a serious communication or firmware error that must be resolved".

I scanning for the device with the " UCD9XXX Device GUI" I pressed the "scan device in ROM mode" but all I got is "11:10:59.703 Found ROM v2 IC v2 - UCD30xx".

when I tried scan with the "DEVICE ID" button I get "11:12:41.998 No devices found"

the ac701card i'm working with is used but supposed to work.

thank in advance,

yuval.

over 6 years ago

0 yihe over 6 years ago

TI__Guru 65610 points

Hello

It seems that the device enters ROM mode somehow. Could you please tell what kind of operations were made?

Please refer the attached documetn to see whether it will help you. please pay attention to the step5 carefully.

recover UCD90120A from ROM mode.pdf

Regards

Yihe

0 yuval dassa over 6 years ago in reply to yihe

Prodigy 110 points

Hey and thank you for the response,

I tried following the PDF and got to step 5, where i got a different value after pressing the calculate.

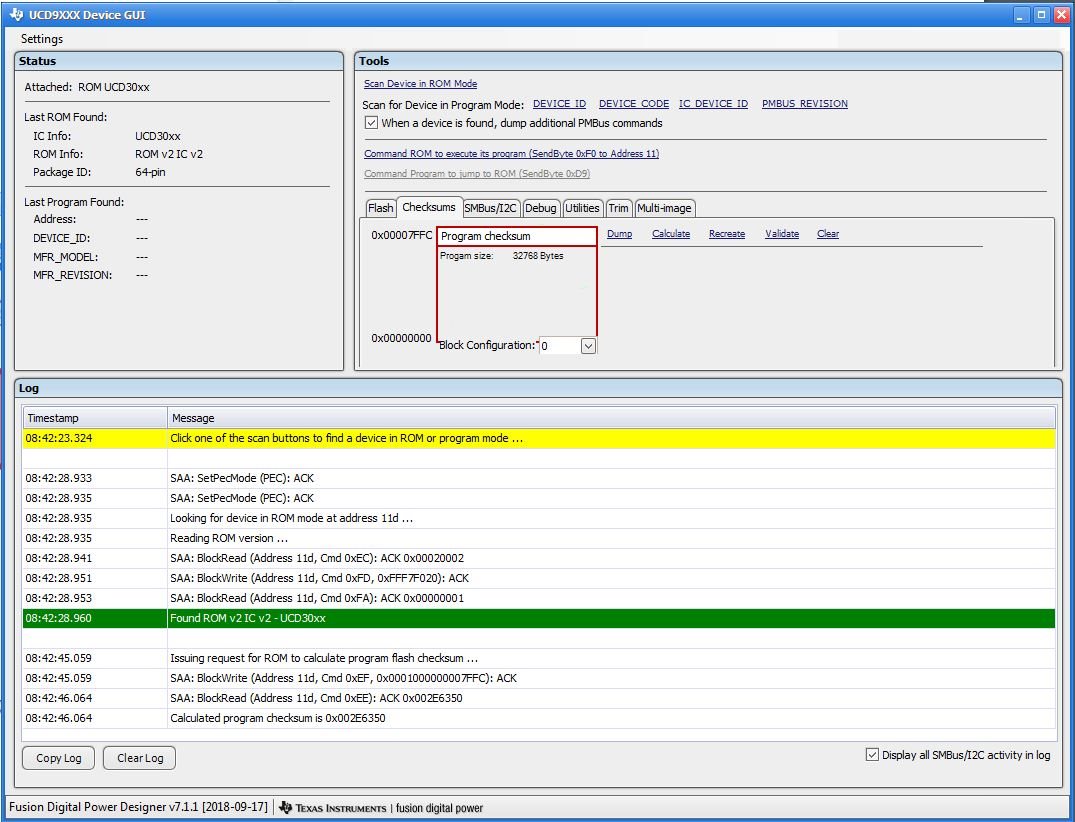

i'm attaching the GUI for further help.

As to what operation were made I don't know exactly, but someone got the board to this non-operating state by burning some wrong configuration file i guess.

thank you.

0 yihe over 6 years ago in reply to yuval dassa

TI__Guru 65610 points

Hello

Based on the snapshort, you have the checksum 0x002E6350. Could you please confirm whether you have device UCD90120A or UCD90124A? These are two different products.

Regards

Yihe

0 yuval dassa over 6 years ago in reply to yihe

Prodigy 110 points

i have the UCD90120A

0 yihe over 6 years ago in reply to yuval dassa

TI__Guru 65610 points

Hello

That's the werid. I would expect UCD90124A to see that checksum

Could you please contact your local TI sale representative so that we can futher help?

Regards

Yihe

0 yuval dassa over 6 years ago in reply to yihe

Prodigy 110 points

Sorry for the delay i had other task to attend.

I will contact my TI representative and get support or simply try to replace the chip, i'm using them in an xilinix ac701 board.

Regards,

Yuval
