TPS2373: The MPS duty-cycle Selection

chentsu chung

Mastermind 6180 points

Part Number: TPS2373

Hi,

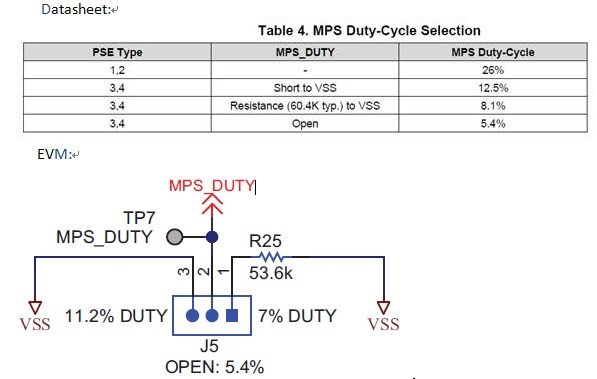

Please see the picture below:

1. the Duty and the resistor are different between TPS2373 datasheet and EVM, which one I should follow?

2. Is this typo? Or any reason?

Thanks,

C.T.

over 6 years ago

0 Thomas Amlee over 6 years ago

TI__Genius 9230 points

Hi CT,

I'm looking into it & will get back to you.

Thanks,
Tom Amlee
PoE PD Apps Engineer

0 Thomas Amlee over 6 years ago in reply to Thomas Amlee

TI__Genius 9230 points

Hi CT,

1. We recommend using 60.4kohms to attain 8.1% duty cycle, while 53.6k will result in 7% duty cycle. Shorting will result in 12.5% duty cycle.

2. These are typos that need to be corrected.

Thanks,
Tom Amlee
PoE PD Apps Engineer

0 Thomas Amlee over 6 years ago in reply to Thomas Amlee

TI__Genius 9230 points

Hi CT,

Have I given clarity to your issue? If not please let me know & I will be happy to continue providing support. Otherwise, I kindly ask you to click the green "resolved" button.

Thanks,
Tom Amlee
PoE PD Apps Engineer
