BQ24610: Input 19V, output only 0.8v, can not be charged

user4413695

Part Number: BQ24610

Dear all:

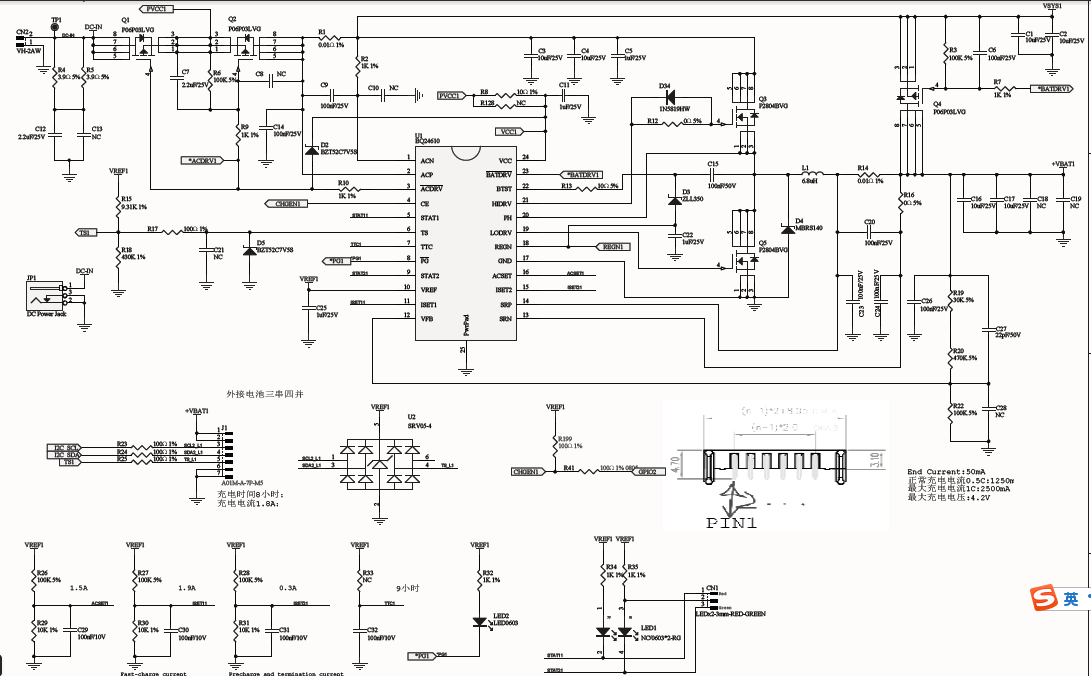

When I used BQ24610, I encountered a problem. I input 19V voltage with a voltage stabilizer, and only 0.8v voltage was measured at the output end.What might be the reason?Any Suggestions?

over 6 years ago

0 Paul Yeh over 6 years ago

TI__Genius 16175 points

Can you check IC's VCC, VREF and REGN voltage status? In general, if Vcc is above UVLO then ACFET/RBFET will be turn on then your 19V input should pass through to sys side.

Thanks

0 user4413695 over 6 years ago in reply to Paul Yeh

Prodigy 230 points

Hi

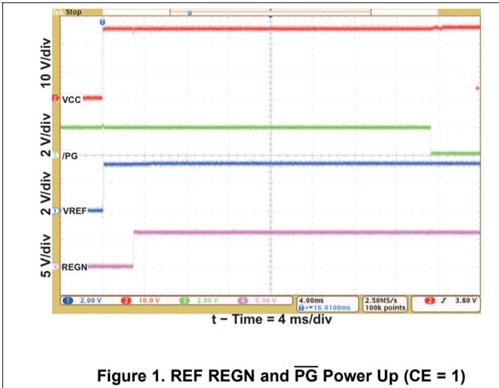

I'm putting in 18V input, no battery, no load.measured VCC=18.6V；PG=0；VREF=3V；REGN=5.6V and TS=1.4V。But the output is still only 0.8V

0 Joel Hernandez II over 6 years ago in reply to user4413695

TI__Mastermind 25800 points

Hello,

Can you measure the /ACDRV voltage and /BATDRV voltage as well?

Can you also tell us the state of STAT1 and STAT2?

Regards,
Joel H

0 user4413695 over 6 years ago in reply to Joel Hernandez II

Prodigy 230 points

Hi
I'm putting in 18V input, no battery, no load.measured VCC=17.4V；PG=0；VREF=3V；REGN=5.6V and TS=1.4V。But the output is still only 0.8V
And measured /ACDRV=12V; /BATDRV=17.4V; STAT1=0; STAT2=1.4V

0 user4413695 over 6 years ago in reply to Joel Hernandez II

Prodigy 230 points

Can you give me some advice?

0 user4413695 over 6 years ago in reply to Paul Yeh

Prodigy 230 points

0 Joel Hernandez II over 6 years ago in reply to user4413695

TI__Mastermind 25800 points

Hello,

Can you measure the voltage on the ACN or ACP pins?

Can you also take a waveform of the VSYS voltage in time. I want to see if there is some oscillation.
Please also capture the VSRN voltage on the charger, VBUS and VBAT.

Regards,
Joel H
