TPS23751: Resister position of MPS function

Satoshi
Guru 19645 points
Part Number: TPS23751

Please let me know about position of connect MPS resister (less than 26.3kΩ, parallel with 0.05μF).

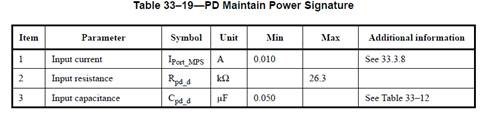

I guess primary side because 802.3at standard is described below;

I think that the other idea is connect load resister on secondary side and continuous 10mA, is it no correct?

Best regards,

Satoshi

  • 0
    TI__Genius 9230 points

    Hi Satoshi,

    Please see the circuit we propose in section 3.6 of our adapter OR-ing app note (http://www.ti.com/lit/an/slva306a/slva306a.pdf). The zener diode prevents the dummy resistor from spoiling detection & classification.

    Regards,
    Tom Amlee
    PoE PD Apps Engineer

  • 0 in reply to Thomas Amlee
    TI__Genius 9230 points
    Hi Satoshi,

    Was the example I provided effective for you design need? Please let me know. If not, I will be happy to continue providing support. Otherwise, I kindly ask you to click the green "resolved" button.

    Regards,
    Tom Amlee
    PoE PD Apps Engineer
