LM5051: PCB design guide line

prarinya Maneechompoo

Intellectual 540 points

Part Number: LM5051

Hi ALL

Pls help to suggest PCB design guide line of LM5051 .

Thank you so much & bestregard

Prarinya

over 6 years ago

0 Karikalan Selvaraj over 6 years ago

TI__Genius 16305 points

Hi

Layout example is missing in LM5051 datasheet, but recommended layout is shown in LM5051 EVM.

Let us know if you need a better layout picture/ or explanation other than mentioned in EVM.

Regards,
Kari.

0 prarinya Maneechompoo over 6 years ago in reply to Karikalan Selvaraj

Intellectual 540 points

Hi Kari

Thank you for your help .

Pls help , I need a better layout picture /or explanation other than EVM .

Bestregard

Prarinya

0 Karikalan Selvaraj over 6 years ago in reply to prarinya Maneechompoo

TI__Genius 16305 points

Hi Prarinya,

I am working on getting you the PCB layout recommendation based on EVM.
Let me get back this week on this.

Let me know if you looking for a quick response.

Regards,
Kari.

0 Karikalan Selvaraj over 6 years ago in reply to Karikalan Selvaraj

TI__Genius 16305 points

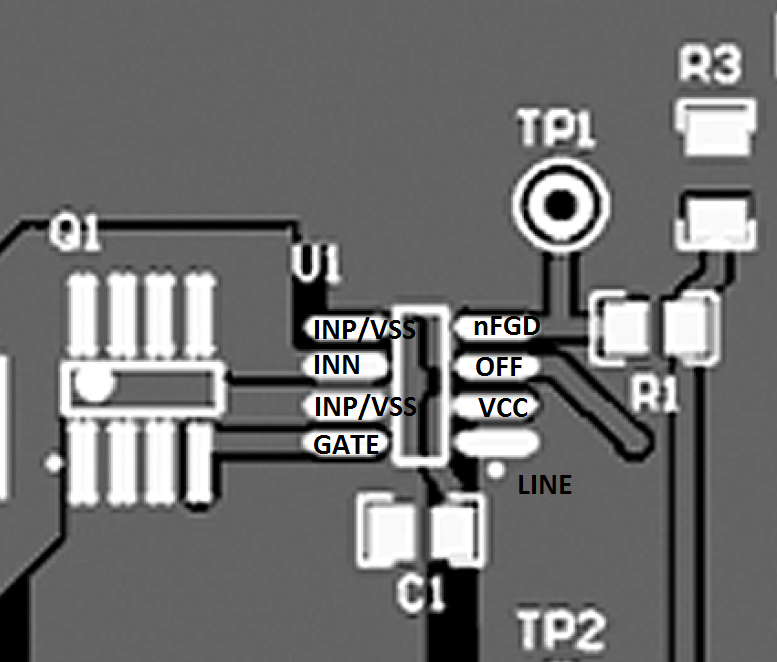

Please refer to the attached PCB Layout picture.

If you think this has answered your question, please click "this resolved my issue button".

Regards,

Kari.
