TPS61232: BOOST DESIGN FOR Li-Ion BATTERY

Monisha om

Part Number: TPS61232

Hello Sir,

I am using TPS61232 boost converter in my new design. I need 5v boosted output from li ion battery and a load sharing circuit.

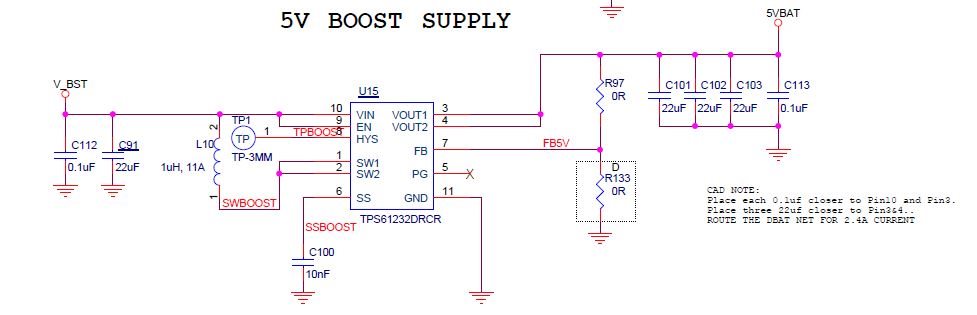

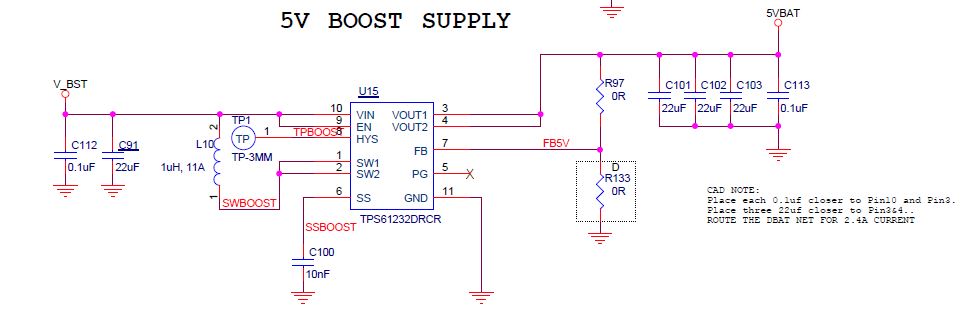

Please check my schematics and kindly comment on it.

over 6 years ago

0 Zack Liu over 6 years ago

TI__Mastermind 34231 points

Hi Monisha,

What's the maximum load current? In your schematic, I didn't find load sharing circuit.
Do you have any concern on HYS because you put a TP1 on this pin.

0 Jing Ji over 6 years ago

TI__Intellectual 2655 points

Hi Monisha,
You should use: R97=402k R133=100k.

0 Monisha om over 6 years ago in reply to Jing Ji

Prodigy 130 points

Hello Jing Ji,
Iam using fixed 5V boost converter, thats why I connect VFB directly to VOUT.
Is the value for resistor required?

Warm regards,
Monisha OM

0 Monisha om over 6 years ago in reply to Zack Liu

Prodigy 130 points

Hello Zack Liu,

Maximum load current is 2A.The output of load sharing is given to input of boost converter.Here i only attached the boost converter schematics.
TP1 is provided on Hys for any future use.

Regards,
Monisha OM

0 Zack Liu over 6 years ago in reply to Monisha om

TI__Mastermind 34231 points

Hi Monisha,

TPS61232 could deliver output current up to 2.1A at 5V output voltage with 3.3V input voltage. What's minimum voltage of the li ion battery you are using now?
If you want to use HYS as undervoltage lockout, please refer to part 8.3.4 circuitary.

Power management

Power management forum

TPS61232: BOOST DESIGN FOR Li-Ion BATTERY
