UCD3138: there is fault on Fusion Digital Power Designer

Max Han
Intellectual 2260 points
Part Number: UCD3138

Hi

i have asked customer to install a new version Fusion Digital Power Designer, but this fault still appears.

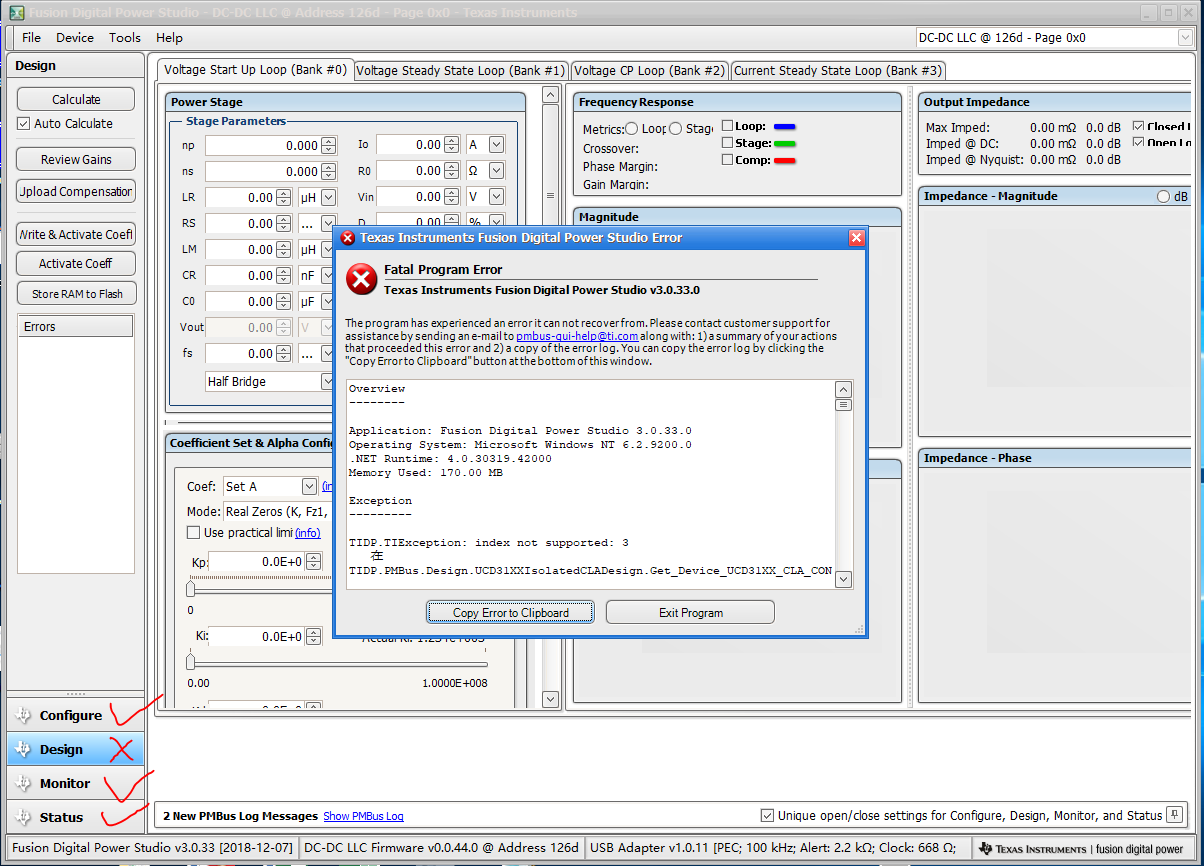

when customer click  "Design" button, the fault will appears, which is shown as below.

why?

thanks.

  • 0
    Prodigy 30 points

    To Who will read this:

    There is a error log file about the problem above, I hope it can help to find the solution.Thanks!

    Fullscreen TI_error_log.txt Download
    Overview
--------

Application: Fusion Digital Power Studio 3.0.33.0
Operating System: Microsoft Windows NT 6.2.9200.0
.NET Runtime: 4.0.30319.42000
Memory Used: 170.00 MB

Exception
---------

TIDP.TIException: index not supported: 3
   �� TIDP.PMBus.Design.UCD31XXIsolatedCLADesign.Get_Device_UCD31XX_CLA_CONFIG(PMBusDevice device, Int32 index)
   �� TIDP.PMBus.Design.UCD31XXIsolatedCLADesign.Reset_Compensator_To_Device_Values(PMBusDevice device, Int32 bank_index)
   �� TIDP.WinForms.Apps.DPGUI.UCD31XXIsolatedDesignTaskConfigControl.Create_Design_Data_Prefs_Engines()
   �� TIDP.WinForms.Apps.DPGUI.DesignTaskConfigControl.c()
   �� TIDP.WinForms.Apps.DPGUI.DesignTaskConfigControl.CLA_Tab_Changed()
   �� TIDP.WinForms.Apps.DPGUI.DesignTaskControl.OnLoad(EventArgs e)
   �� System.Windows.Forms.Control.CreateControl(Boolean fIgnoreVisible)
   �� System.Windows.Forms.Control.CreateControl()
   �� System.Windows.Forms.Control.ControlCollection.Add(Control value)
   �� TIDP.WinForms.Apps.DPGUI.DeviceControlDockedContainer.Task_Or_Device_Updated(NavTask task)
   �� TIDP.WinForms.Apps.DPGUI.DeviceControl.a(Boolean A_0)
   �� TIDP.WinForms.Apps.DPGUI.DeviceControl.a(TaskMode A_0)
   �� TIDP.WinForms.Apps.DPGUI.DeviceControl.a(Object A_0, NavBarGroupEventArgs A_1)
   �� DevExpress.XtraNavBar.NavBarControl.RaiseGroupEvent(Object linkEvent, NavBarGroup group)
   �� TIDP.WinForms.Controls.TINavBarControl.a(Object A_0, MouseEventArgs A_1)
   �� System.Windows.Forms.Control.OnMouseUp(MouseEventArgs e)
   �� DevExpress.XtraNavBar.NavBarControl.OnMouseUp(MouseEventArgs ev)
   �� System.Windows.Forms.Control.WmMouseUp(Message& m, MouseButtons button, Int32 clicks)
   �� System.Windows.Forms.Control.WndProc(Message& m)
   �� DevExpress.XtraNavBar.NavBarControl.WndProc(Message& m)
   �� System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)

Loaded Assemblies
-----------------

Accessibility
   Version: 4.0.0.0
   Info Version:
4.7.2046.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/Accessibility/v4.0_4.0.0.0__b03f5f7f11d50a3a/Accessibility.dll
   Public Key Token: B03F5F7F11D50A3A
DevExpress.Data.v6.2
   Version: 6.2.10.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.Data.v6.2.DLL
   Public Key Token: 79868B8147B5EAE4
DevExpress.Utils.v6.2
   Version: 6.2.10.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.Utils.v6.2.DLL
   Public Key Token: 79868B8147B5EAE4
DevExpress.XtraBars.v6.2
   Version: 6.2.10.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraBars.v6.2.DLL
   Public Key Token: 79868B8147B5EAE4
DevExpress.XtraEditors.v6.2
   Version: 6.2.10.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraEditors.v6.2.DLL
   Public Key Token: 79868B8147B5EAE4
DevExpress.XtraGrid.v6.2
   Version: 6.2.10.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraGrid.v6.2.DLL
   Public Key Token: 79868B8147B5EAE4
DevExpress.XtraNavBar.v6.2
   Version: 6.2.10.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraNavBar.v6.2.DLL
   Public Key Token: 79868B8147B5EAE4
DundasWinChart
   Version: 7.1.0.1810
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DundasWinChart.DLL
   Public Key Token: A4C03DCE5DB22406
Free.CommandLine
   Version: 3.0.8.30341
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.CommandLine.DLL
   Public Key Token:
Free.Hid
   Version: 3.0.8.30342
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.Hid.DLL
   Public Key Token:
Free.Misc
   Version: 3.0.8.30341
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.Misc.DLL
   Public Key Token:
Free.WinForms.Misc
   Version: 2.0.88.30342
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.WinForms.Misc.DLL
   Public Key Token:
Fusion Digital Power Studio
   Version: 3.0.33.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Fusion Digital Power Studio.exe
   Public Key Token:
Microsoft.GeneratedCode
   Version: 1.0.0.0
   Info Version:
<empty>
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
   Public Key Token:
Microsoft.mshtml
   Version: 7.0.3300.0
   Info Version:
<empty>
   Location: file:///C:/Windows/assembly/GAC/Microsoft.mshtml/7.0.3300.0__b03f5f7f11d50a3a/Microsoft.mshtml.dll
   Public Key Token: B03F5F7F11D50A3A
mscorlib
   Version: 4.0.0.0
   Info Version:
4.7.3163.0
   Location: file:///C:/Windows/Microsoft.NET/Framework64/v4.0.30319/mscorlib.dll
   Public Key Token: B77A5C561934E089
mscorlib.resources
   Version: 4.0.0.0
   Info Version:
<empty>
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/mscorlib.resources/v4.0_4.0.0.0_zh-Hans_b77a5c561934e089/mscorlib.resources.dll
   Public Key Token: B77A5C561934E089
System
   Version: 4.0.0.0
   Info Version:
4.7.3151.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System/v4.0_4.0.0.0__b77a5c561934e089/System.dll
   Public Key Token: B77A5C561934E089
System.Configuration
   Version: 4.0.0.0
   Info Version:
4.7.2046.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Configuration/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll
   Public Key Token: B03F5F7F11D50A3A
System.Core
   Version: 4.0.0.0
   Info Version:
4.7.3163.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Core/v4.0_4.0.0.0__b77a5c561934e089/System.Core.dll
   Public Key Token: B77A5C561934E089
System.Data
   Version: 4.0.0.0
   Info Version:
4.7.3163.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_64/System.Data/v4.0_4.0.0.0__b77a5c561934e089/System.Data.dll
   Public Key Token: B77A5C561934E089
System.Drawing
   Version: 4.0.0.0
   Info Version:
4.7.2046.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Drawing/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll
   Public Key Token: B03F5F7F11D50A3A
System.Numerics
   Version: 4.0.0.0
   Info Version:
4.7.2046.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Numerics/v4.0_4.0.0.0__b77a5c561934e089/System.Numerics.dll
   Public Key Token: B77A5C561934E089
System.resources
   Version: 4.0.0.0
   Info Version:
<empty>
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.resources/v4.0_4.0.0.0_zh-Hans_b77a5c561934e089/System.resources.dll
   Public Key Token: B77A5C561934E089
System.Windows.Forms
   Version: 4.0.0.0
   Info Version:
4.7.2110.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms/v4.0_4.0.0.0__b77a5c561934e089/System.Windows.Forms.dll
   Public Key Token: B77A5C561934E089
System.Windows.Forms.DataVisualization
   Version: 4.0.0.0
   Info Version:
4.7.2046.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms.DataVisualization/v4.0_4.0.0.0__31bf3856ad364e35/System.Windows.Forms.DataVisualization.dll
   Public Key Token: 31BF3856AD364E35
System.Windows.Forms.DataVisualization.resources
   Version: 4.0.0.0
   Info Version:
<empty>
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms.DataVisualization.resources/v4.0_4.0.0.0_zh-Hans_31bf3856ad364e35/System.Windows.Forms.DataVisualization.resources.dll
   Public Key Token: 31BF3856AD364E35
System.Windows.Forms.resources
   Version: 4.0.0.0
   Info Version:
<empty>
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms.resources/v4.0_4.0.0.0_zh-Hans_b77a5c561934e089/System.Windows.Forms.resources.dll
   Public Key Token: B77A5C561934E089
System.Xml
   Version: 4.0.0.0
   Info Version:
4.7.2612.0
   Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
   Public Key Token: B77A5C561934E089
TIDP.DevEx.Skin1
   Version: 1.0.0.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.DevEx.Skin1.DLL
   Public Key Token: 95FC6C5621878F0A
TIDP.Misc
   Version: 3.0.8.30342
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.Misc.DLL
   Public Key Token:
TIDP.Net.ProxyPrefs
   Version: 1.4.0.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.Net.ProxyPrefs.DLL
   Public Key Token:
TIDP.PMBus
   Version: 3.0.8.30344
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.PMBus.DLL
   Public Key Token:
TIDP.PMBus.DeviceGUI.UCD3000
   Version: 1.9.63.30354
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.PMBus.DeviceGUI.UCD3000.DLL
   Public Key Token:
TIDP.PMBus.WinForms
   Version: 2.0.88.30353
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.PMBus.WinForms.DLL
   Public Key Token:
TIDP.SAA
   Version: 3.0.8.30343
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.SAA.DLL
   Public Key Token:
TIDP.SAA.WinForms.Misc
   Version: 2.0.88.30350
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.SAA.WinForms.Misc.DLL
   Public Key Token:
TIDP.WinForms.Apps.DPGUI
   Version: 1.9.63.30355
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Apps.DPGUI.DLL
   Public Key Token:
TIDP.WinForms.Apps.DPGUI.DPGUI1
   Version: 1.9.63.30357
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Apps.DPGUI.DPGUI1.DLL
   Public Key Token:
TIDP.WinForms.Apps.DPGUI.HelpCenter
   Version: 1.9.63.30343
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Apps.DPGUI.HelpCenter.DLL
   Public Key Token:
TIDP.WinForms.Misc
   Version: 2.0.88.30343
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Misc.DLL
   Public Key Token:
TIDP.WinForms.Util
   Version: 3.0.8.30343
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Util.DLL
   Public Key Token:
XtraDataTempAssembly
   Version: 0.0.0.0
   Info Version:
<empty>
   Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.Data.v6.2.dll
   Public Key Token:


  • 0 in reply to Leo_stone
    TI__Expert 4070 points
    Is this an EVM firmare or customer implementation?
  • 0 in reply to Amiel Hussain
    Prodigy 30 points

    Amie,Thanks for your reply!  It is a product on selling now.  Our engineer didn't use "Designer GUI" before,I just found "Fusion studio" have this designer GUI recently,so I tried to use it.

  • 0 in reply to Leo_stone
    TI__Expert 4070 points

    The Fusion Studio in design mode is meant for EVM firmware as it assumes certain PMBus commands and loop configuration based on the pmbus setup id command.  Usually has something live "VERSION | LLC001".  If the firmware has changed from the EVM firmware then the design mode may not be supported properly, which is why the problem has happened.

  • 0 in reply to Amiel Hussain
    Prodigy 30 points
    Oh,I see! Thank you! Then,if I want know more the use of the designer GUI, is there any detail instruction on the internet? Can you provide a link? Or anyway else? Thanks again.
  • 0 in reply to Leo_stone
    TI__Expert 4070 points

    You can take a look at the user guide () and see the design section. You can also use offline mode with a topology to see what is shown in the "Design" tab.
