UCC28C43: Errors in UCCx8C43 Unencrypted PSpice Transient Model (date 18 Feb 2016)

Daniel Frund

Prodigy 10 points

Part Number: UCC28C43

Hello,

UCCx8C43 Unencrypted PSpice Transient Model (date 18 Feb 2016) does not work and may contain errors.

For instance voltage source V3 in the path of VREF does not have a specified voltage (V3 13 10).

We have bee running Tina simulations but we do need to run other spice based simulations.

Could you please provide us a better unencrypted model?

over 6 years ago

0 Teng Feng over 6 years ago

TI__Genius 13660 points

Hi Daniel,

Thanks for bringing this to our attention, I have asked one of modelling team to help with your request.

Regards,
Teng

0 Arpan Gupta over 6 years ago

TI__Expert 3140 points

Hi Daniel,

We have simulated the released project with unencrypted .LIB file in PSpice(version 16.2.0.s003) and observed that it simulates fine. Below is the simulation result.

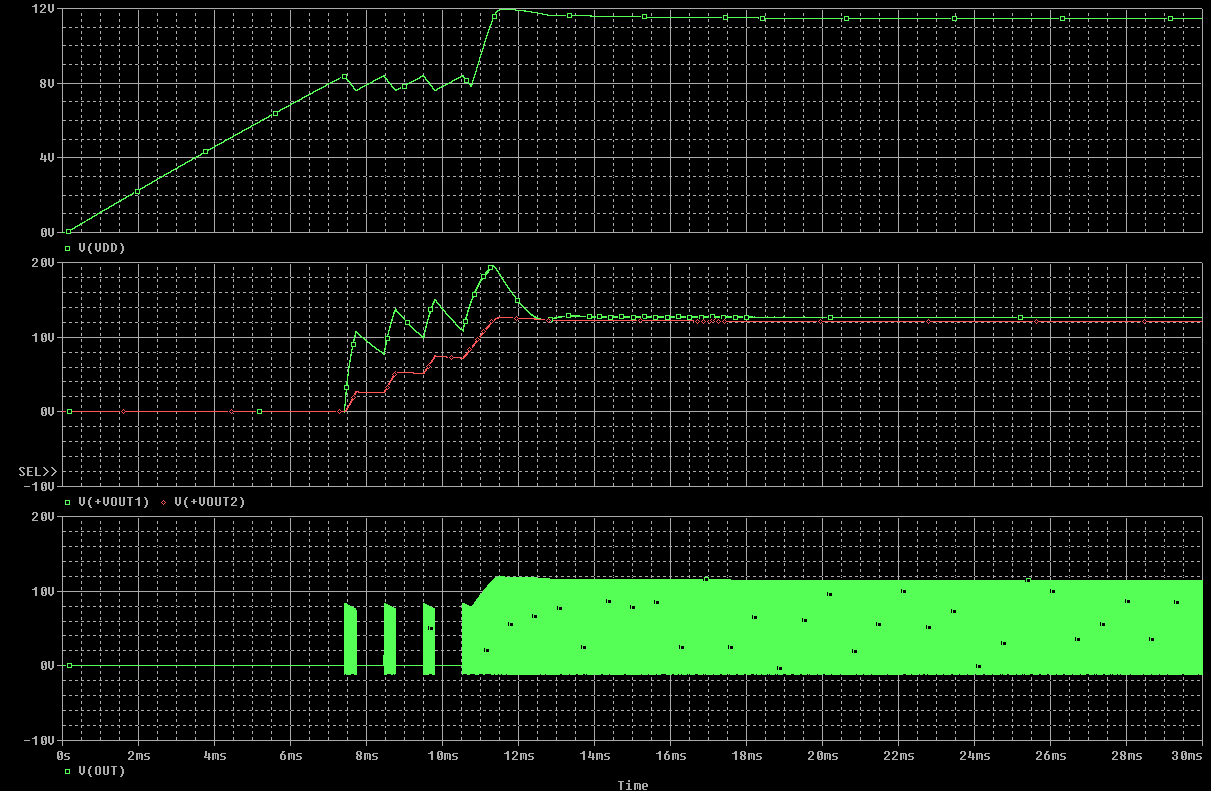

Simulation result:

Kindly make sure that you are using licensed PSpice versions 15.7 and up.

Thanks & Regards,

Arpan Gupta
