TPS7A7002: IC footprint

Jason Dai
Expert 3720 points
Part Number: TPS7A7002

Dear E2E,

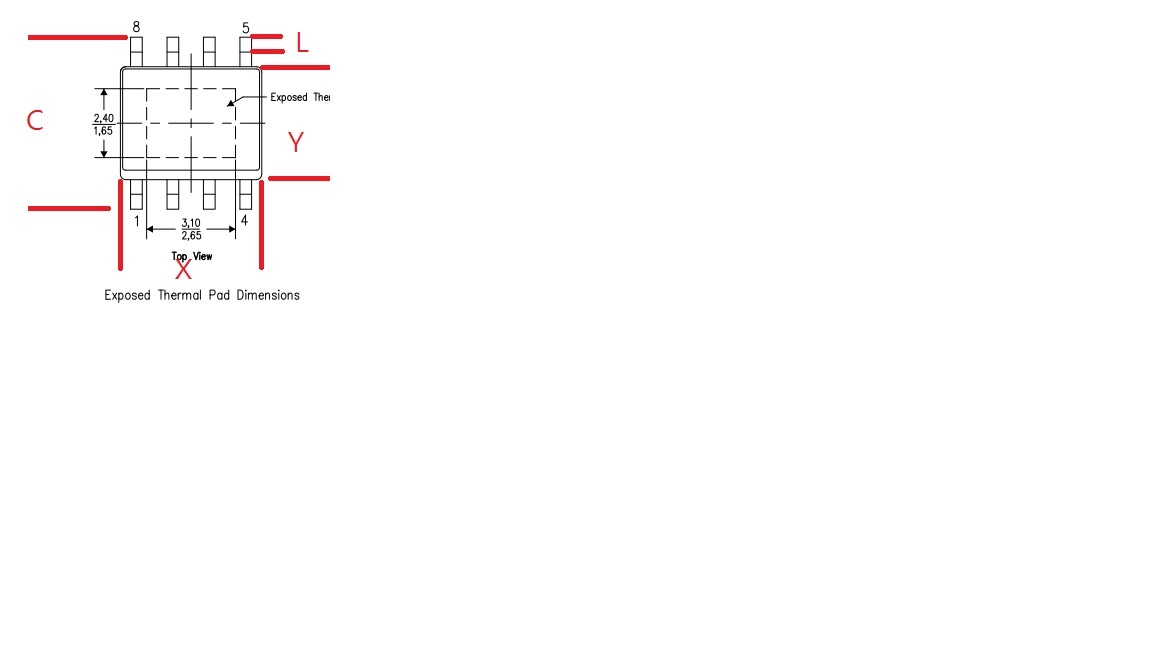

please provide TPS7A7002 footprint. datahseet doesn't spcific show the detail size.

BR,

Jason

  • 0
    TI__Guru 55940 points

    Hi Jason,

    Thank you for pointing out that one of the mechanical drawing pages is missing.  We are working on re-attaching that drawing.  In the meantime please find the drawing attached here:

    TPS7A7002 Mechanical.pdf

    I would also like to take this opportunity to mention that we have CAD/CAE symbols available for this device on the Quality & packaging tab of the product folder:



    Very Respectfully,

    Ryan
