TINA/Spice/LM5155: LM5155-Q1 PSPICE cannot import into TINA

Wei-Hao Chen (TW-FAE)

Part Number: LM5155
Other Parts Discussed in Thread: TINA-TI,

Tool/software: TINA-TI or Spice Models

Hi team,

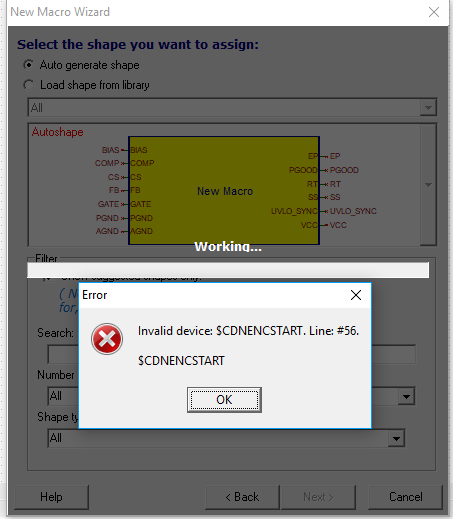

I found an issue where I cannot import the LM5155 PSPICE model into TINA, it showed this error message while build the device block:

Would you please check on this and provide the LM5155 simulation file in TINA .tsc format.

Many thanks.

Best Regards,

Wei-Hao

over 6 years ago

0 Youhao Xi over 6 years ago

TI__Guru* 78070 points

Hi Wei-Hao,

Sorry to hear. We need to forward this to our modeling group expert. Please hold on.

Thanks,
Youhao

0 Nikhil Gupta (Product Folder Models) over 6 years ago in reply to Youhao Xi

TI__Mastermind 39210 points

Hi Wei-Hao,

Kindly refer to these FAQ's post for more information about your issue and the solution: e2e.ti.com/.../692613

0 Wei-Hao Chen (TW-FAE) over 6 years ago in reply to Nikhil Gupta (Product Folder Models)

TI__Expert 3260 points

Hi Gupta,

I tried to fix syntax incompatibility by removing the PARAMS but still showed the same error. Can you tell me more specifically which part of the code do i need to fix in order to import it into TINA? Can you please check on this?

Thanks.

Best Regards,
Wei-Hao

0 Arpan Gupta over 6 years ago in reply to Wei-Hao Chen (TW-FAE)

TI__Expert 3140 points

Hi Wei-Hao,

As you are internal to TI, I will contact you via email. I am closing the thread here.

Thanks & Regards,
Arpan Gupta
