CCS/BQ76PL455A: bq76pl455a ccs code

Enes Malik Yorulmaz

Part Number: BQ76PL455A
Other Parts Discussed in Thread: TMS570LS0432

Tool/software: Code Composer Studio

Hi everyone,

I'm using bq76pl455a for battery monitoring system with 6 series li-on battery.

And I bought tms570ls0432 for its software, I just want to use its recomended software but I'am getting this define error "int nSent"

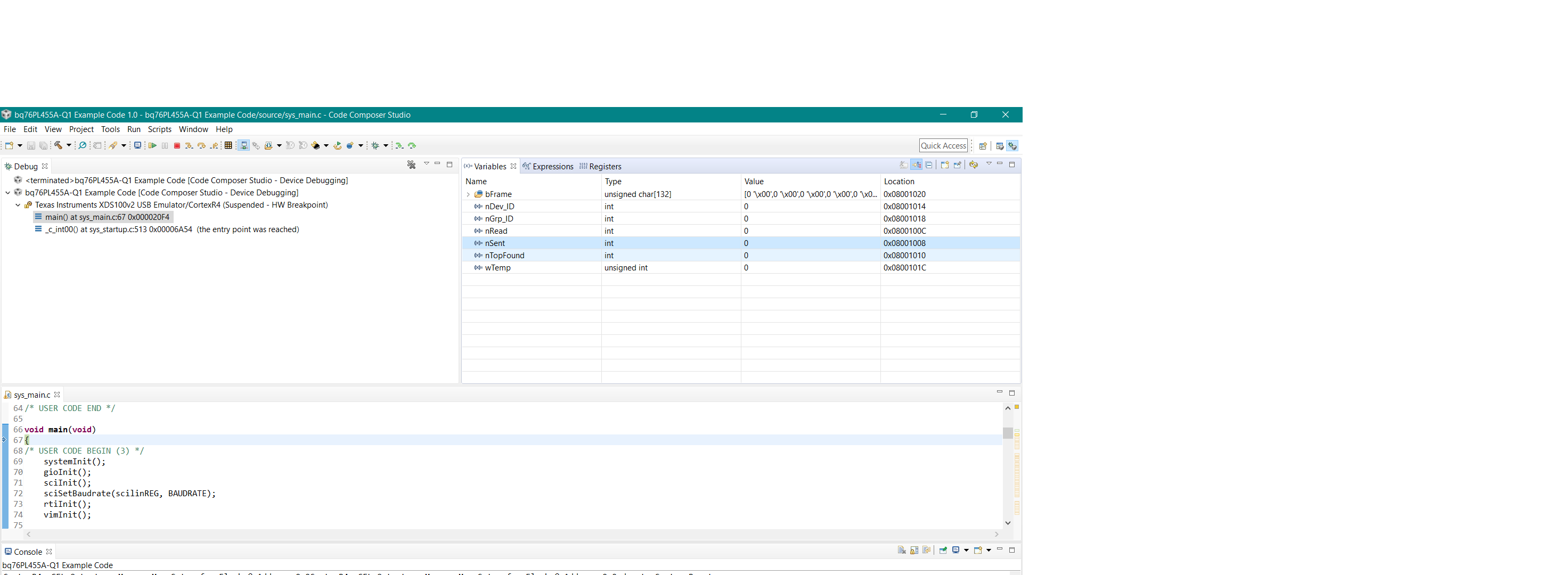

I also adding this error page as a screenshot below the text,

Can anybody help me,

over 6 years ago

0 Taylor Vogt over 6 years ago

TI__Genius 17370 points

Hi Enes,

Sorry for the issues, however in the screenshot you sent I cannot see the console menu displayed so it is difficult to understand the error. Can you reattach the full image and confirm you have made no changes to the example code?

Thanks,

Taylor

0 Enes Malik Yorulmaz over 6 years ago in reply to Taylor Vogt

Prodigy 210 points

I installed the code. but the voltage and temperature values come in hex. How can I translate them?

0 Taylor Vogt over 6 years ago in reply to Enes Malik Yorulmaz

TI__Genius 17370 points

Hi Enes,

The information for converting values is located in the datasheet pg. 27 starting on section 7.3.3.4 VSENSE Input Channels.

Regards,

Taylor

0 Enes Malik Yorulmaz over 6 years ago in reply to Taylor Vogt

Prodigy 210 points

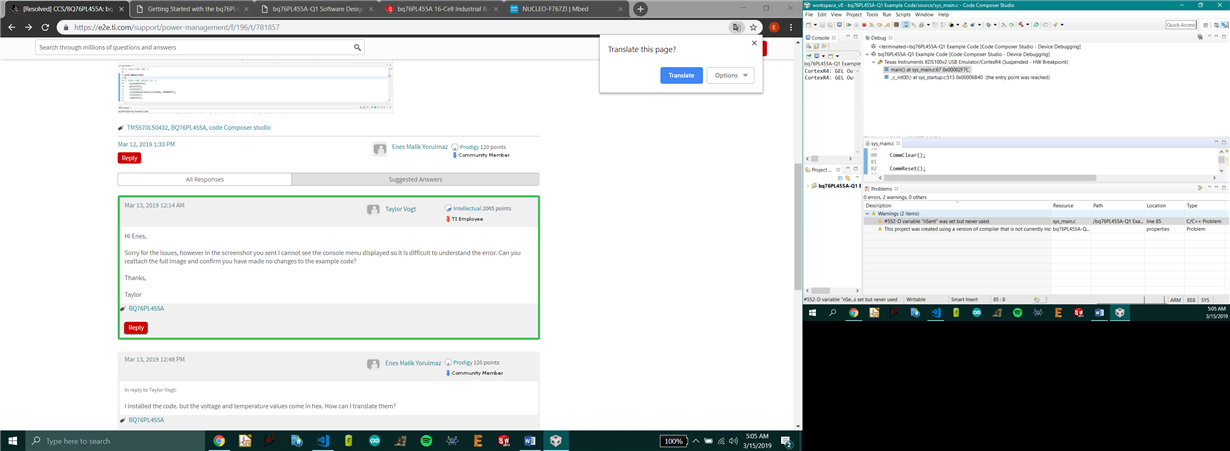

error

0 Taylor Vogt over 6 years ago in reply to Enes Malik Yorulmaz

TI__Genius 17370 points

Hi Enes,

This is not an error, this is just a warning letting you know that the variable nSent is not being used. If you want to understand this more you can visit the code composer studio wiki/forums but you can ignore this warning for the purposes of your testing.

Best Regards,

Taylor

0 Enes Malik Yorulmaz over 6 years ago in reply to Taylor Vogt

Prodigy 210 points

Hi Taylor,
OK. problem solved. but I need to print the voltages on the screen. but how do I add a code?

0 Vince over 6 years ago in reply to Enes Malik Yorulmaz

TI__Mastermind 19795 points

Hi Enes,

Please check section 7.3.3.4 (VSENSE Input Channels) of the Datasheet for info on how to convert raw data bytes to voltages from the registers.

"VCELL = [(2 × VREF) / 65535] × READ_ADC_VALUE"

The result of this conversion can then be printed to the console using a printf() statement.

Please let us know if this solves your issue!

Regards,

Vince
