Dear TI Engineer,
We are using BQ27542-G1 chip and BQ studio for battery Chem ID selection which customized by ATL company. I performed a data collection followed by the GPC instruction and uploaded data to the TI data upload website. I have 2 questions about the GPC report from TI by email.
1. Are these Chem ID listed from all existing fuel gauge chips chemistry, but not only one chip? Can I just use one of the IDs directly for my new battery?

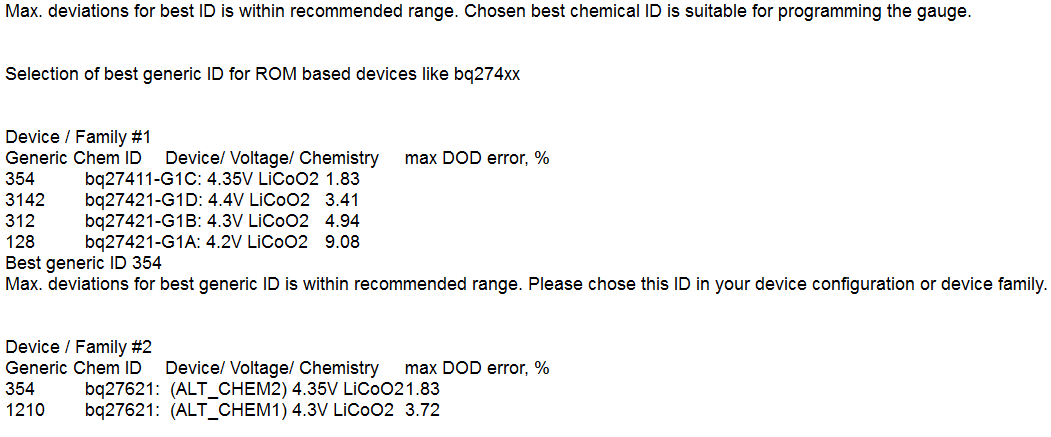

2. Below fuel gauge is just an example to tell me how to choose best chem ID, is that right? For Example, I see the ID 3640 in the recommend list in the GPC report, so, I can use BQ27542-G1 with the Chem ID 3640 as my new battery ID?

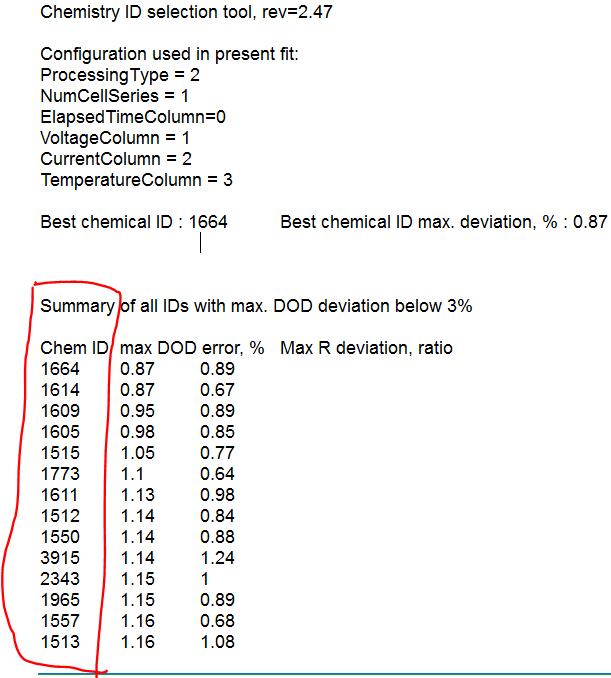

Chemistry ID selection tool, rev=2.47 Configuration used in present fit: ProcessingType = 2 NumCellSeries = 1 ElapsedTimeColumn=0 VoltageColumn = 1 CurrentColumn = 2 TemperatureColumn = 3 Best chemical ID : 1664 Best chemical ID max. deviation, % : 0.87 Summary of all IDs with max. DOD deviation below 3% Chem ID max DOD error, % Max R deviation, ratio 1664 0.87 0.89 1614 0.87 0.67 1609 0.95 0.89 1605 0.98 0.85 1515 1.05 0.77 1773 1.1 0.64 1611 1.13 0.98 1512 1.14 0.84 1550 1.14 0.88 3915 1.14 1.24 2343 1.15 1 1965 1.15 0.89 1557 1.16 0.68 1513 1.16 1.08 2275 1.17 1.1 3871 1.18 1.14 3640 1.19 1.04 1428 1.19 0.74 1425 1.19 0.76 1562 1.2 0.79 1514 1.2 0.87 1538 1.21 1.17 2325 1.21 0.51 3905 1.21 0.93 1573 1.22 0.8 1759 1.23 0.75 3695 1.23 1.2 1549 1.24 0.78 1993 1.25 1.6 1841 1.25 0.69 3855 1.25 0.99 1410 1.26 1.28 2338 1.27 0.83 1969 1.27 1.22 2205 1.27 0.81 1569 1.28 0.62 3663 1.28 1.04 1534 1.28 1.05 1621 1.29 1.64 1486 1.29 1.3 2376 1.29 1.42 1987 1.29 1.73 1640 1.3 1.23 2267 1.3 1.17 1655 1.31 1.2 1971 1.31 1.41 3726 1.31 1.03 2368 1.32 1.17 2233 1.32 1.36 1734 1.33 0.91 1831 1.33 0.91 1546 1.33 1.41 367 1.34 1.35 2206 1.34 1.21 1748 1.35 1.15 3801 1.35 1.31 3923 1.35 1.84 2287 1.35 1.86 2411 1.36 1.46 1642 1.36 1.41 1651 1.36 1.41 3802 1.36 1.48 3860 1.36 1.58 2273 1.36 1.27 1615 1.36 0.68 1699 1.37 1.36 1688 1.37 0.75 3879 1.37 1.19 1601 1.37 1.5 1584 1.37 0.75 2186 1.38 1.61 1959 1.38 0.6 2320 1.38 1.58 2175 1.38 1.6 3998 1.38 1.52 1988 1.39 1.24 1723 1.39 1.99 3392 1.39 1.79 1523 1.39 1.18 1407 1.4 1.21 1509 1.4 1.65 3820 1.4 1.38 3858 1.4 1.74 3921 1.4 1.46 3351 1.41 1.89 2332 1.41 1.08 1386 1.41 1.36 2342 1.41 0.88 1924 1.41 0.85 2184 1.41 1.28 1749 1.41 1.04 2366 1.41 1.99 3632 1.41 1.54 2328 1.41 1.12 1501 1.41 1.56 3965 1.42 1.34 1663 1.42 1.91 1937 1.42 1.94 1958 1.42 1.3 2190 1.42 1.88 2323 1.42 1.84 3440 1.43 1.17 1736 1.43 1.33 1822 1.43 1.79 2409 1.43 1.27 2181 1.43 1.59 1639 1.43 1.4 2179 1.43 1.41 2406 1.43 1.13 2251 1.43 1.39 2266 1.44 1.75 3958 1.44 1.35 1979 1.44 1.41 3977 1.44 1.95 3993 1.44 1.39 1836 1.44 1.44 1929 1.44 1.68 1796 1.44 0.81 1657 1.44 1.35 3869 1.45 1.42 3976 1.45 0.9 2232 1.45 1.05 3742 1.45 1.09 3854 1.46 1.53 3793 1.46 1.42 1415 1.46 1.91 1962 1.46 1.7 2202 1.46 1.85 1706 1.46 1.42 1955 1.46 1.66 2218 1.46 1.43 3595 1.46 1.71 3829 1.47 1.12 1540 1.47 1.6 1585 1.47 0.93 1834 1.47 1.36 2398 1.48 1.09 2243 1.48 1.83 3934 1.48 1.14 2382 1.48 1.34 2174 1.48 1.03 3706 1.48 1.9 1481 1.48 1.36 3642 1.48 1.76 1506 1.48 1.23 1508 1.49 0.98 1408 1.49 1.28 1453 1.49 1.6 1524 1.49 1.65 1703 1.49 1.86 3818 1.49 1.89 3877 1.49 1.15 1746 1.49 1.76 3961 1.49 1.27 2164 1.49 1.71 1689 1.5 1.71 3831 1.5 0.98 2214 1.5 1.2 1888 1.5 0.64 3924 1.5 1.84 1668 1.5 0.74 1956 1.5 1.84 2215 1.5 0.86 1490 1.5 1.51 3263 1.5 1.56 1445 1.5 1.46 3794 1.5 1.27 1421 1.5 1.94 3841 1.5 1.27 1760 1.51 1.3 3728 1.51 1.26 2223 1.51 0.91 1499 1.52 1.39 1599 1.52 1.59 1972 1.52 1.83 1504 1.52 0.79 2276 1.52 1.99 1411 1.52 1.7 1666 1.52 0.49 2363 1.52 1.86 1978 1.53 1.37 1607 1.53 0.99 1881 1.53 1.45 1648 1.53 1.15 2231 1.53 1.47 3505 1.53 1.98 3925 1.53 1.44 2260 1.53 1.58 3586 1.54 1.1 3953 1.54 0.95 3906 1.54 1.99 2319 1.54 1.33 2293 1.54 1.6 3987 1.55 1.69 1926 1.55 0.97 1907 1.55 0.7 1426 1.55 1.73 3654 1.56 0.98 3625 1.56 1.43 1658 1.56 1.2 2365 1.56 1.21 2297 1.56 1.02 1446 1.56 1.48 1861 1.56 1.11 1992 1.56 1.53 3558 1.57 1.2 3973 1.57 1.44 1634 1.57 1.25 3844 1.57 1.47 1989 1.57 1.03 2234 1.58 2 3775 1.58 2 1672 1.58 1.23 2185 1.58 1.94 1852 1.58 1.16 3665 1.59 1.94 1616 1.59 1.39 2381 1.59 1.69 3127 1.59 1.76 1872 1.59 1.05 1806 1.59 1.41 3997 1.59 1.22 2176 1.6 0.79 2189 1.6 1.61 3904 1.6 1.44 1873 1.6 1.17 1543 1.6 1.74 1853 1.6 0.82 3812 1.6 1.17 2397 1.6 1.7 1885 1.61 1.65 1809 1.61 0.74 1865 1.61 0.82 1921 1.61 1.89 3810 1.61 1.59 3930 1.62 1.42 3531 1.62 0.97 1649 1.62 1.14 2330 1.62 1.77 3928 1.63 1.3 2201 1.63 0.57 1679 1.63 1.52 3666 1.63 1.97 3494 1.63 1.88 2296 1.63 1.74 3549 1.63 1.73 2306 1.63 1.17 1632 1.64 1.93 3989 1.64 1.58 1717 1.64 1.27 3647 1.65 1.11 3918 1.65 1.71 1829 1.65 1.02 3937 1.65 1.39 1586 1.65 0.96 2377 1.65 1.32 1743 1.65 1.71 3655 1.65 1.37 3124 1.66 0.94 1811 1.66 1.04 1909 1.66 1.08 1435 1.66 1.87 1638 1.66 1.03 3890 1.66 1.89 3949 1.67 1.9 2239 1.67 1.9 3239 1.67 1.78 1757 1.67 1.57 1845 1.69 1.82 1828 1.69 1.08 1919 1.69 1.36 1604 1.69 0.75 2367 1.69 0.66 1769 1.7 1.94 2173 1.7 1.35 3633 1.7 1.23 1776 1.7 1.6 1936 1.7 1.8 3888 1.7 1.59 2200 1.71 1.15 1900 1.71 1.82 3948 1.72 0.99 2399 1.73 1.31 3935 1.73 1.46 2389 1.73 1.61 1752 1.73 1.5 1572 1.74 1.55 1571 1.74 0.93 1838 1.74 0.58 2203 1.74 1.76 2177 1.74 0.94 3842 1.74 1.04 2269 1.74 1.88 2257 1.75 0.53 3697 1.75 1.21 3399 1.75 1.74 1844 1.76 1.79 3995 1.77 1.57 3878 1.77 1.52 900 1.77 2.55 1697 1.78 1.03 1825 1.78 1.35 3910 1.79 0.71 3971 1.79 0.39 3402 1.79 1.93 1826 1.79 1.69 3838 1.79 0.75 1911 1.8 0.82 1997 1.8 1.59 2253 1.8 1.38 3922 1.8 1.61 1855 1.8 0.39 1815 1.81 1.15 1810 1.81 1.45 3696 1.81 1.45 3964 1.81 1.48 3903 1.81 1.36 1918 1.82 1.79 3787 1.82 1.26 3744 1.82 1.87 2209 1.82 2 901 1.82 2.16 2225 1.83 0.46 2236 1.83 1.39 2163 1.84 0.9 3463 1.85 1.96 3504 1.85 1.4 2277 1.86 1.24 3983 1.86 1.61 1790 1.86 1.56 2337 1.87 1.36 1801 1.87 0.71 3806 1.87 1.89 1897 1.88 1.52 2168 1.89 0.65 1777 1.89 1.17 3566 1.9 1.58 2180 1.9 1.14 3942 1.9 1.9 2340 1.9 1.59 3762 1.91 1.7 1876 1.92 1.18 1862 1.92 1.18 1729 1.92 0.4 3866 1.92 1.67 1624 1.93 0.49 3667 1.93 1.99 1863 1.93 1.67 3646 1.93 0.84 1940 1.94 1.69 2271 1.94 1.27 1633 1.94 0.45 1985 1.94 1.59 3880 1.95 1.81 3482 1.95 2 1854 1.95 0.93 2354 1.95 1.03 2248 1.96 0.37 1928 1.96 0.88 3764 1.96 1.06 3201 1.96 1.94 3276 1.97 1.91 2345 1.97 0.8 1738 1.97 1.11 3264 1.97 1.88 2383 1.97 0.69 1626 1.97 1.05 1839 1.97 0.79 3873 1.98 0.52 1622 1.98 1.21 1396 1.98 1.57 3939 1.98 1.73 3927 1.99 1.58 1727 1.99 0.57 2378 1.99 1.29 1465 2 1.11 2238 2 1.7 2166 2 1.52 3545 2 1.25 2199 2 0.65 3191 2.01 1.65 3848 2.01 1.66 3938 2.01 1.77 1583 2.01 0.89 1608 2.01 1.09 3693 2.02 1.51 2307 2.02 1.07 3968 2.02 1.17 2400 2.02 1.29 1677 2.02 1.19 3837 2.03 0.51 1402 2.04 1.68 3557 2.04 1.42 3572 2.05 1.76 3795 2.05 1.11 1482 2.05 1.09 2347 2.06 0.89 3876 2.07 1.55 3856 2.07 1.26 3216 2.07 1.87 2352 2.07 1.62 3584 2.08 1.38 2358 2.08 0.98 3896 2.08 1.78 3792 2.09 1.5 3683 2.09 1.15 3585 2.09 1.94 3825 2.09 0.41 1606 2.1 1.52 1552 2.11 0.61 2207 2.11 1.68 1842 2.12 1.2 3471 2.12 1.82 1494 2.12 0.86 3700 2.12 1.34 3535 2.14 2 2339 2.14 1.05 3799 2.14 1.04 3682 2.15 1.94 1390 2.16 1.84 3936 2.17 1.32 1388 2.17 0.74 3521 2.18 1.59 1787 2.18 0.6 1793 2.18 1.82 1690 2.19 1.12 1670 2.19 1.12 1431 2.19 0.64 3852 2.2 1.26 1916 2.2 1.15 2235 2.2 1.68 3766 2.21 1.32 3980 2.21 1.11 1521 2.22 0.82 3805 2.22 0.81 1805 2.22 1.96 3507 2.23 1.81 1582 2.25 0.59 1448 2.25 1.6 1961 2.25 1.41 1887 2.25 0.48 3982 2.27 1.34 3881 2.27 0.47 3941 2.27 1.1 2327 2.28 0.88 1440 2.3 1.6 3755 2.3 1.58 1821 2.3 0.69 1771 2.3 0.99 3959 2.3 1.68 3539 2.3 1.78 2401 2.31 1.69 2171 2.32 0.36 3954 2.32 1.03 3668 2.32 1.28 1820 2.34 1 2240 2.34 0.78 2312 2.34 1.04 1517 2.34 0.8 3631 2.35 1.14 1957 2.36 1.41 1641 2.36 0.32 3851 2.36 1.73 3815 2.37 1.36 2390 2.37 1.62 3804 2.37 1.65 3824 2.38 1.67 2282 2.38 0.72 1528 2.38 0.81 1927 2.39 0.43 3715 2.39 1.98 1495 2.39 1.21 3559 2.39 1.26 3875 2.39 1.48 2313 2.39 1.04 3332 2.39 1.51 2210 2.4 1.6 3543 2.4 0.84 3967 2.4 1.3 3248 2.41 1.7 3588 2.41 1.79 2294 2.41 1.08 3832 2.43 1.32 349 2.44 1.56 3281 2.45 1.53 1613 2.46 0.71 2334 2.46 1.39 3769 2.47 1.08 1908 2.47 0.59 2172 2.49 0.94 1532 2.49 0.55 1837 2.49 1.17 3966 2.5 1.36 3798 2.5 1.81 1451 2.5 0.54 3984 2.52 1.43 1870 2.52 0.51 3626 2.53 0.84 2178 2.53 0.87 3479 2.54 1.5 1456 2.54 1.82 1678 2.55 1.48 1439 2.55 1.53 3664 2.55 1.28 1974 2.55 1.42 1581 2.56 1.69 2335 2.56 1.45 1511 2.57 1.06 1438 2.58 1.96 3658 2.59 1.16 3970 2.59 1.44 3662 2.59 1.35 1890 2.59 0.59 1886 2.6 0.43 3835 2.6 1.62 3853 2.61 0.93 3916 2.61 1.98 3592 2.62 0.91 2119 2.63 1.6 3911 2.63 1.7 1875 2.64 0.42 1665 2.64 1.21 1774 2.64 0.63 3694 2.65 1.18 1998 2.65 1.13 1492 2.66 1.09 3933 2.67 1.14 1434 2.67 1.56 3892 2.68 1.53 3673 2.68 1.83 1819 2.69 0.57 3562 2.69 1.58 3629 2.69 0.79 3926 2.69 0.94 3985 2.7 1.41 3957 2.7 0.76 3493 2.7 1.61 3594 2.71 1.99 2183 2.71 1.62 1874 2.72 0.67 3653 2.72 1.49 1905 2.72 0.45 1403 2.72 1.29 1483 2.73 1.31 3574 2.73 1.62 1598 2.73 1.86 3576 2.74 1.95 1698 2.74 1.58 1782 2.74 1.99 3515 2.75 1.23 2321 2.75 0.53 1701 2.75 1.21 3822 2.76 1.77 1950 2.76 0.4 2336 2.76 1.05 1422 2.77 1.18 1772 2.77 1.4 1830 2.77 0.39 1628 2.77 0.9 3335 2.78 1.91 1730 2.78 0.47 3811 2.79 0.68 3826 2.79 1.05 1882 2.79 1.9 3395 2.8 1.7 3513 2.81 1.75 1457 2.82 1.05 1505 2.83 1.84 2331 2.83 0.83 3604 2.84 1.33 3768 2.85 1.04 3894 2.85 0.43 1705 2.85 0.38 3986 2.85 1.58 3823 2.88 1.68 3882 2.88 0.51 3776 2.89 1.83 3267 2.9 1.83 3872 2.9 0.55 3466 2.91 1.51 3849 2.91 1.31 2353 2.92 1.54 3765 2.93 1.03 1981 2.93 0.62 3467 2.94 1.49 1800 2.94 0.66 1935 2.94 1.75 1856 2.97 0.49 1662 2.98 1.9 3745 2.99 1.35 2308 3 1.03 1645 3 0.42 Max. deviations for best ID is within recommended range. Chosen best chemical ID is suitable for programming the gauge. Selection of best generic ID for ROM based devices like bq274xx Device / Family #1 Generic Chem ID Device/ Voltage/ Chemistry max DOD error, % 354 bq27411-G1C: 4.35V LiCoO2 1.83 3142 bq27421-G1D: 4.4V LiCoO2 3.41 312 bq27421-G1B: 4.3V LiCoO2 4.94 128 bq27421-G1A: 4.2V LiCoO2 9.08 Best generic ID 354 Max. deviations for best generic ID is within recommended range. Please chose this ID in your device configuration or device family. Device / Family #2 Generic Chem ID Device/ Voltage/ Chemistry max DOD error, % 354 bq27621: (ALT_CHEM2) 4.35V LiCoO2 1.83 1210 bq27621: (ALT_CHEM1) 4.3V LiCoO2 3.72 1202 bq27621: (default) 4.2V LiCoO2 9.78 Best generic ID 354 Max. deviations for best generic ID is within recommended range. Please chose this ID in your device configuration or device family. Device / Family #3 Generic Chem ID Device/ Voltage/ Chemistry max DOD error, % 3230 bq27426: (default) 4.35V LiCoO2 1.87 3142 bq27426: (ALT-CHEM2) 4.4V LiCoO2 3.41 1202 bq27426: (ALT_CHEM1) 4.2V LiCoO2 9.78 Best generic ID 3230 Max. deviations for best generic ID is within recommended range. Please chose this ID in your device configuration or device family.
