TPSM84209: Pin allocation not in datasheet

Part Number: TPSM84209

Hi TI Team,

I am considering using the TPSM84209 and have accessed the datasheet SLVSE31C –JANUARY 2018–REVISED JULY 2018.

The datasheet has mechanical package information on page 28.  This drawing shows the pin numbering.

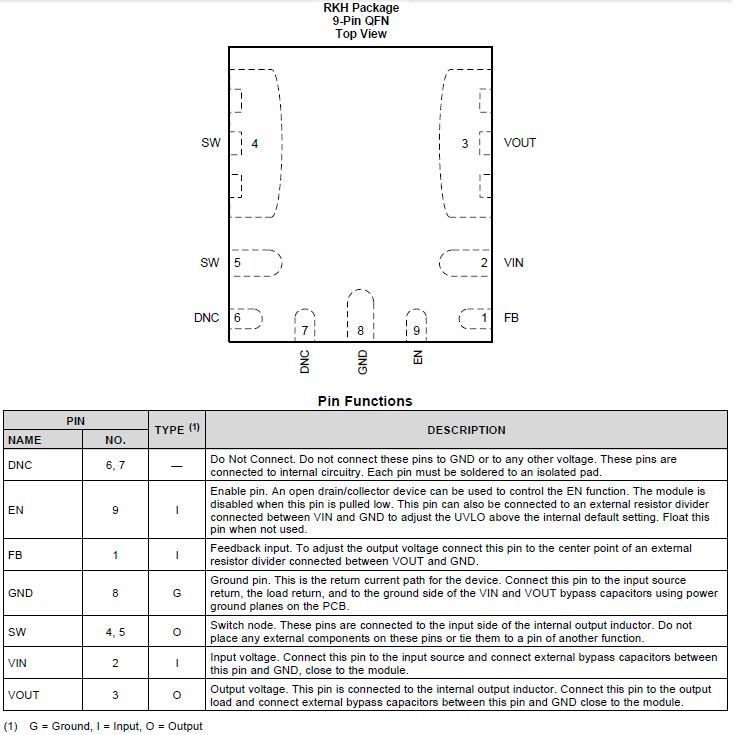

I cannot see anywhere a table showing the mapping from the logical pin function (Vin, Vout, GND, EN etc) to the package physical pin numbers.

Without this I cannot create a footprint.

Regards

Peter Sykes
