BQ25120A: BQ25120 is not getting out of shipmode.

Aiswarya krishnan

Part Number: BQ25120A

Hi,

BQ25120A enters ship mode once micro controller sets EN_SHIP MODE bit via I2C command.In ship mode,SYS output turns off and micro controller powers off.Exiting ship mode via MR button press is not happening even depressing MR button beyond t_Reset time has no effect.How to get PMIC out of ship mode?

Thanks

over 6 years ago

0 Gautham over 6 years ago

TI__Genius 12485 points

Aiswarya,

The /MR needs to be pushed only for a few ms to start exiting ship mode. What is your battery level?

Can you share the plots of VBAT/PMID and /MR when the button is pressed?

Regards,
Gautham

0 Aiswarya krishnan over 6 years ago in reply to Gautham

Prodigy 85 points

Hi Gautham,
I cant plots VBAT/PMID/MR since my board is so small.My battery level is above 3.6v

0 Aiswarya krishnan over 6 years ago in reply to Aiswarya krishnan

Prodigy 85 points

Aiswarya krishnan said:
Hi Gautham,
I cant plots VBAT/PMID/MR since my board is so small.My battery level is above 3.6v

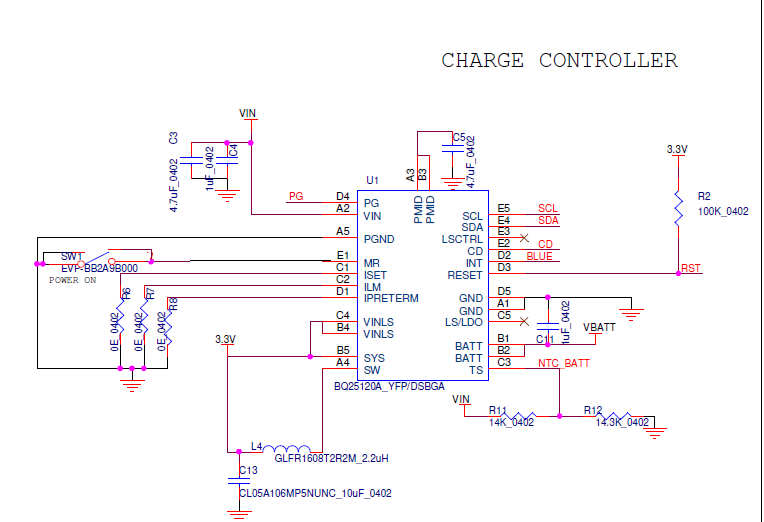

please see the circuit,if any correction to be done.please let me know.

0 Gautham over 6 years ago in reply to Aiswarya krishnan

TI__Genius 12485 points

Aiswarya,

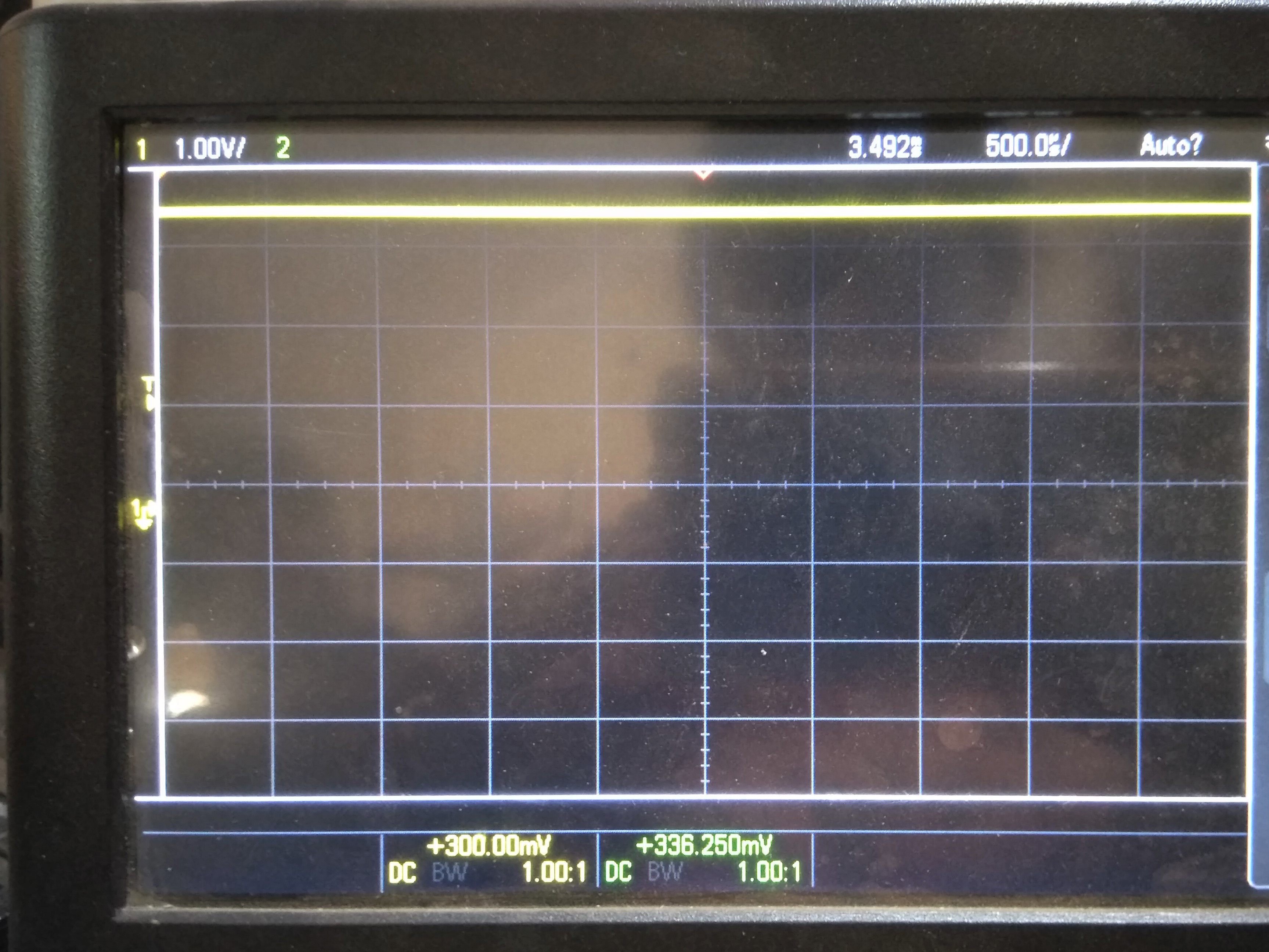

No worries. Can you atleast plot the battery terminal? We want to make sure that when the device is starting up from ShipMode, the load on PMID (caps) are not causing the battery pin to see a voltage less than BUVLO.

Your schematic looks okay.

regards,
Gautham

0 Aiswarya krishnan over 6 years ago in reply to Gautham

Prodigy 85 points

0 Gautham over 6 years ago in reply to Aiswarya krishnan

TI__Genius 12485 points

Aishwarya,

I don't see any issues on the VBAT pin. I will send you an email as i will need some more info. thanks!

Regards,
Gautham
