TPS40170: Compensation Design Problem

Amos Chen

Prodigy 235 points

Part Number: TPS40170

Hi Katelyn

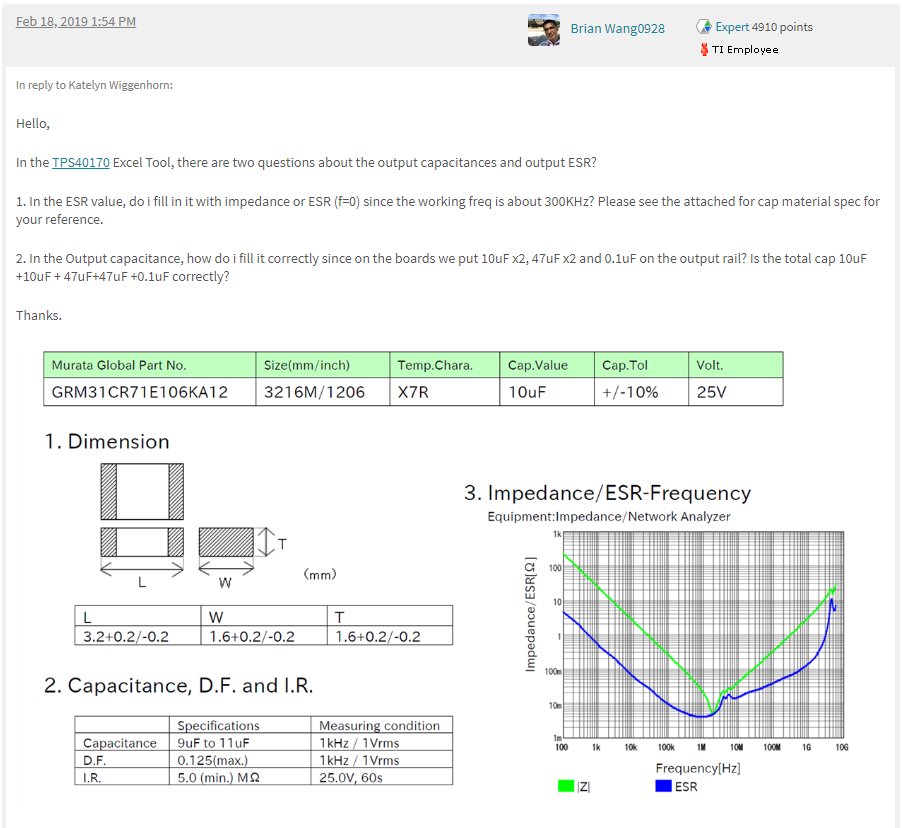

I am interesting about the last question about output ESR and output capacitance.

Would you provide your suggestion?

Thank you

Amos.

TPS40170: Compensation Design Problem

over 6 years ago

0 David Baba over 6 years ago

TI__Mastermind 40040 points

Hello Amos,

You should be entering in the ESR at the switching frequency. If you are using ceramic capacitors, entering 3mR for ESR is fine as a general rule.

hope this helps?

0 Amos Chen over 6 years ago in reply to David Baba

Prodigy 235 points

Hi David

Thank you for the feedback.
Amos.
