TPS2065C-2: Need you help with TPS2065CDBVR connection

Shlomi Yehezkia

Mastermind 6150 points

Part Number: TPS2065C-2
Other Parts Discussed in Thread: TPS2065C

Hi Team,

Could you please check the connection of TPS2065CDBVR.

It is ok to connect FLT pin to EN pin (IO from MCU) with 100 Ohm resistor?

The resistor between pin 5 and 1 is option when TPS2065CDBVR is not assembly.

Thanks,

Shlomi

TPS2065C-2.docx

over 6 years ago

0 Kevin-Cheng over 6 years ago

TI__Expert 3135 points

Hi Shlomi,

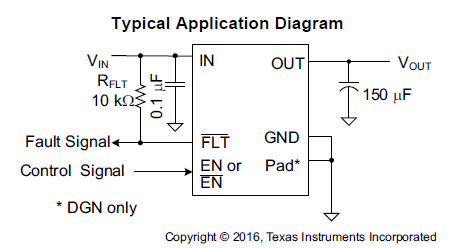

EN pin is a input pin, FLT pin is a output pin, they can't be connected together as in your schematic, the connection will make the FLT pin unusable. Please refer the datasheet for the right connection.

Kevin
