WEBENCH® Tools/LM5118: Design tools have been used

tony zheng

Part Number: LM5118

Tool/software: WEBENCH® Design Tools

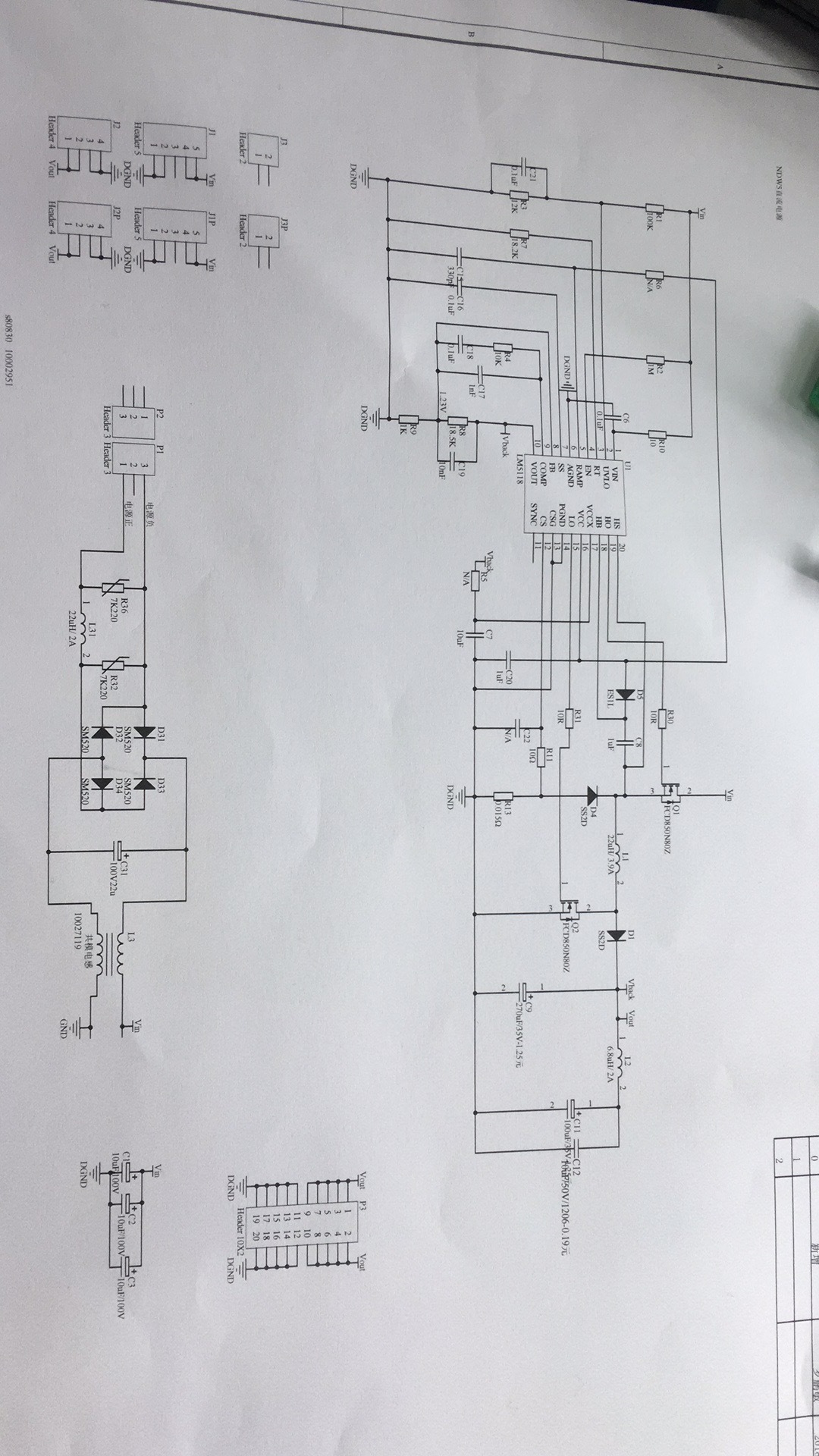

Lm5118 This material application conditions: input 18 ~ 66V, output 24V 700 mA, in Buck mode, the voltage of the UVLO foot is cyclically lowered, the waveform looks like an overcurrent 256 cycle point. In addition, in the case of loading, it can not start. The schematic diagram and the waveform of UVLO are as follows.

over 6 years ago

0 Youhao Xi over 6 years ago

TI__Guru* 78070 points

Hi Tony,

The engineer is currently out of office and your post will be replied once he is back to office next week.

Thanks,
Youhao

0 Garrett Roecker over 6 years ago

TI__Mastermind 21720 points

Hi Tony,

Can you please post the pictures of the waveforms of the UVLO pin and start-up?

Does the regulator start-up in boost mode operation?

Thanks,

Garrett

0 tony zheng over 6 years ago in reply to Garrett Roecker

Prodigy 130 points

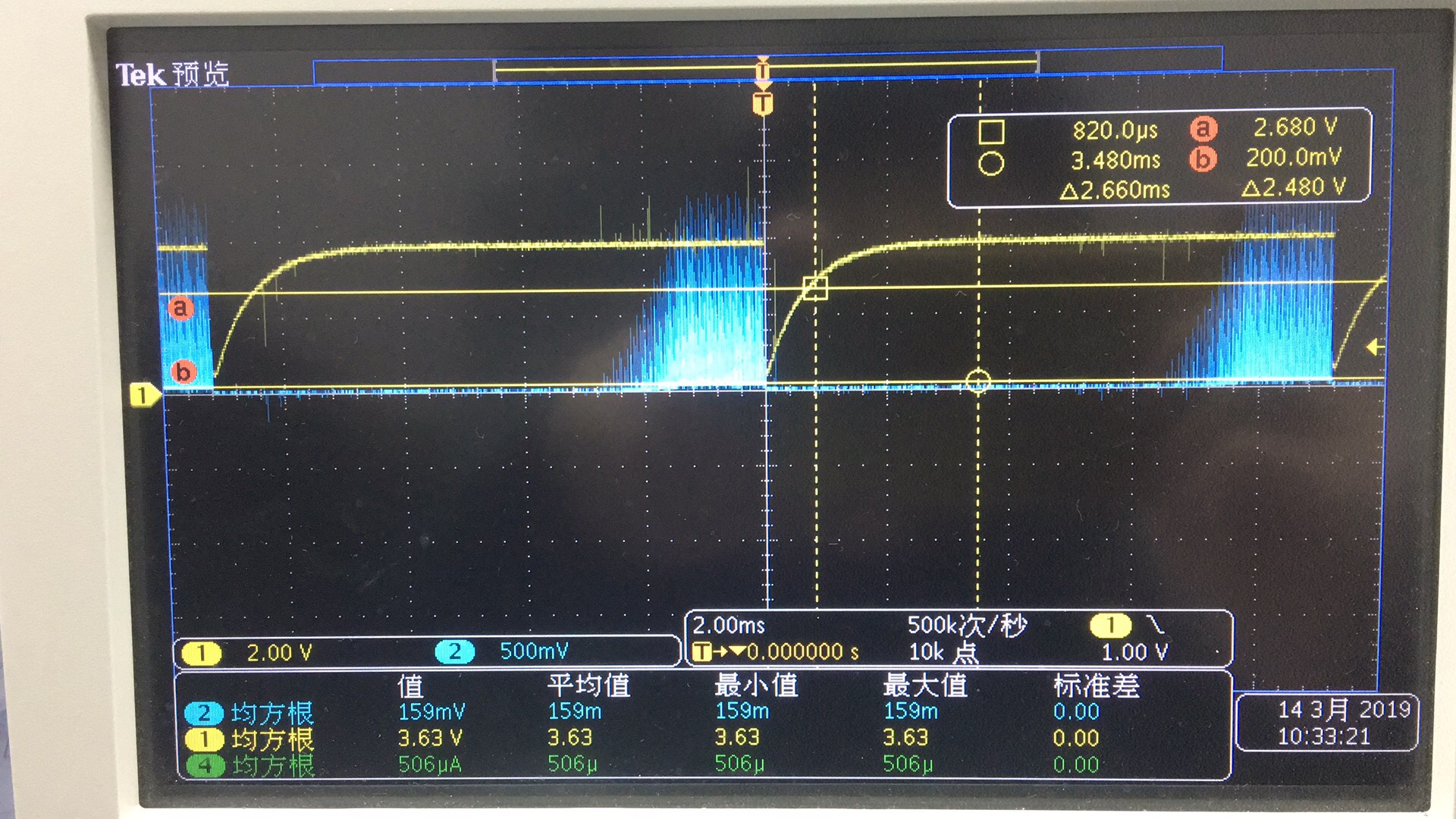

1、The waveform is shown below.

2、The regulator start-up in buck mode.

0 EricLee over 6 years ago in reply to tony zheng

TI__Guru 58241 points

Hi,
The responsible engineer is out now. We will reply by 4/10.
Regards,
EL

0 Garrett Roecker over 6 years ago in reply to tony zheng

TI__Mastermind 21720 points

Hi Tony,

It looks like the LM5118 is running into hiccup mode. I suggest increasing the soft-start capacitor to help ease the controller on. Try increasing the value by 10x and see if it helps solve the issue.

Thanks,

Garrett
