TPS61022: Radius Value Information

Saurabh Kapoor

Part Number: TPS61022

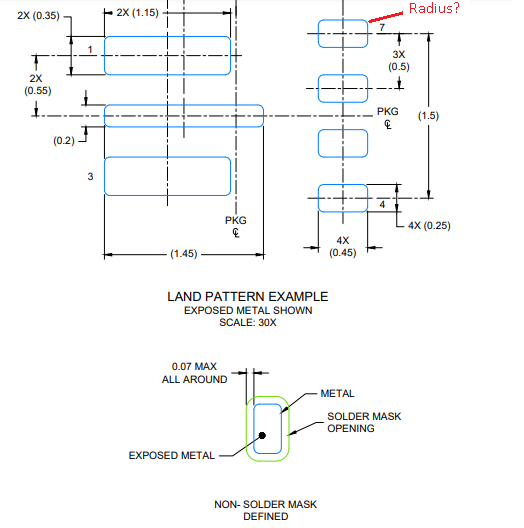

There is no information about the radius value in the step file available on TI TPS61022. Please help with the radius value for the pad of below drawing

over 6 years ago

0 Zack Liu over 6 years ago

TI__Mastermind 34231 points

Hi Saurabh,

You can use a 0.25*0.45 rectangle pad for pin 4-7. I'll check it and tell you as soon as I find the data.

0 Zack Liu over 6 years ago in reply to Zack Liu

TI__Mastermind 34231 points

Hi Saurabh,

In Altium designer, you can set the pad shape to be rounded rectangle. Size is 0.45mm*0.25mm. Corrner radius is 40%.
