TPS62136: Heating issue while converting 15V to 12V

Mebin P M

Part Number: TPS62136

Hi,

I m facing heating issue with TPS62136 which i have designed to convert 15V to 12V. The schematics of the circuit is given below. My input voltage is 15V. The current that i want to the laod is 2.5A. I want 12V out. Can anyone help us to solve this issue.

Thanks in advance

over 6 years ago

0 Omar Hegazi over 6 years ago

TI__Intellectual 1780 points

Hi Mebin,

Assuming R6 is a DNP component, your schematic seems fine to me.
Can you please share your layout with me. Additionally, can you please describe the heating issue in more details? and in how many parts have you seen this issue?

Best regards,
Omar

0 Mebin P M over 6 years ago in reply to Omar Hegazi

Prodigy 90 points

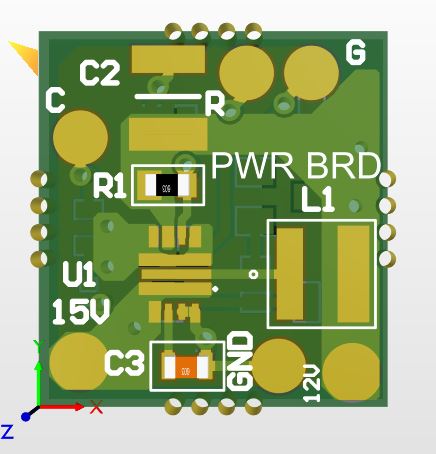

Hi, thanks for the quick reply. I m attaching layout details. I have implemented this circuit along with other circuit.

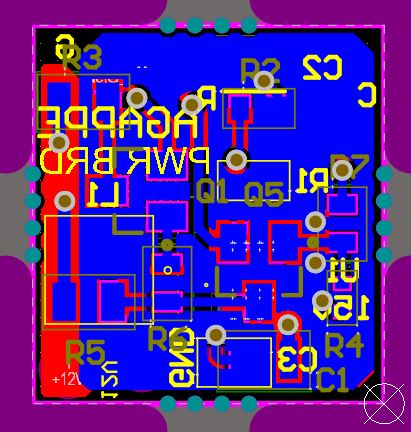

Attached all images below. Top and bottom below

0 Omar Hegazi over 6 years ago in reply to Mebin P M

TI__Intellectual 1780 points

Hi Mebin,

Thanks for sharing the schematics and the layout.
I still do not know what kind of heating issue you are having. so please explain this to me.
However, the layout needs revision. Please remove the vias you have on the pins of the device. Additionally, make L1 closer to the SW pin and make its connection to the sw thicker, because high current flows through that connection. Please follow all the tips mentioned in the DS of the device in page 34 and 35.

Best regards,
Omar

0 Dorian Brillet de Cande over 6 years ago in reply to Omar Hegazi

TI__Genius 14876 points

Hi Mebin,

Have you gathered up more information on your heating issue so we can help you better?
Does Omar's help gave you enough information to solve your issue?
Thank you very much!

Best Regards,

Dorian

0 Mebin P M over 6 years ago in reply to Dorian Brillet de Cande

Prodigy 90 points

hi,
Thanks for the quick reply.

Heating issue is happening while step down 15v to 12V and this 12V is used for battery charging(MCP73844T-840I/MS). I will resdesign the existing pcb and check heat issue again after that i will get back to you.
