TPS2660: RTN to GND

Hello Kai,

The device uses back-to-back MOSFET for main Powerpath from IN to OUT. From RTN to GND, device does not use back-to-back MOSFET.

Hi Sir

May i know RTN to GND have body diode and direction is from GND to RTN ?

Thanks

Hello Kai,
The direction is from RTN to GND, it prevents flow of current from GND to RTN.

Hi Lokesh

May I know RTN to GND always turn on ? or if the device EN low ,the RTN to GND will turn off or not ?

Hi Lokesh

May I know your suggestion ?

Thanks

Hello Kai,
There is no EN pin in TPS2660, Did you mean SHDN pin?

If reverse polarity protection is needed on input, you can also consider TPS2663 devices. These device provide reverse input polarity protection without additional RTN pin.

Hi Sir

Yes!! SHDN pin
it is a special application ,we would like to use 2pcs TPS2660 on AC24V and POE54V
In this case ,have leakage current from GND to RTN
As your reply ,TPS2660 have a diode and direction is RTN to GND
But I would like to make sure when SHDN is low (turn off) ,GND to RTN MOSFET will open and use the diode to block the leakage current

Thanks

Hello Kai,

Is AC 24V a positive DC 24V supply? Or it has minus 24V also?

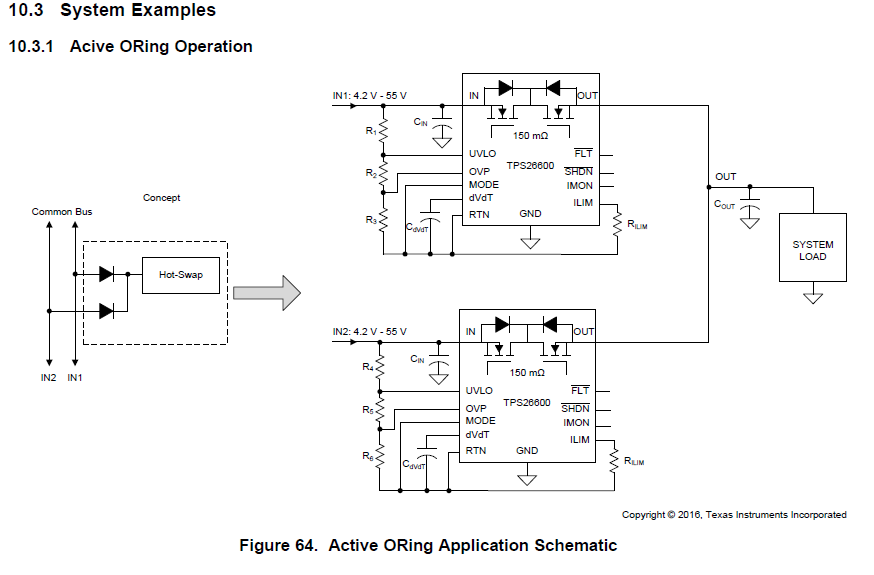

Are you looking for ORing of 54V supply and 24V supply similar to system example below?

Hi Sir

AC24V schematic is below schematic , It will have DC 37V after bridge diode

This leakage current issue will happen if the router work two set of IPCAM at the same time and the leakage current will flow from VSS to RTN

So we would like to make sure TPS2660 have block function



Hello Kai,

Reverse polarity block will disconnect RTN from GND only when voltage at IN pins is negative. RTN pin in TPS2660 has different function than RTN pin in TPS23756.

In this application, reverse current blocking function (RCB) in TPS2660 would be useful as it can block from OUT to IN pins of TPS2660.

Can you provide on which outputs or inputs of PMP6659 design, TPS2660 will be used? and how the power will flow?
