WEBENCH® Tools/LMR33630: LMR33630B and C simulation problem

nicolasp5186

Part Number: LMR33630
Other Parts Discussed in Thread: TINA-TI,

Tool/software: WEBENCH® Design Tools

Hi,

I just tried to simulate the default design of LMR33630A/B/C for the same input parameters : Vin=4.5-12.5V / Vout=3V / Iout=2A

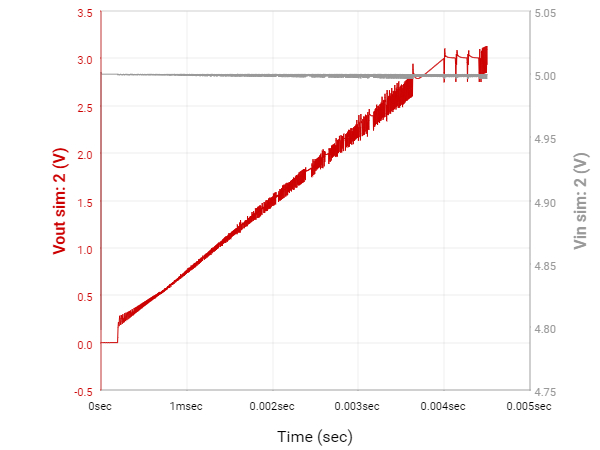

The simulation work well with the A version but the output voltage is not stable for the B and C version.

Do you know what's going on ?

Regards

over 6 years ago

0 Gerold Dhanabalan - Online Design Tools over 6 years ago

TI__Genius 14455 points

Hi Nicolas,
Yes, we are able to see this in the simulation. We are debugging to find the root cause. Will let you know once we find it out.

Regards,
Gerold

0 nicolasp5186 over 6 years ago in reply to Gerold Dhanabalan - Online Design Tools

Prodigy 240 points

Thank you, Do you know if despite the bad waveform the proposed schematic and components values are correct ?

Regards

0 Mahantesh Chanagoudar over 6 years ago in reply to nicolasp5186

TI__Intellectual 1045 points

Hi Nicolas,

We are also cross verifying the component selection and will get back to you soon.

Best Regards,
Mahantesh

0 nicolasp5186 over 6 years ago in reply to Mahantesh Chanagoudar

Prodigy 240 points

Hi Mahantesh,

Thank you for your reply.

Do you know approximatly when this problem will be solved ?

Best regards.

0 Praveen Badiger over 6 years ago in reply to nicolasp5186

TI__Expert 8365 points

Hi Nicolas,

We are updating the component selection and simulation issue. The fix will be on ti.com by the first weekend of May.

Thanks & Regards,
Praveen B

0 nicolasp5186 over 6 years ago in reply to Praveen Badiger

Prodigy 240 points

Thank you,

Meanwhile, can i validate my design with Tina-TI + LMR33630A/B/C models ?

Are the Tina-TI models for LMR33630 valid ?

0 Praveen Badiger over 6 years ago in reply to nicolasp5186

TI__Expert 8365 points

Hi Nicolas,

TINA model is not available on ti.com.Please use the Pspice model to simulate the design from below link.

www.ti.com/.../toolssoftware

Thanks & Regards,
Praveen B

0 Gerold Dhanabalan - Online Design Tools over 6 years ago in reply to Praveen Badiger

TI__Genius 14455 points

Hi Nicolas,
As the Pspice unencrypted model is on the web, you can convert it to TINA-TI. Instructions are available here in this training video.
training.ti.com/importing-spice-models-tina-titm-simulator
Regards,
Gerold

0 Praveen Badiger over 6 years ago in reply to Gerold Dhanabalan - Online Design Tools

TI__Expert 8365 points

Hi Nicolas,

Thanks for your patience. The fix will be available on ti.com by end of this week.

Thanks & Regards,

Praveen B

0 nicolasp5186 over 6 years ago in reply to Praveen Badiger

Prodigy 240 points

Hi Praveen,

Thank you for your reply. Please keep me informed when the fix will be online.

Please let me know (if you know) what was the problem.
Can it be due to an oscillation between PFM and PWM mode due to the inductor value ?

Regards

0 Harish K R over 6 years ago in reply to nicolasp5186

TI__Intellectual 2320 points

Hi Nicolas,

Apologies for the delay.
The main problem was w.r.t simulation parameters. We have fixed this issue. Also, we have improved component selection for this device.
Our release got postponed, Sorry for the inconvenience caused. The changes will be reflected on ti.com by 8th May.

Thanks & Regards,
Harish

0 Praveen Badiger over 6 years ago in reply to Harish K R

TI__Expert 8365 points

Hi Nicolas,

The fix is available on ti.com.

Thanks & Regards,
Praveen B

0 nicolasp5186 over 6 years ago in reply to Praveen Badiger

Prodigy 240 points

Hi Praveen,

Thank you very much.

Regards.
