TPS60403: Switching frequency issue at shorted between -5V and GND.

Hi Muk,

I will check on our side and respond to you soon.


Best regards,
Excel

Dear Yusuke Mukuno,

Could you please provide more information regarding the operating conditions of the device and how are you measuring this signal?

Best regards,
Omar

Omar-san, Excel-san,

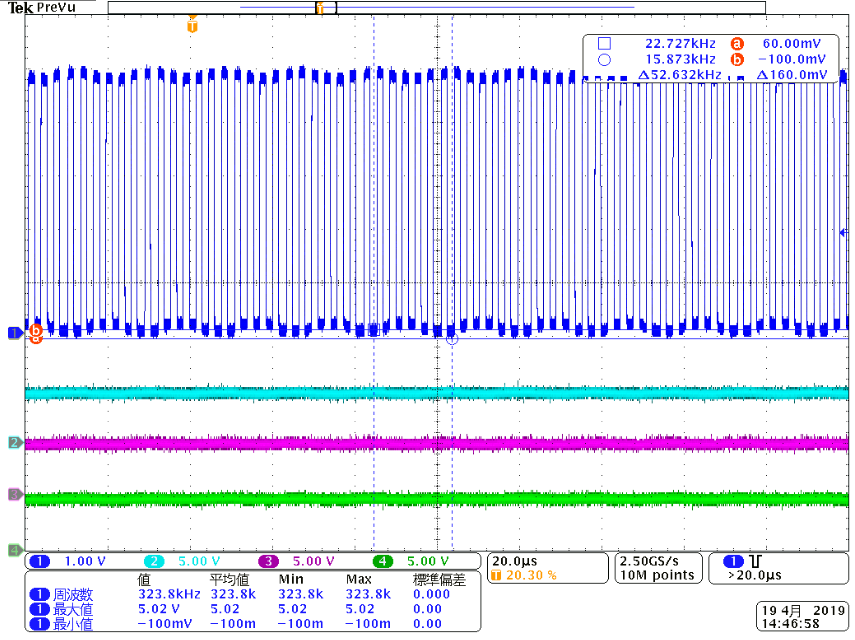

The waveform is measured on sensor output.


First, Could you please let me know about the device behavior at output short condition?


Will the device switching frequency become 50kHz at Vo>-1V ? (from the datasheet Functional Block Diagram)
What is Vbe in the datasheet Functional Block Diagram?


Muk

Mukuno-san,

I am not sure where are you probing the device to get the switching signal in the waveform attached earlier. Can you please explain to me how are you probing the device and under which conditions exactly?
We do not usually have the open-short test but I will check and get back to you on this.
Finally, the device has no short circuit protection while running. Upon starting up, if very low impedance is present at the output, the device should not start though.

Best regards,
Omar

Hi Omar-san,

Please ignore the waveform. This was a sensor output.

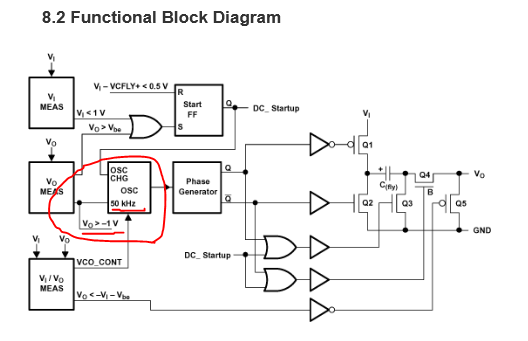

Could you please let me know about the function of following block?

Hi Mukuno-san,

This block is forcing the device to operate at 50kHz frequency under the condition Vo > -1. Vbe is 0.7V.

Best regards,
Omar
