Hi Sir,

My customer is planning to use UC2843 with below input/output voltage.

Topology: Isolation PSR topology with 3 output.

Vin:30V~150V

Vout1:13.8V/0.3A

Vout1:13.8V/0.25A

They are hoping to build a simulation environment to make sure their design is ok.

May I have your help to build a TINA simulation environment or Webench simulation?

Many thanks,

Patrick

over 6 years ago

0 Amod Vaze over 6 years ago

TI__Mastermind 26820 points

Hi Patrick,

WEBENCH does not support electrical simulation for this device. However, I do see a transient model under the Tools and Software section on the UC2843 product page. Not sure if those will work for your requirement so requesting some help from modeling team here to confirm.

Regards,
Amod

0 Vivek Agarwal over 6 years ago

TI__Intellectual 1595 points

Hi Patrik,

The UC2843 unencrypted SPICE model is available on the website which can be used for TINA-TI simulations.

You can watch this (Importing SPICE models into TINA-TI(TM) simulator) video from the short Video Training Series.

This may help you in creating TINA simulation environment.

Please let us know if you need any further assistance.

Thanks,
Vivek Agarwal

0 Patrick Chen(TPE System & Application) over 6 years ago in reply to Vivek Agarwal

TI__Expert 3430 points

HI Vivek,

Customer build a TINA simulation circuit, but the simulation result is not as what they want.

They wish to see a steady 13.8V output, but they output voltage toggled between 9V~10V, could you help to advise what portion should modify?

Vin:30V~150V

Vout1:13.8V/0.3A

Vout2:13.8V/0.3A

flyback.TSC

Thanks,

Patrick

0 Patrick Chen(TPE System & Application) over 6 years ago in reply to Patrick Chen(TPE System & Application)

TI__Expert 3430 points

HI Vivek,
Are you able to help take a look on customer's TINA circuit?
Customer hoping to decide solution this week and if this is not working, we might loss this socket.
Many thanks.
Patrick

0 Saket over 6 years ago in reply to Patrick Chen(TPE System & Application)

TI__Intellectual 2680 points

Hi Patrick,

We are looking into this issue but it might take couple of days or so to debug this issue.

Regards,
Saket

0 Saket over 6 years ago in reply to Saket

TI__Intellectual 2680 points

Hi Patrick,

The model is regulating around desired 13.8V with ~0.3A current after removing Zener and TL431 at VOUT1 node.

TL431 and resistor divider network at VOUT1 is forcing VOUT1 to regulate at 10V and that is the reason VOUT1 and VOUT2 settled around 9-10V in simulation.

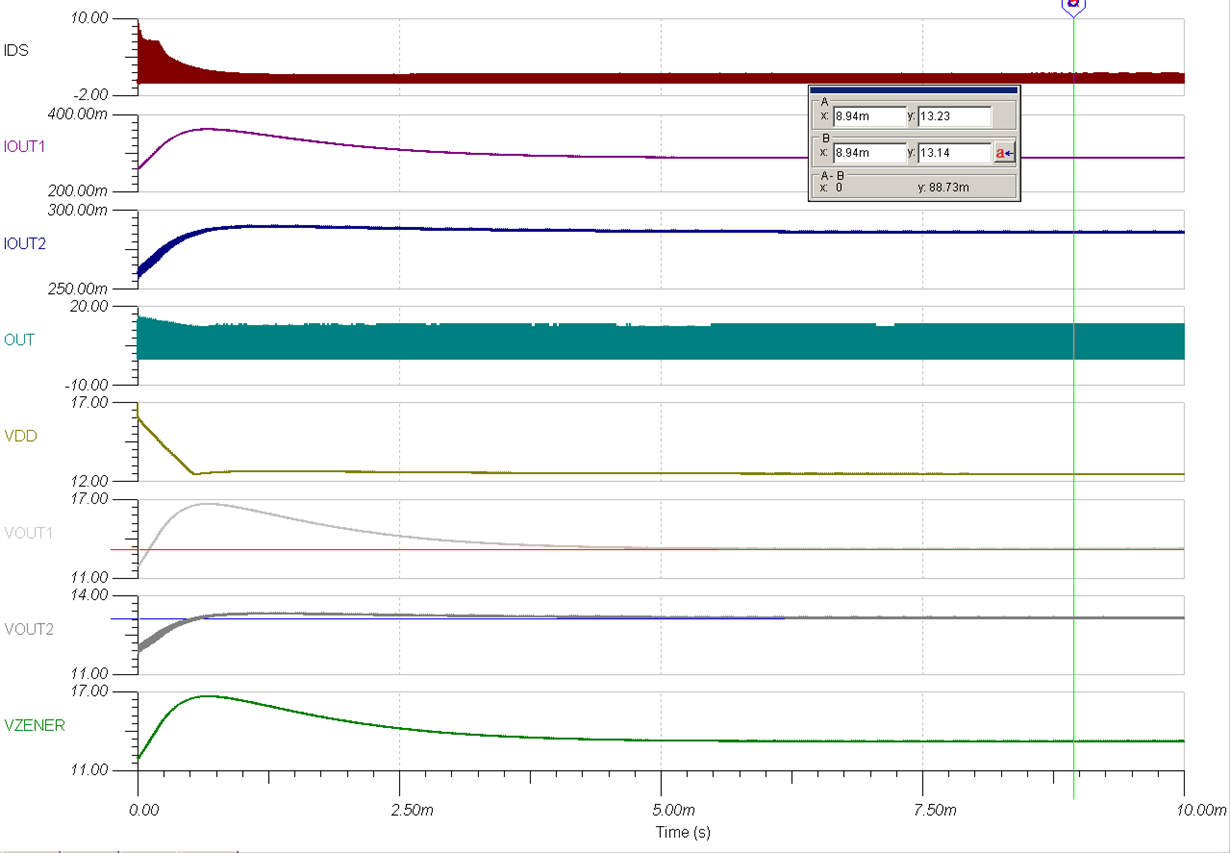

As of now, I do not see any issue in the model. PFA simulation results and Tsc file below and let me know if you have any suggestions and questions on this.

flyback_without_Zener_TL431.TSC

0 Saket over 6 years ago in reply to Saket

TI__Intellectual 2680 points

Hi Patrick,

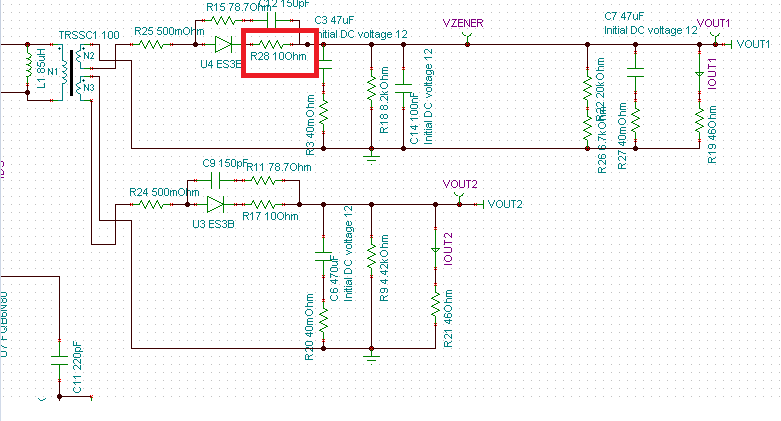

I missed to mention a change in schematic that was made to get same VOUT1 and VOUT2.

I have added 10ohm resistance at VOUT1 that was present in series with Diode in VOUT2 network. Without these VOUT1 was settling to higher value (~30V).
