Part Number: TPS3710-Q1

Dear Sir,

TPS3710QDSERQ1 didn't have BOARD LAYOUT Guide.

Please you kindly review & provide data.

My customer waiting this data to do layout.

Thanks!

Steven

over 6 years ago

0 Ethan T over 6 years ago

TI__Expert 3835 points

Hi Steven,

Was there something you wanted to attach for me to review? I do not see any attachments.

Also the TPS3710-Q1 has a layout guideline on section 10 of the TPS3710-Q1 datasheet.

Thanks,
Ethan

0 Steven He92 over 6 years ago in reply to Ethan T

Expert 2125 points

Dear Ethan,

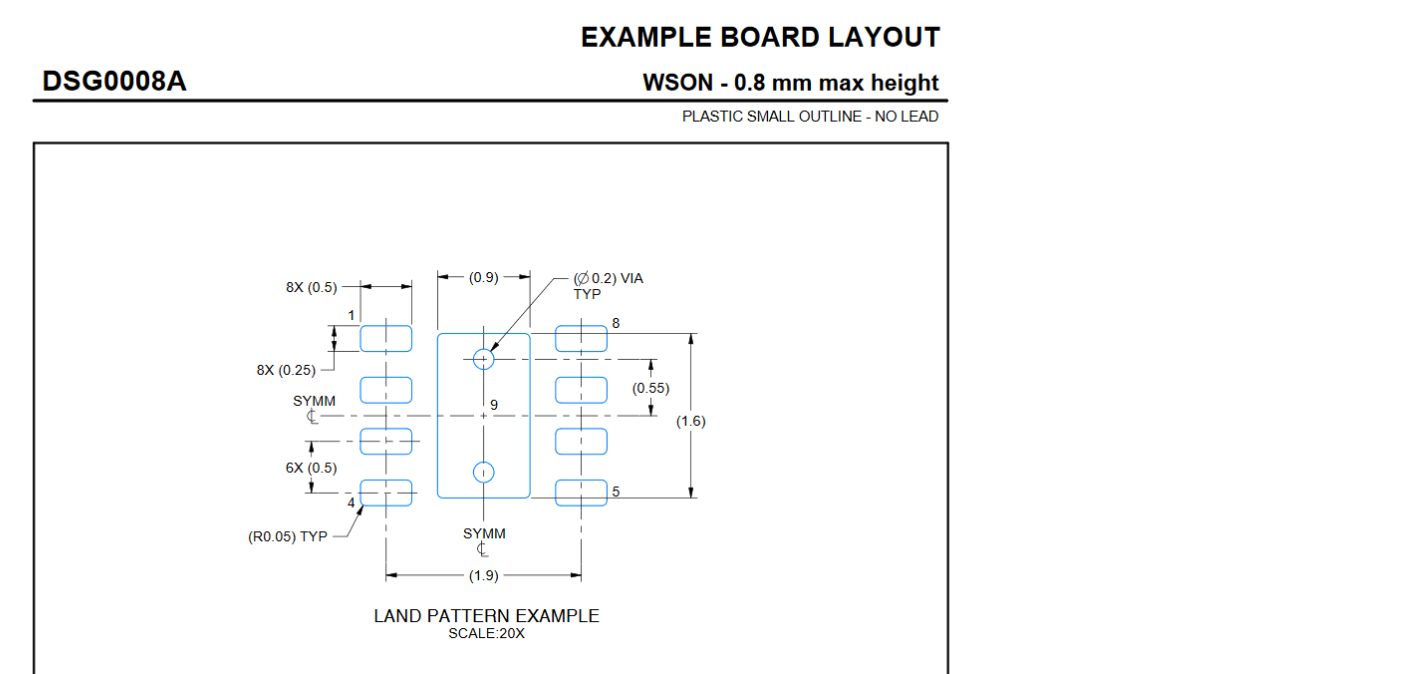

Please refer below example picture.

We would need board layout information, only have plastic outline in data sheet page-21.

Thanks!

Steven

0 Ethan T over 6 years ago in reply to Steven He92

TI__Expert 3835 points

Hi Steven,

Unfortunately, this is the only layout resource we have. It provides all the necessary specs for a board layout. Is there any other information you expect to see on that diagram?

Regards,

Ethan

0 Steven He92 over 6 years ago in reply to Ethan T

Expert 2125 points

Dear Ethan,

OK! thanks!

Steven
