TPS40170-Q1: much output ripple

CHEN YAN

Part Number: TPS40170-Q1

Hi,

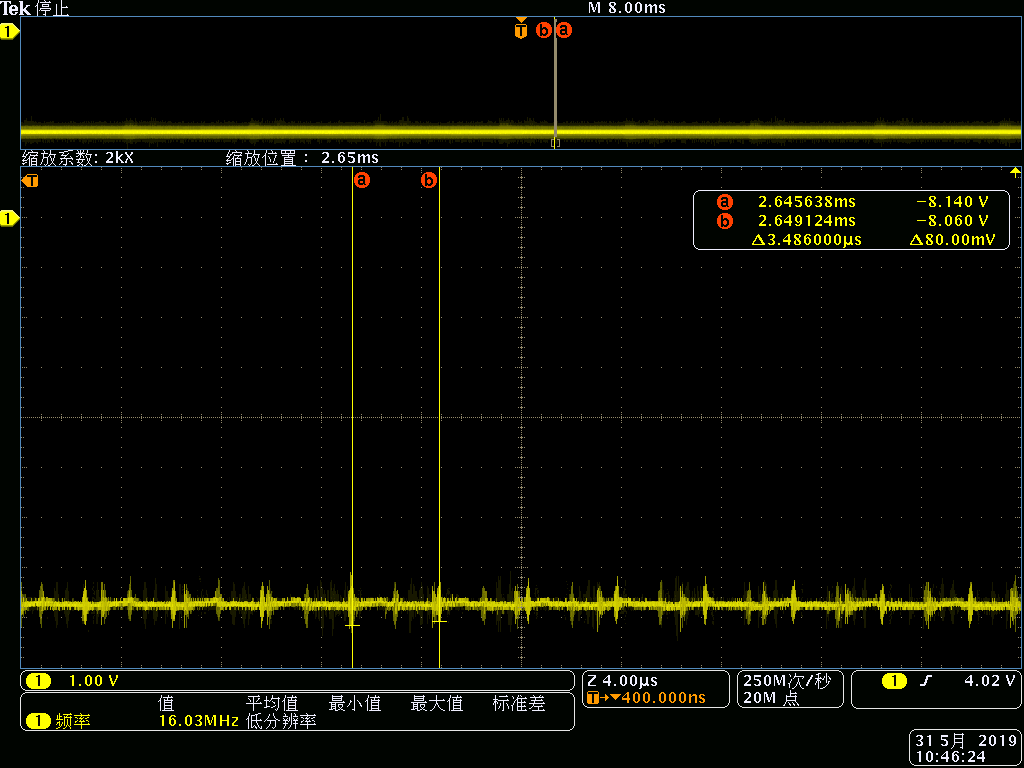

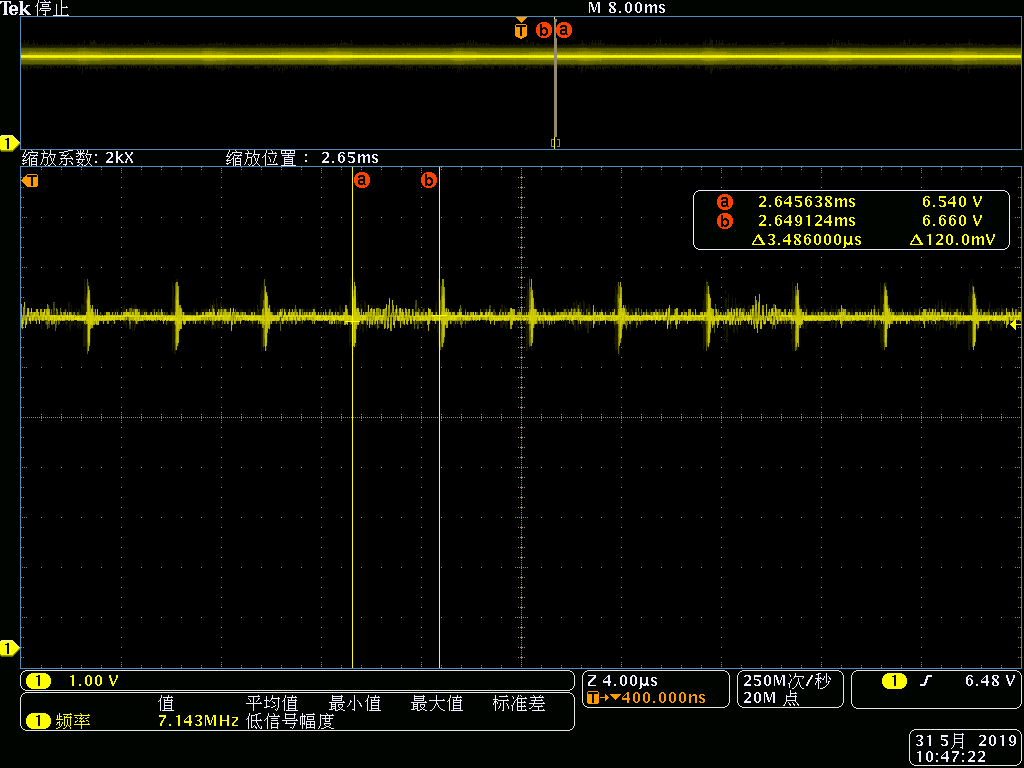

My customer is using TPS40170-Q1 for display in car panel, but found the voltage ripple is abnormal, I have uploaded the schematic and layout files. Could you please help us on this issue? Thanks.

YDB23HP000FF-MP4-B01-20180917.pdf

YDB23HP000FF-MP4-B.brd

over 6 years ago

0 Arief Hernadi over 6 years ago

TI__Mastermind 23845 points

Hi Chen,

It looks like the output seems normal to me. Are you worried about the spikes?
Sometime this artifact is due to measurement method of the output ripple.

One way to reduce this is to use a post filter like a ferrite bead or choose capacitor that has the self resonant frequency at the desired spikes frequency that needs to be filtered.
training.ti.com/understanding-measuring-and-reducing-output-noise-dcdc-switching-regulators

Thanks
-Arief

Power management

Power management forum

TPS40170-Q1: much output ripple
