TINA/Spice/UCC2897A: Simulation Error and No Output

Nesh Johny

Expert 1310 points

Part Number: UCC2897A
Other Parts Discussed in Thread: TINA-TI

Tool/software: TINA-TI or Spice Models

Dear Sir,

The UCC2897A PSpice Transient Model is not showing any output voltage in the simulation.

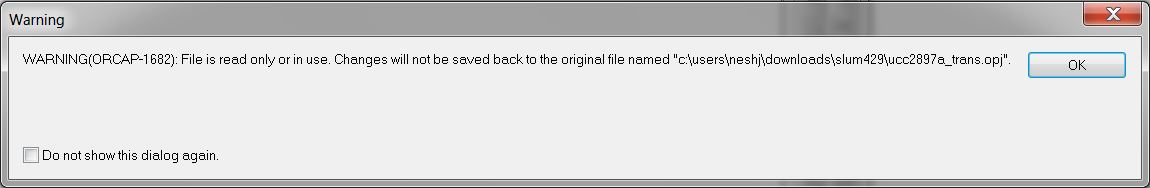

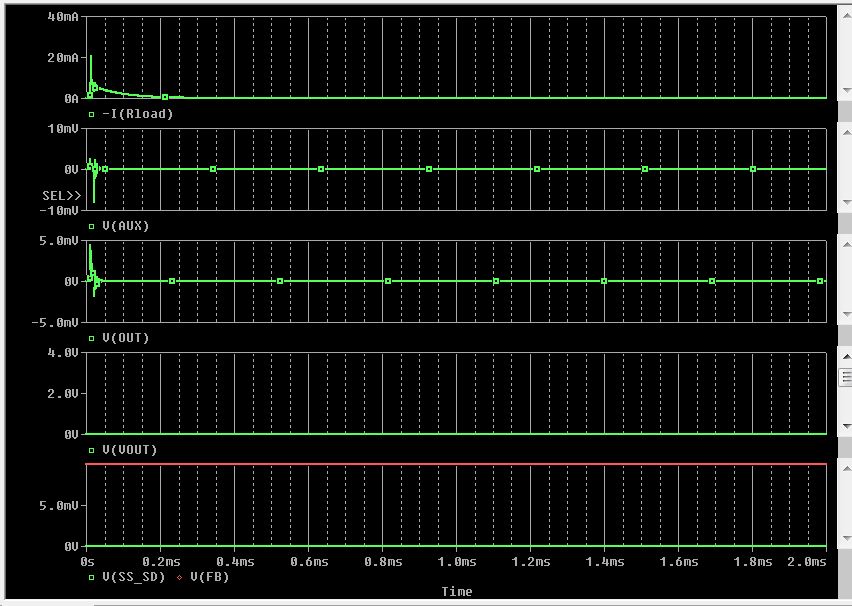

please find the below screenshots of the error and the output waveforms:

are there any settings to be changed for this simulation.

Thanks and regards,

Nesh

over 6 years ago

0 Peter Meaney over 6 years ago

TI__Mastermind 31580 points

Hi Johny,

Please give me a day or two to look at this issue, I need to install PSPICE on my machine first.

Regards

Peter

0 Peter Meaney over 6 years ago in reply to Peter Meaney

TI__Mastermind 31580 points

Hi Johny,

Sorry for the delay here, I am having problems installing TI's PSPICE simulator. Please give me anaother day or two.

Regards

Peter

0 Colin Gillmor over 6 years ago in reply to Peter Meaney

TI__Mastermind 25570 points

Hello Johny

I've been able to get the sim running. Your traces stop at 2ms but I don't see anything happening in the sim until about 10ms at which point the FB signal increases and the SS ramp starts. I'll let the sim run overnight here and let you know what happened

Regards

Colin

0 Colin Gillmor over 6 years ago in reply to Colin Gillmor

TI__Mastermind 25570 points

Hello Johny

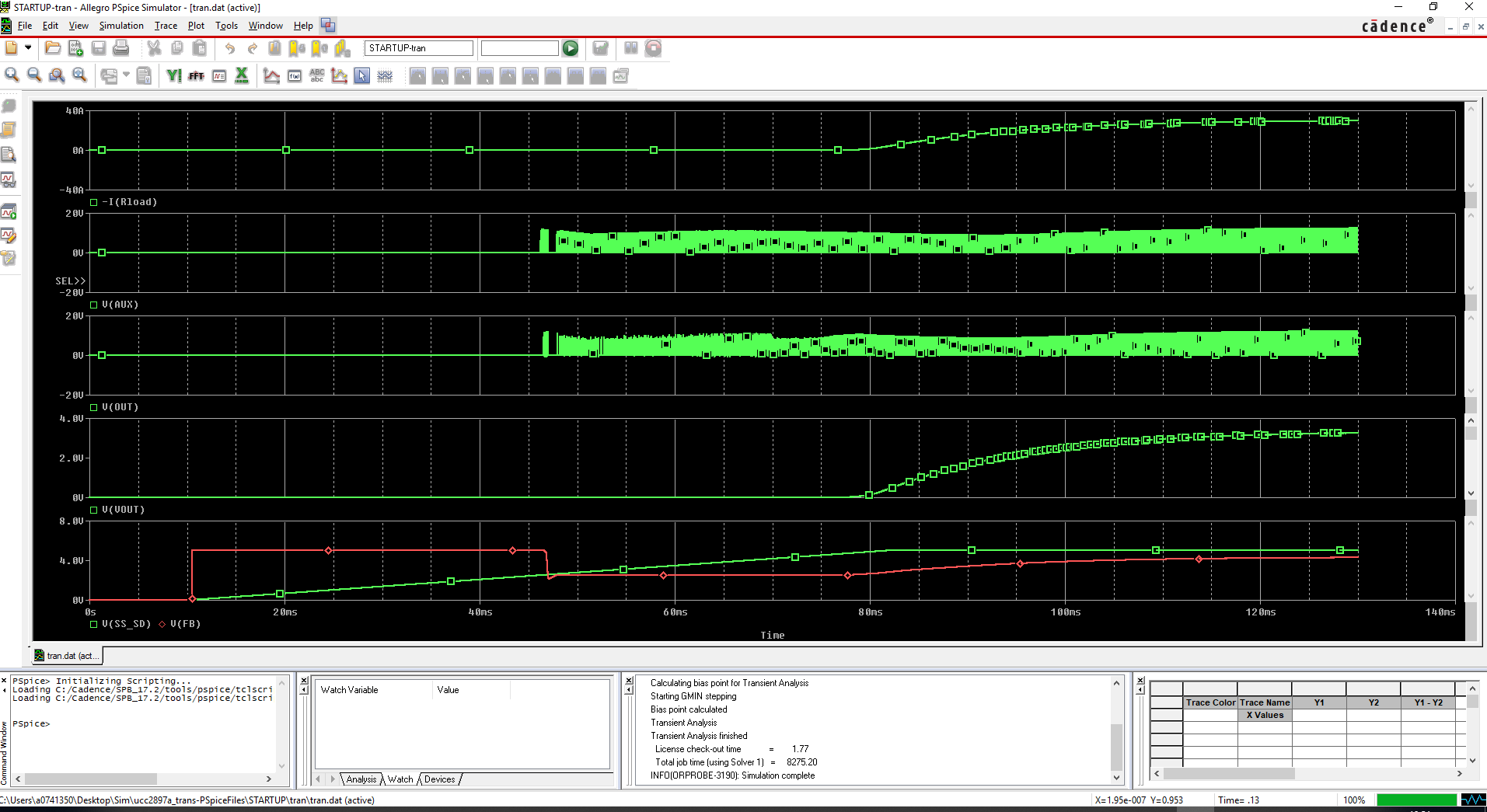

I let the sim run out to 130ms with the result below.

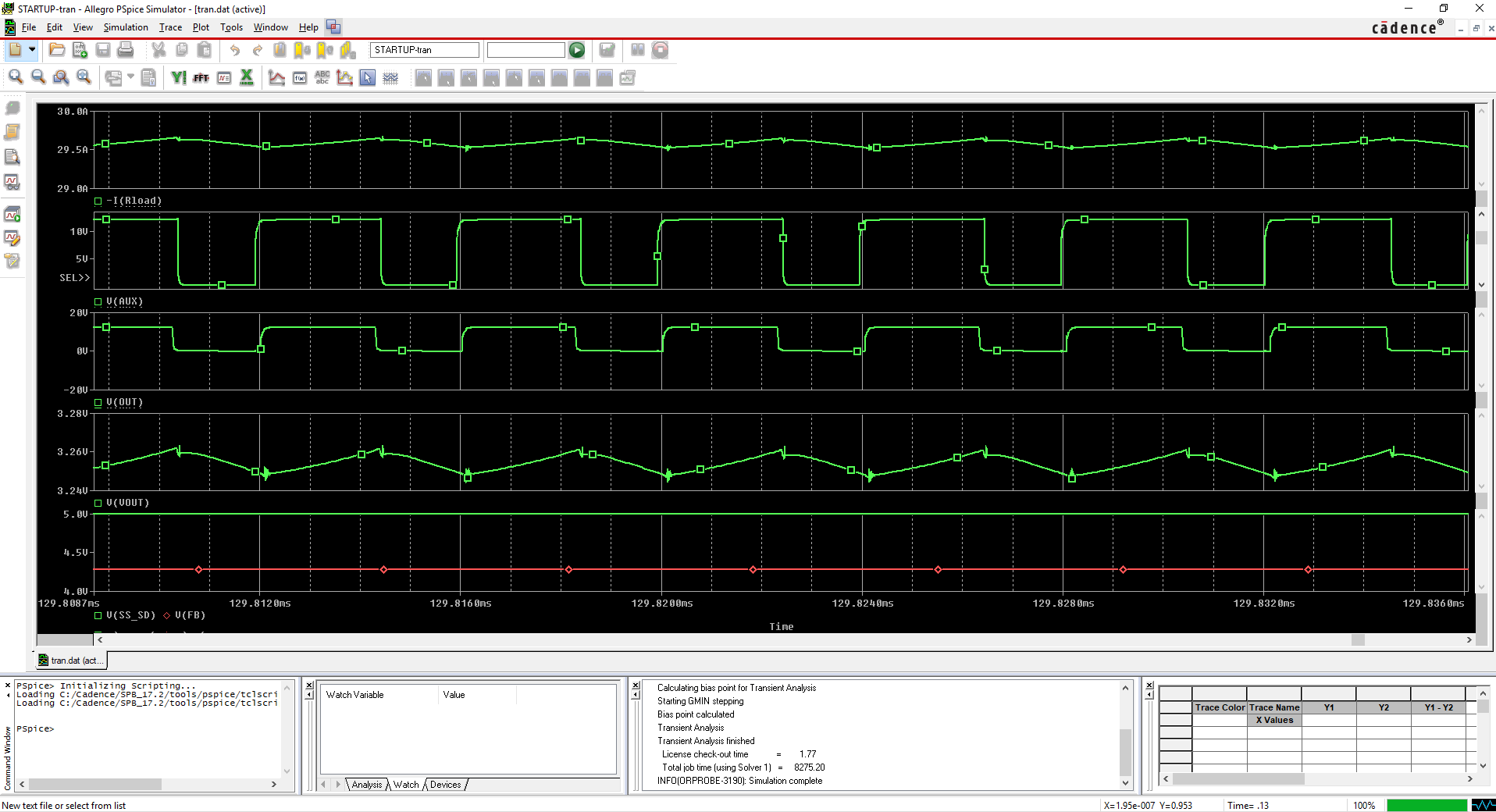

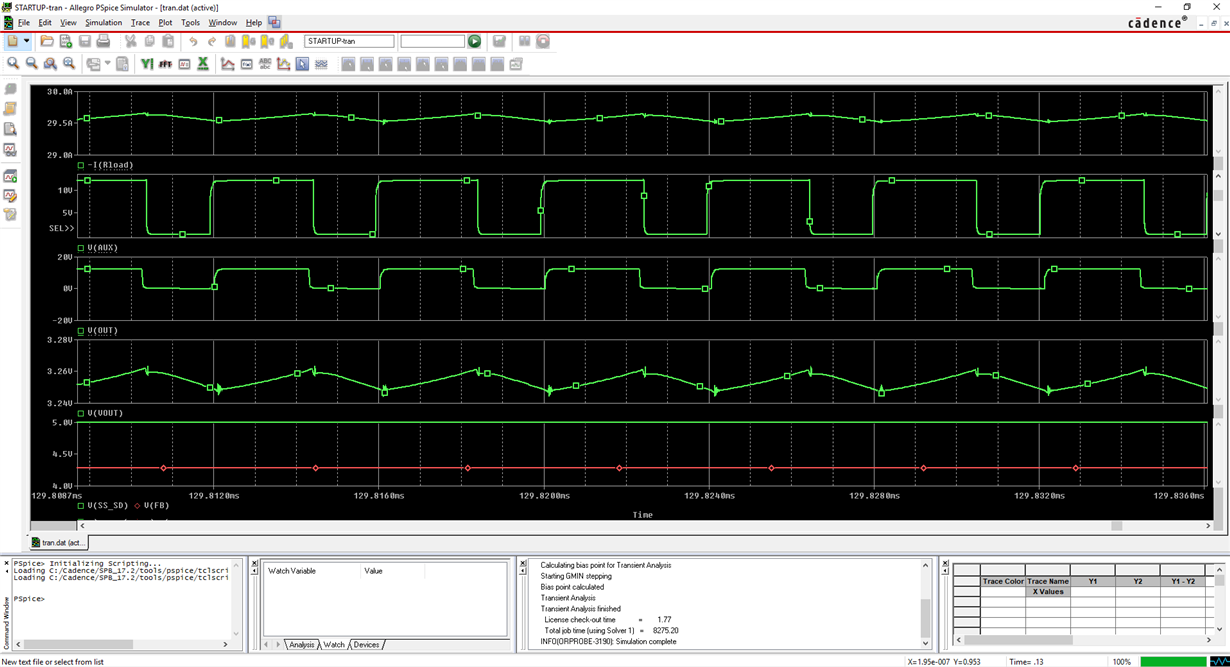

Here's an expanded view at around 130ms

Let us know how you get on - and let me know if the images don't appear

Regards

Colin
