BQ4050: Serial connection

Mihon Lipa

Part Number: BQ4050

Hello. Please tell me how I can connect in series two batteries based on the BQ4050 so that they do not consider each other as an improperly connected charger after the protection has been triggered, for example, by charge or discharge, and at the same time leave the protection from non-polar connection to the charger ?

over 6 years ago

0 Batt over 6 years ago

TI__Mastermind 42535 points

The connection is 1N to cell1-(1P), cell1+ and cell2- together(2P), then short 2P, 3P, and 4P.

0 Mihon Lipa over 6 years ago in reply to Batt

Intellectual 390 points

Oh, no, no, no) I know that. I meant that I already have two battery packs based on the BQ4050 chip, each with four cells connected in series. Can I connect these battery packs in series in one battery pack?

0 Batt over 6 years ago in reply to Mihon Lipa

TI__Mastermind 42535 points

No, the design is not stackable. You need a proper ground. What you are talking about is making a 4s config from 2 2s packs. Instead of that I'd suggest using 1 stack of 4s pack with 1 gauge.

0 Mihon Lipa over 6 years ago in reply to Batt

Intellectual 390 points

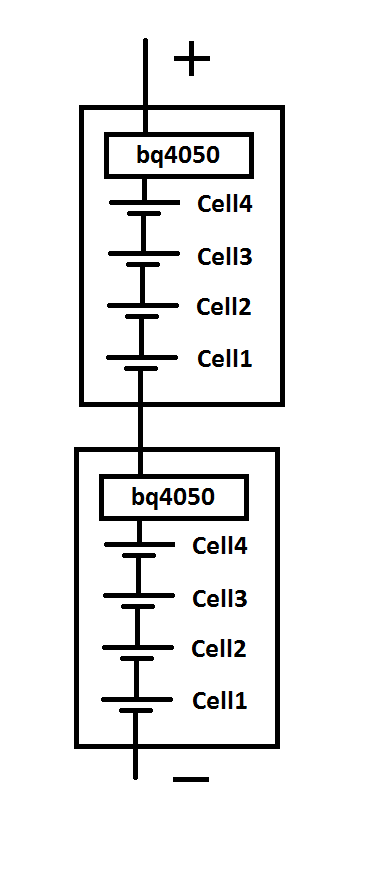

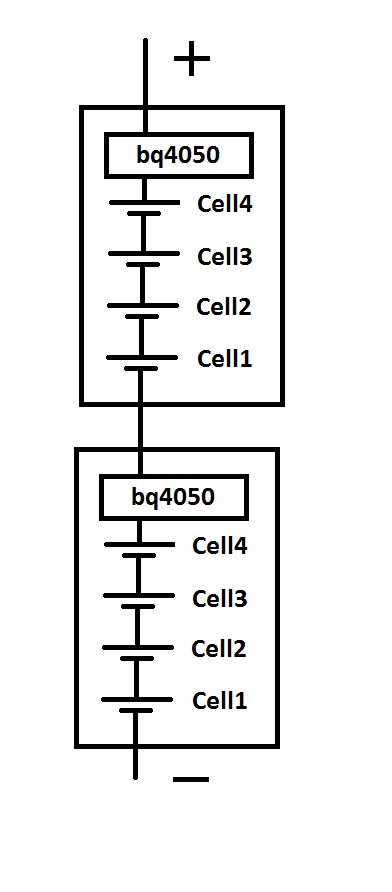

I apologize for my English, you understand me, but, apparently, not to the end. I'd rather show in the picture:

0 Batt over 6 years ago in reply to Mihon Lipa

TI__Mastermind 42535 points

No, that is exactly what doesn't work, this design stacks gauges and the bq4050 doesn't work in such a design.

0 Mihon Lipa over 6 years ago in reply to Batt

Intellectual 390 points

Thank you very much!
