BQ24171: OVPSET

user5861925

Part Number: BQ24171

Hi:

The product I designed USES BQ24171.In the debugging process, when the OVPSET voltage is 3.2v, the chip can still work, the OVPSET is not off, and the range described by Vacov in Datasheet is 1.57 (Min) -1.63(Max).Please give me some guidance. Thank you.

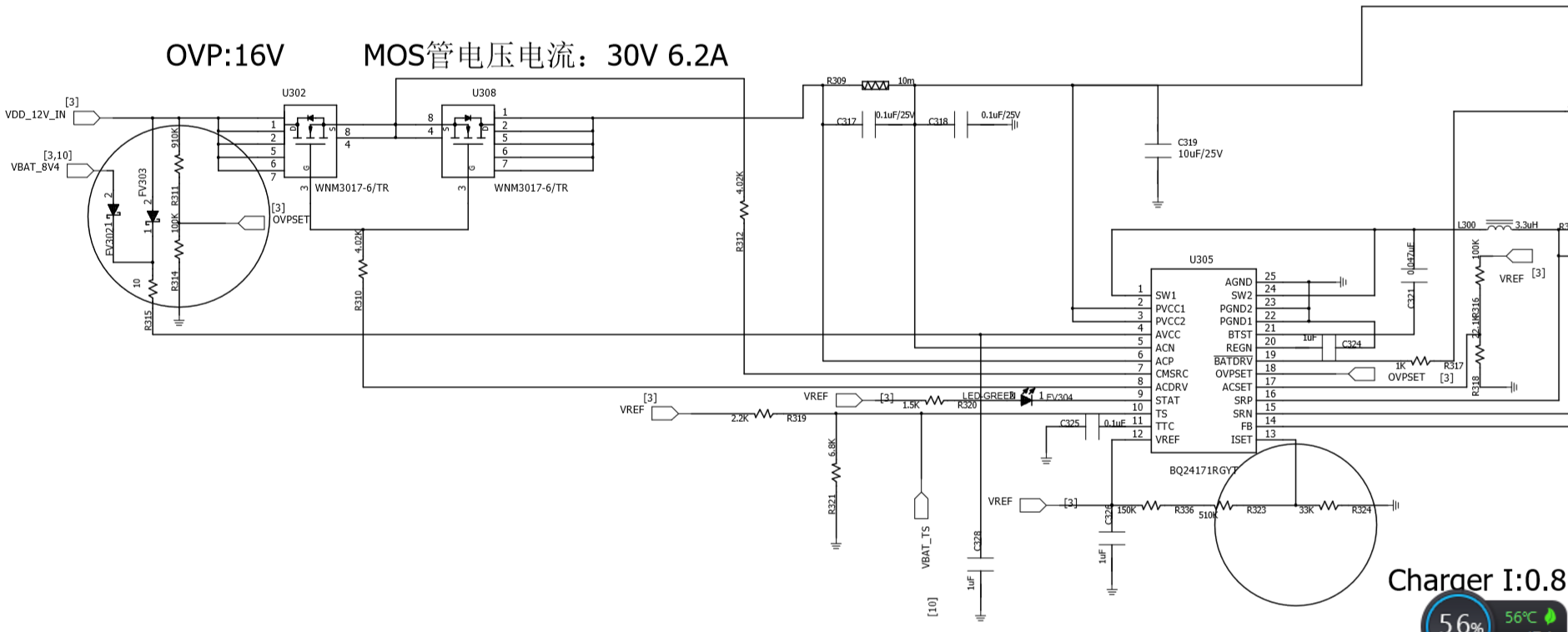

My schematic is as follows:

over 6 years ago

0 Jeff F over 6 years ago

TI__Guru**** 166626 points

Hi,

Your schematic looks reasonable. Just to confirm, U302 and U308 are NMOS, yes? When you say "chip can still work", what is working? In OVP, the chip should turn off U302 and U308 and turn on BATFET so that the system is tied to the battery. Also, the STAT line is blinking.

When I use a power supply to force > 1.63V on OVPSET, my EVM goes into OVP. Can you try that?

Regards,

Jeff

0 user5861925 over 6 years ago in reply to Jeff F

Intellectual 570 points

Hi Jeff:

I tried to use the power supply to directly transfer OVPSET Pin to 3.2v, but did not enter OVP，Please give some Suggestions, thank you!

Sunny

0 Jeff F over 6 years ago in reply to user5861925

TI__Guru**** 166626 points

Hi Sunny,

Does this happen to multiple ICs are only 1?

When you apply 3.2V to OVPSET, does ACDRV drop to VDD=12V, which is not enough voltage to turn on the NMOS FETs?

Regards,

Jeff

0 Jeff F over 6 years ago in reply to Jeff F

TI__Guru**** 166626 points

Sunny,

Since I haven't heard from you in a while, I assume your issue is resolved and I will close this thread.

Regards,

Jeff
