TPS55340: In LED drive application.

WU YISYUAN

Part Number: TPS55340

Hi,

I want to use TPS55340 to drive the backlight module.

Vin=12V and Vo= 27V.

I want to use EN PIN for dimming. I don't know if it's feasible.

Or is there any way to achieve the function of LED dimming?

thanks.

over 6 years ago

0 Helen chen over 6 years ago

TI__Mastermind 40080 points

Dear Sir,

TPS55340 can be used in the LED dimming application. What is the LED current and the dimming range?

0 WU YISYUAN over 6 years ago in reply to Helen chen

Expert 2165 points

Hi Helen,

Dimming Control signal frequency 26k up, Dimming range 0% - 90%

thanks.

0 Helen chen over 6 years ago in reply to WU YISYUAN

TI__Mastermind 40080 points

26K dimming frequency is very high. for the EN pin, the dimming frequency should be below 1k, 200HZ is better.

You should use an external FET in series with the LED to realize the function.

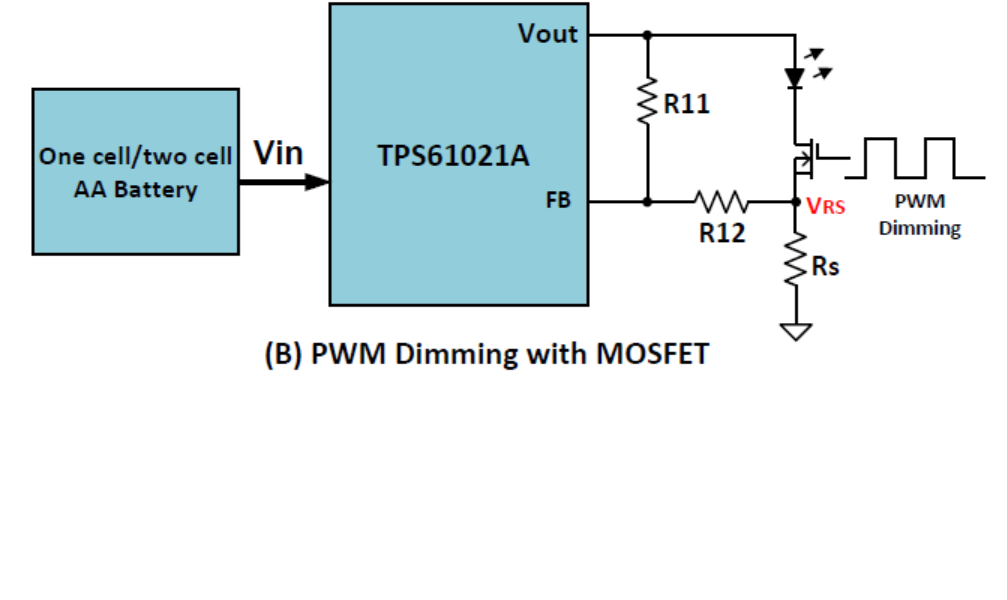

Like the below picture. Or you can refer to TI design PMP15037.
