TLC59213A: Graph of IOUT and VCE

user5118965

Part Number: TLC59213A
Other Parts Discussed in Thread: TLC5923

Do you have Graph of IOUT and VCE?
For example, the value when VCE (Vsus) is 200 mA
Will the output voltage be at VCC-VCE (VSUS)?

over 6 years ago

0 Kenneth Du over 6 years ago

TI__Genius 14295 points

Proper engineer has been assigned to take a look at this and will reply you soon.

0 Shawn Ding over 6 years ago

TI__Expert 3190 points

I guess you may want to know the output current vs. output voltage curves, is it right?

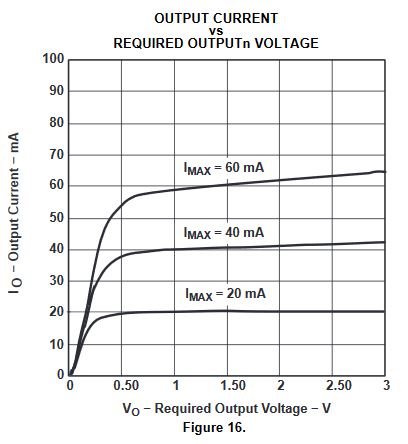

If so, you can refer to this figure in TLC5923 datasheet

0 user5118965 over 6 years ago in reply to Shawn Ding

Prodigy 70 points

・Please tell me the VCE value when IO flows 200 mA

・Can I think of VL as the LED's VF?

0 Shawn Ding over 6 years ago in reply to user5118965

TI__Expert 3190 points

1, the channel IO has no ability to output 200mA, please refer to the datasheet.

2, what is the VL meaning? LED's VF is the forward voltage of the LED, generally the value is from 1.8V to 3V, so the supply voltage for the LED will be among 2.8V~4V
