BQ76930: What is wrong with the BQ7693003 device when the VC8 pin is open ?

Went Cao

Part Number: BQ76930

Dear all

1. If the VC8 pin is open circuit, what happens to the BQ7693003 device ? The device can work normally ?

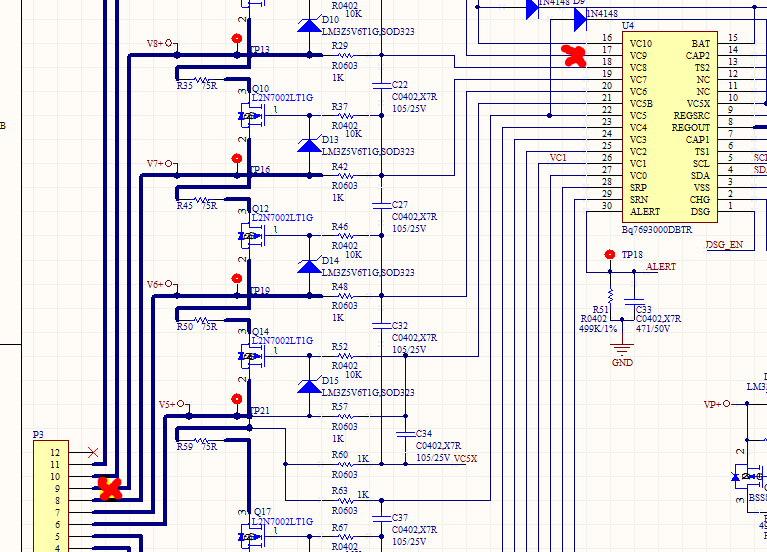

2. As below picture, if the number 9 pin of P3 connector is open circuit, what happens to the BQ7693003 device ? The circuit can work normally ?

over 6 years ago

0 Matt Sunna over 6 years ago

TI__Guru* 81034 points

Hi Went,

The VCx pins should not be left open. For reducing the cell count, please refer to Table 25 of the datasheet. You should short the pins together for the unused cells according to this table. The device will not work normally if you leave these connections open.

Best regards,

Matt

0 Went Cao over 6 years ago in reply to Matt Sunna

Genius 5550 points

Dear Matt

You said the device would not work normally if leave these connections open, Could you tell me concrete phenomenon, like no any creaction, or incorrect data, or other phenomenon ?

0 Matt Sunna over 6 years ago in reply to Went Cao

TI__Guru* 81034 points

Hi Went,

You may see incorrect voltages or it may result in a protection fault on the cell voltages. Here is another E2E thread that describes the result in more detail: https://e2e.ti.com/support/power-management/f/196/t/811029

Best regards,

Matt
