LM5021: Schematic and Layout Review for 12V/7.5A design

Robin Yu

Intellectual 2190 points

Part Number: LM5021

Hi team,

Could you please help check the schematic and layout? Thanks.

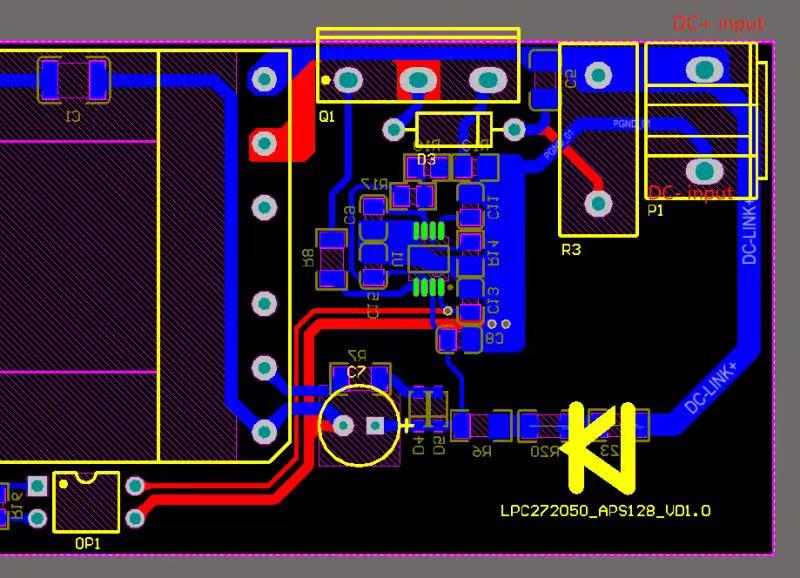

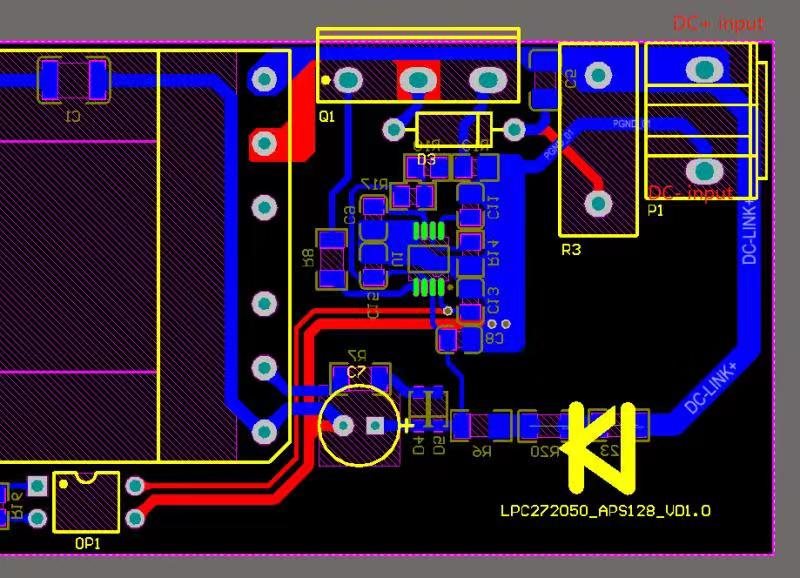

Layout is also included in the PDF file.

Input: 230VDC~700VDC

Output: 12V/7.5A

APS_12V7.5A.pdf

Robin

over 6 years ago

0 Hong Huang over 6 years ago

TI__Guru 73725 points

Can you send the original CAD design file (Altium, PADs, or others) to facilitate the review?

0 Robin Yu over 6 years ago in reply to Hong Huang

TI__Intellectual 2190 points

Hi Hong,

It is not allowed to offer the original cad file from customer policy. Sorry about this. Could you please check that based on existed information?

Great thanks.

Robin

0 Hong Huang over 6 years ago in reply to Robin Yu

TI__Guru 73725 points

It is difficult to review the layout in its PDF as there are connections not clearly. If the customer does want TI to help review please provide the original CAD design files. You can send the files directly to the below email:

hong_huang@ti.com

Otherwise, please print out each layer separately so we can know where are connections between layers.
