WEBENCH® Tools/TPS54160: tps54260 Output Terminal Noise Problem

seo hyeoksu

Prodigy 120 points

Part Number: TPS54260
Other Parts Discussed in Thread: TPS54160

Tool/software: WEBENCH® Design Tools

TPS54260 was designed using WEBENCH® Power Designer.

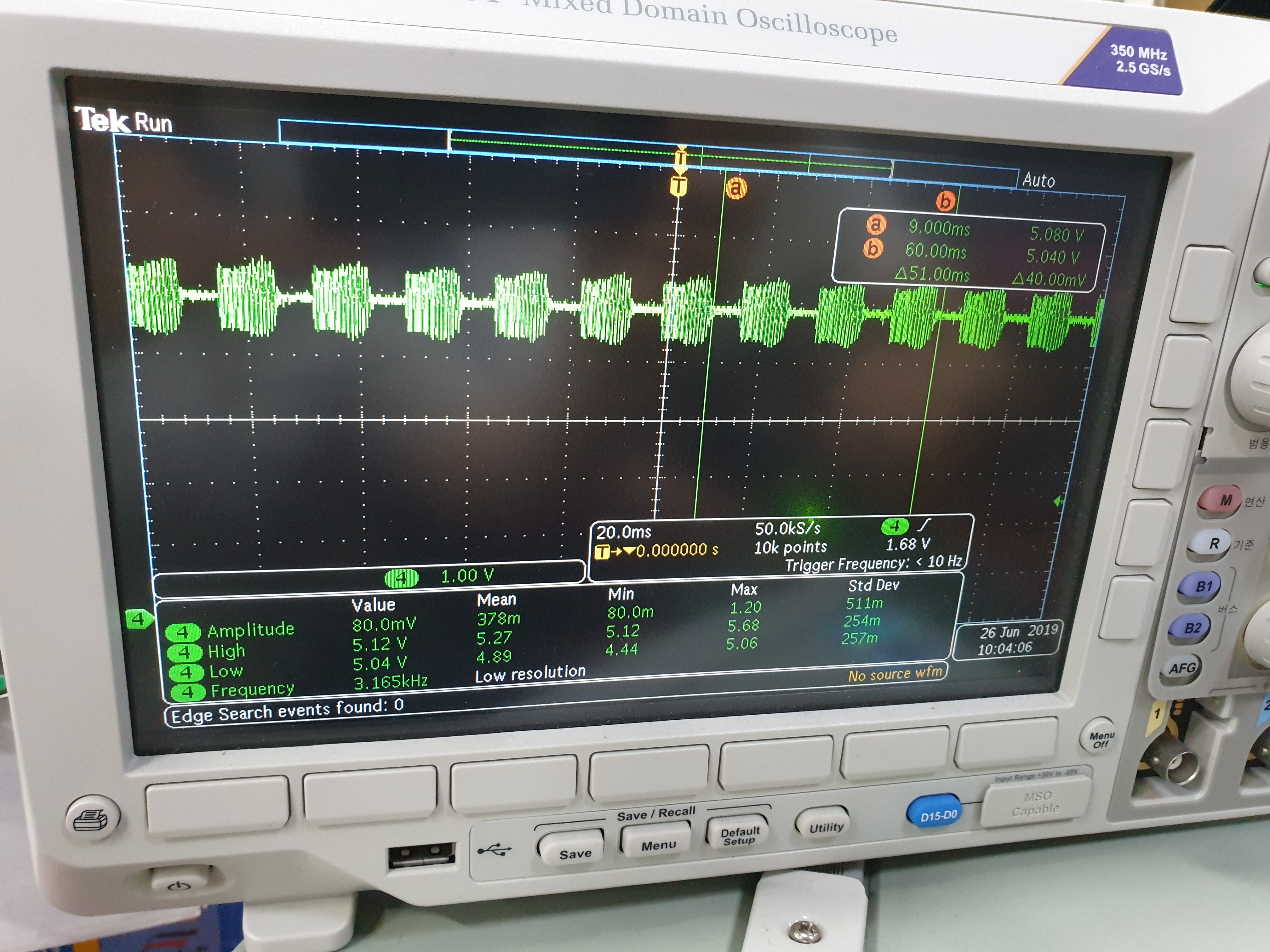

The output of the TPS54260 from several products is shown as a waveform of the attached picture.

The MCU is reset by the noise in the picture.(used reset ic : TPS3825-50DBV)

I want to know what the problem is.

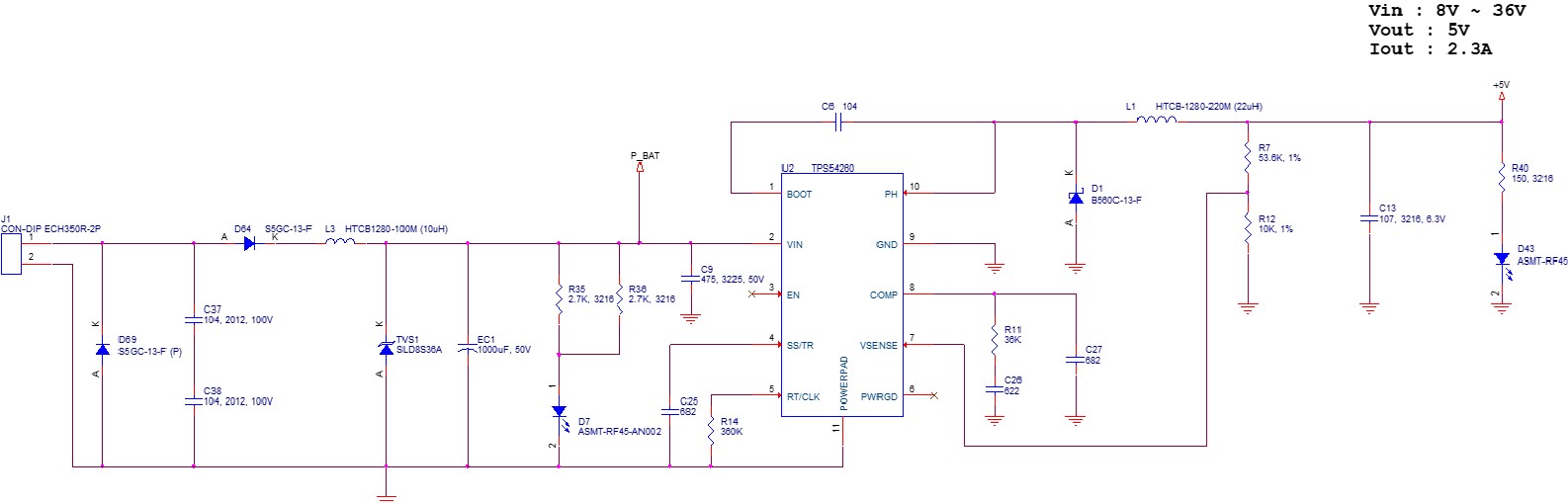

A circuit diagram and photo are attached.

Ask for help

over 6 years ago

0 Andy Chen over 6 years ago

TI__Mastermind 34875 points

Hi,

Do you use TPS54160 1A converter or TPS54260 2A converter for the load current 2.3A?

Do you use 100uF 6.3V cap as C13 output cap? the cap voltage rating should be >16V for 5V bias voltage. pls try it with 2pcs 47uF 16V cap to see if problem solved.

0 seo hyeoksu over 6 years ago in reply to Andy Chen

Prodigy 120 points

Noise disappeared when using 2pcs 47uF 16V caps.
Can you see why the noise is gone?

0 Andy Chen over 6 years ago in reply to seo hyeoksu

TI__Mastermind 34875 points

The output 6.3V 100uF ceramic capacitor is biased with 5VDC, the effective capacitance maybe 10uF or less, the circuit can't works stably with too small output cap at output is loading.

0 seo hyeoksu over 6 years ago in reply to Andy Chen

Prodigy 120 points

Noise was eliminated using two 16V 47uF tantal capacitors. I'd like to know if the difference between the capacitor voltage 6.3V and 16V is related to the 5V output of tps54260
