LM25116EVAL: A ref design for LM25116 5V7A

Yue TANG

Part Number: LM25116EVAL

Hi,

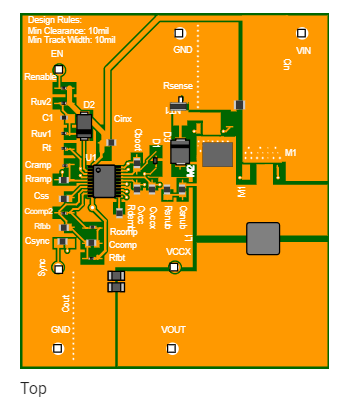

I met trouble to export the PCB file through WEBENCH, seem the source file kind of depend on specific version of the PCB tools. also from the capture file below ,only one MOSFET can be seen. That doesn't look right.

The EVAL is close to my customer's design target. but doestn't provide the source file of the PCB and Schematic. can anyone help on here?

http://www.ti.com.cn/tool/cn/LM25116EVAL

Or, can you please provide a open able version for allergo17.2 ? thanks.

over 5 years ago

0 Ankit Gupta95 over 5 years ago

TI__Expert 4555 points

Hi Yue,

Can you please let me know your application case. I can try creating a Webench link for you.

Best Regards,

Ankit Gupta

Application Engineer

0 Ankit Gupta95 over 5 years ago in reply to Ankit Gupta95

TI__Expert 4555 points

Hi Yue,

Its been a while we didn't heard back from you. I am closing this thread for now, please let us know if you need more assistance.

Best Regards,

Ankit Gupta

Application Engineer.

0 Yue TANG over 5 years ago in reply to Ankit Gupta95

TI__Expert 8705 points

Ankit,

Sorry for delay. I was on 7-days national vocation. Actually, I need a reference for PCB layout. Because my customer's design met a EMI problem. When the load increase about 500mA, the on-board USB can't work well[unrecognized]. their application is motion control card, the condition of input and output is very close to LM25116EVAL. But I can't find the PCB source file. also,as I said,WEBENCH depend on specific version of the PCB tools, I can't open the export design. so , it would be great if you can share a design which can open with allergo17.2 .

0 Ankit Gupta95 over 5 years ago in reply to Yue TANG

TI__Expert 4555 points

Hi Yue,

Did you try exporting files from Classic Webench?

Best Regards,

Ankit Gupta

0 Ankit Gupta95 over 5 years ago in reply to Ankit Gupta95

TI__Expert 4555 points

Hi Yue,

Please let us know if issue is resolved?

I am closing this thread for now, please let us know if you need more assistance. Thanks!

Best Regards,

Ankit Gupta

Application Engineer
