BQ25150: How to read battery temperature by using TS

Akshay Patil1

Prodigy 170 points

Part Number: BQ25150

Hello,

I want to read temperature of battery(Li-Ion),by using TS.

From data sheet (TI BQ25150) , I got info about Vts.

But there is no info about conversion of Vts to degree C. How to convert from Vts to degree C.

Is there is another way to read temperature of battery except ADCIN.

Thanks

/ Akshay P

over 5 years ago

0 Gautham over 5 years ago

TI__Genius 12485 points

Hi Akshay,

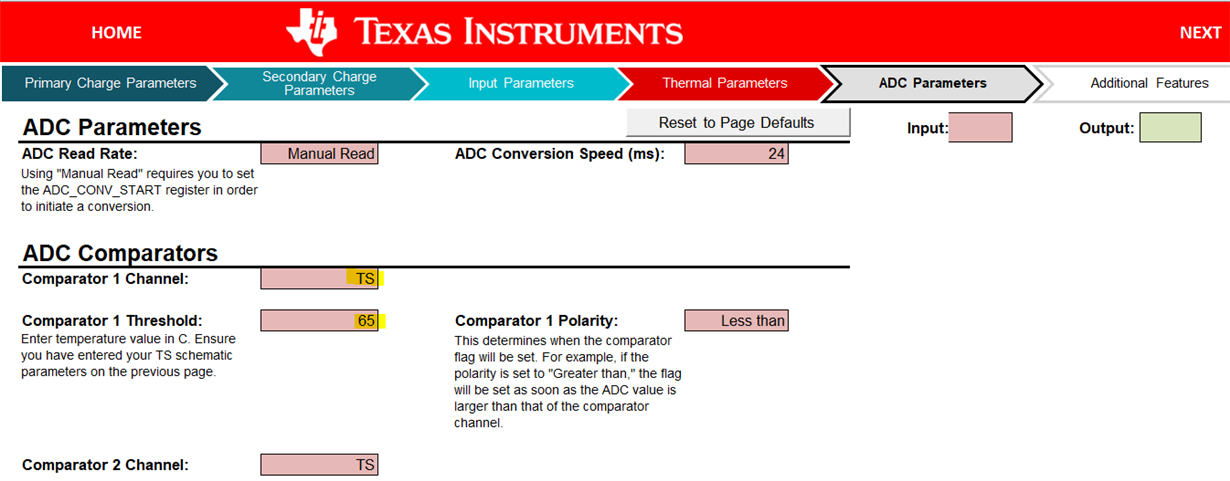

The VTS code can be read through the register 0x44 and 0x45. Based on the NTC you pick and the parallel resistor, you will have to review the NTC datasheet to see what temperature the equivalent resistance has. We have the Setup Guide tool which simplifies this calculation. You can easily convert C to voltage code using that and scroll all the way down to the register section. I have included the link here- www.ti.com/.../sluc679

It is a good idea to make a C to voltage converter. I will attach it to this post once complete.

Regards,

Gautham

0 Akshay Patil1 over 5 years ago in reply to Gautham

Prodigy 170 points

Hi Gautham sir,

Thanks for reply.

I have used this XLS, but the temperature relation with respect to register value is not same.

some time it shows difference of 24 & some time 25, 23 etc.

I am tried to make generic for same.

data sheet shows accuracy of +- 1%.

can you share the formula for that.

Thanks & Regards

Akshay P

0 Anthony P Pham over 5 years ago in reply to Akshay Patil1

TI__Mastermind 23410 points

Hi Akshay,

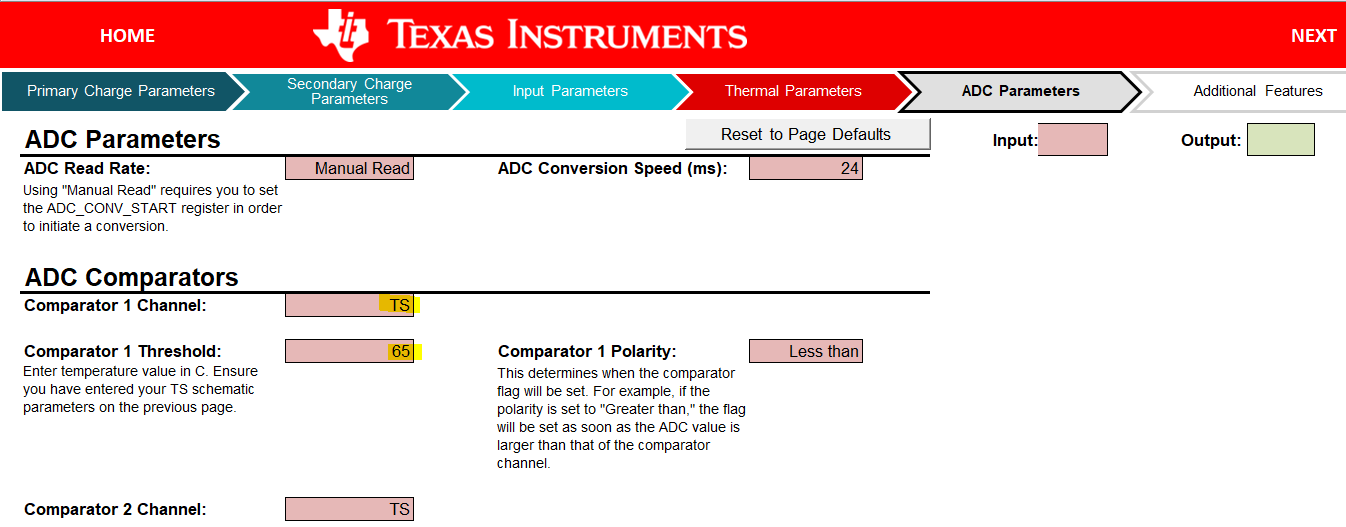

Here's an XLS that'll do the VTS to C calculation.

8206.BQ2515 - VTS and TS.xlsx

Regards,

Anthony Pham

0 Akshay Patil1 over 5 years ago in reply to Anthony P Pham

Prodigy 170 points

Hi Anthony sir,

Thanks for reply,

This reply solve my problem.

Thanks TI forum.

Thanks & Regards

Akshay P
