UCC21710-Q1: can we converter this Pspice model into Tina and simulate it in Tina?

Zhehui Guo

Part Number: UCC21710-Q1
Other Parts Discussed in Thread: UCC21710

Hi, can we convert ucc21710's Pspice model into Tina model and build the simulation in Tina software? However, I found that I can not get the converted Tina model correctly. Could you please give some guide or illustration. If it is not applicable for ucc21710, please let me know. Many thanks.

over 5 years ago

0 Audrey Dearien7 over 5 years ago

TI__Expert 4875 points

Hello Zhehui,

Have you taken a look at the training materials describing import from pspice to tina? https://training.ti.com/importing-spice-models-tina-titm-simulator

Regards,

Audrey

0 Zhehui Guo over 5 years ago in reply to Audrey Dearien7

Prodigy 130 points

Hi Audrey,

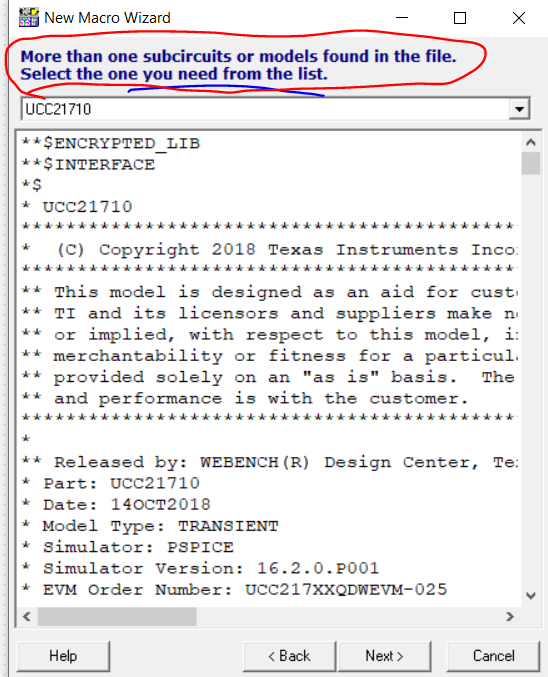

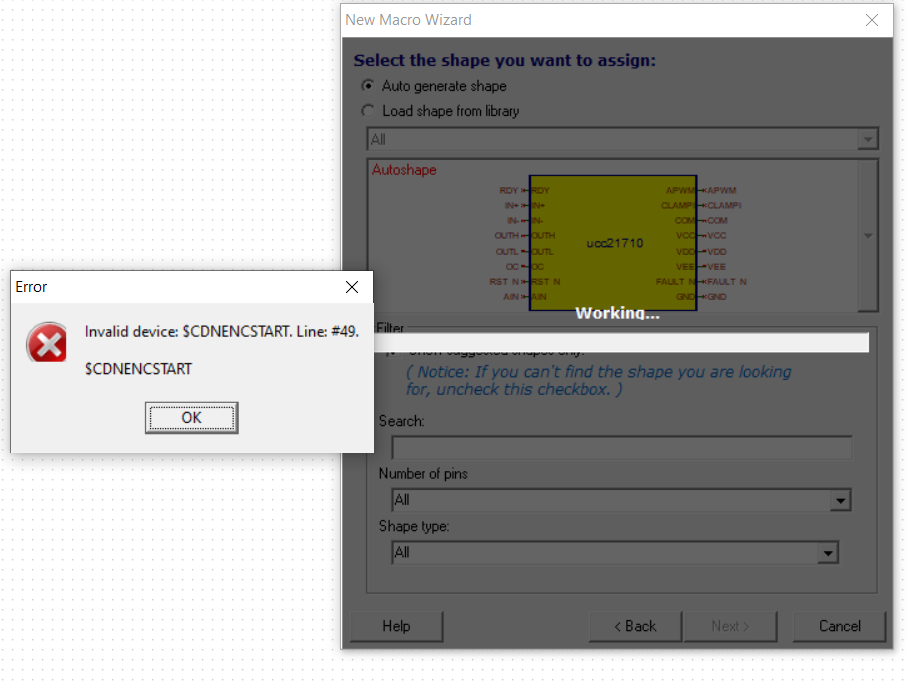

In fact, I have tried it according to the this video, but the following pictures are showed. I had to ignore "more than one subcircuits or models found in the file. select the one you need from the list" since I think I need all the subcircuits to simulate the IC. And then Tina model can not be generated correctly as shown in the second picture. Could you please help me to solve this issue?

Bests,

Zhehui

0 Audrey Dearien7 over 5 years ago in reply to Zhehui Guo

TI__Expert 4875 points

Hi Zhehui,

Please try importing the model after commenting out the line ".MODEL IXGA8N100 NIGBT".

Please keep in mind that we do not guarantee full functionality of the model as originally intended because it has not been tested to the fullest with the recommended change.

Regards,

Audrey
