Compiler/LM5146-Q1: Error Preparing Shape List

Subrahmanyam V

Part Number: LM5146-Q1
Other Parts Discussed in Thread: TINA-TI

Tool/software: TI C/C++ Compiler

Hi,

I want to create a symbol by loading a macro of LM5146-Q1 IC into TINA. It is the

downloaded from TI.

As soon as I add the macro and go next, it says the following error - "Error preparing shape list".

Can you please help me in resolving this?

Regards,

Siri.

0 Samuel Jaffe over 5 years ago

Siri,

I have contacted the spice modeling team. They will be able to help you shortly.

-Sam

0 Imran Dharwad over 5 years ago

Hi Siri,

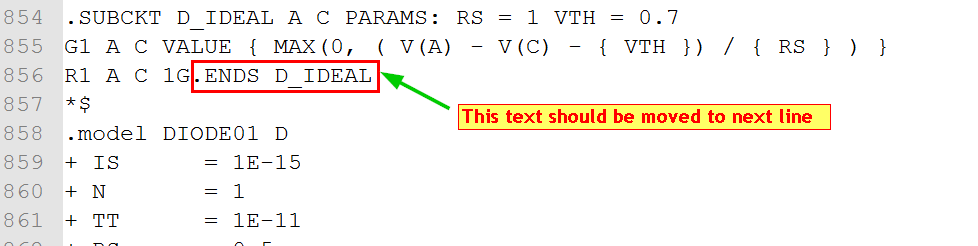

Thanks for bringing this to our attention. We need to make a small modification in LIB file to make it work in TINA-TI.

[This doesnot cause any issues in PSPICE.]

Attached is the corrected file for your reference(LM5146-Q1_TRANS_corrected.lib). We shall update the model on WEB.

0 Subrahmanyam V over 5 years ago in reply to Imran Dharwad

Thanks Sam and Imran.

I will use the updated model.
