WEBENCH® Tools/LM25576: WEBENCH DESIGN ERROR

vishal sapara

Part Number: LM25576
Other Parts Discussed in Thread: LM5118,

Tool/software: WEBENCH® Design Tools

Hello,

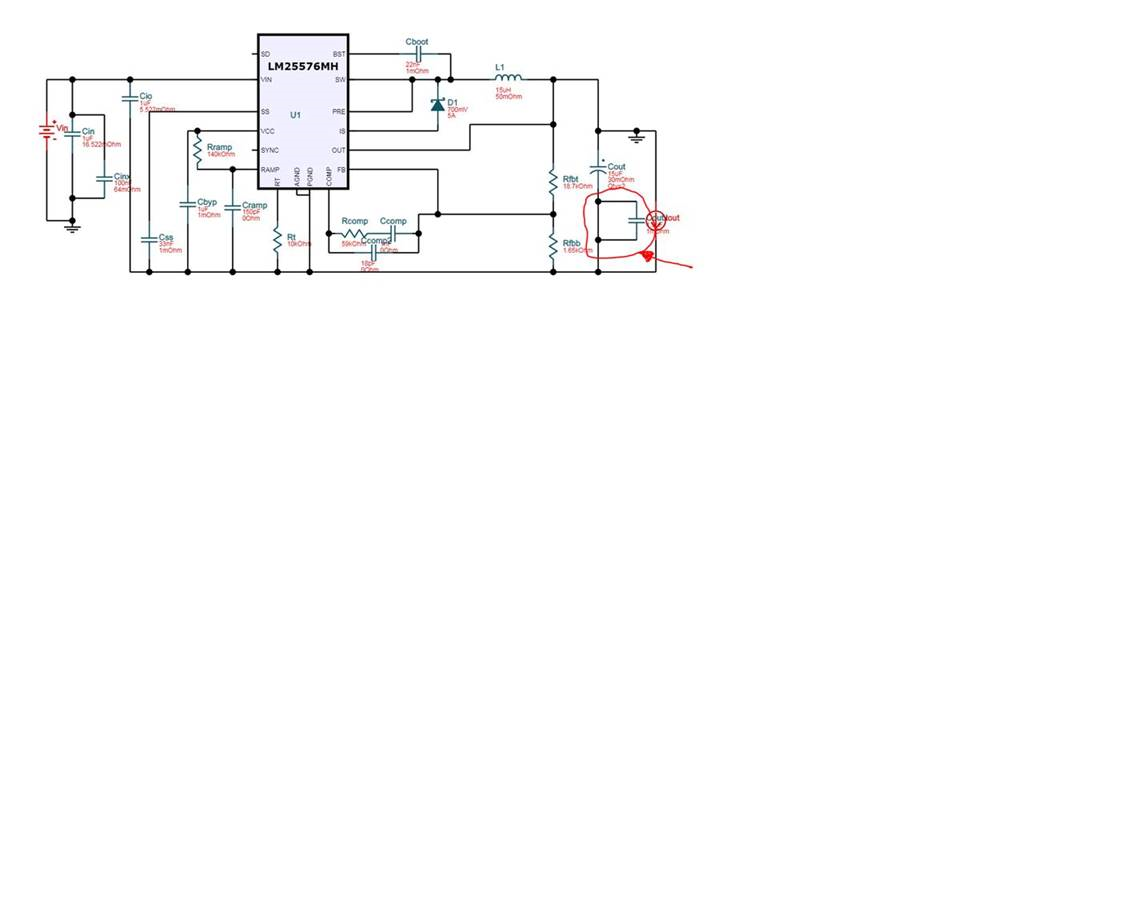

I am using webench Power Designer by TI, I am bit confuse regarding Design downloaded from Ti webench. I am attaching screenshot for same.

Is this capacitor shown by Red mark is connected like that As it is in snapshot or It is in parallel with Cout????

0 Gavin Wang (Zejing) over 5 years ago

Hi Vishal,

Can you share the link of you webench design?

Gavin

0 vishal sapara over 5 years ago in reply to Gavin Wang (Zejing)

Thank you,

Gavin Wang For Reply.

below is link for that Design.

Regards,

Vishal

0 Gavin Wang (Zejing) over 5 years ago in reply to vishal sapara

Vishal,

I opened your design. It is LM5118 design.. Can you please double check?

Gavin

0 vishal sapara over 5 years ago in reply to Gavin Wang (Zejing)

Hello Gavin,

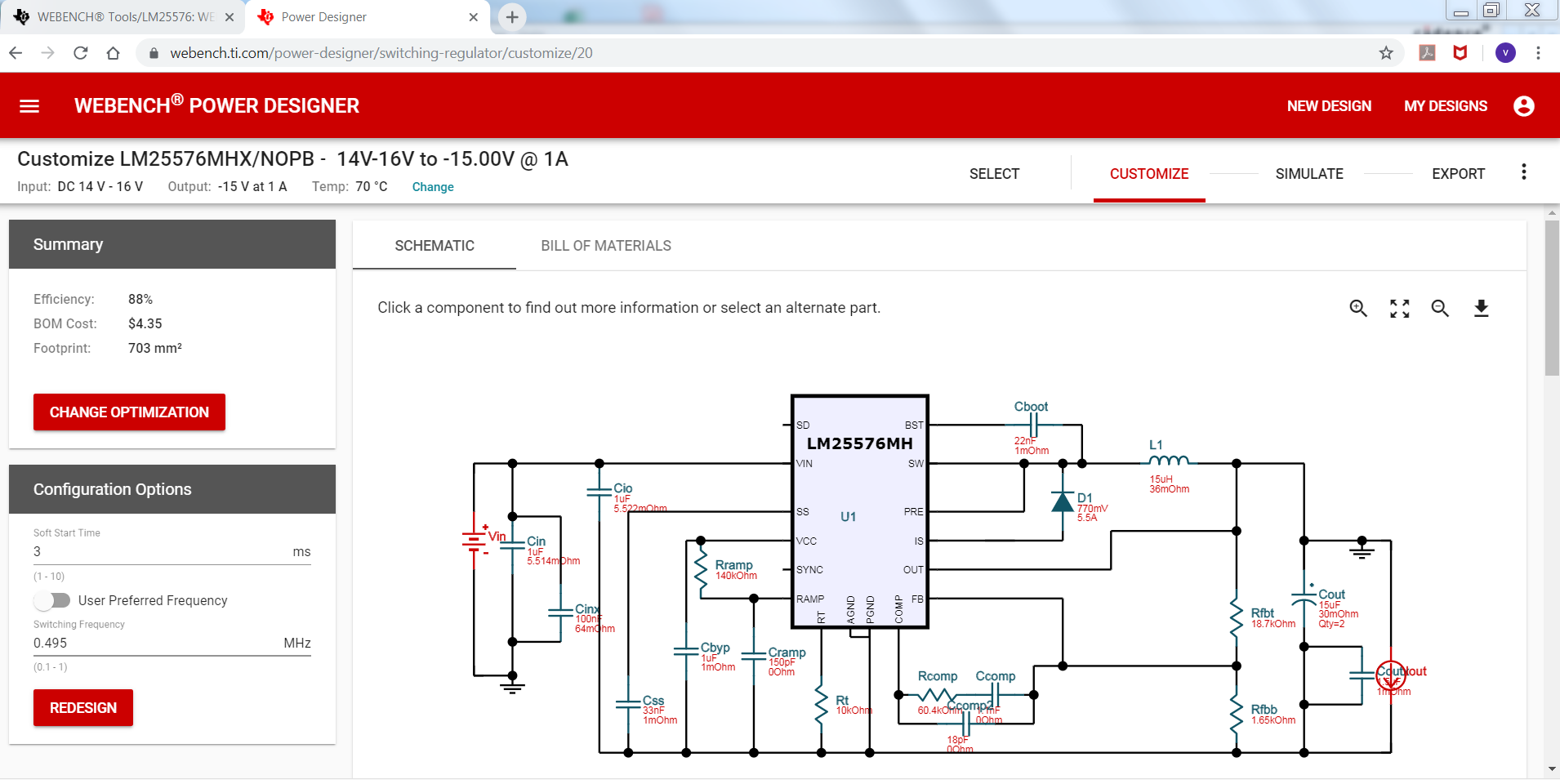

Following is snapshot of link which i has sent you but in my PC it is Design for LM25576..

Regards,

Vishal.

0 Gavin Wang (Zejing) over 5 years ago in reply to vishal sapara

Vishal,

I try to open your link many times. It is LM5118.

Anyway, I think if the output voltage is normal. it should be in parallel with Cout.

Gavin

Power management forum
