TPS40061: Un-encrypted model / library

ravikumar setty

Part Number: TPS40061
Other Parts Discussed in Thread: LM5145, , TINA-TI

We are using TPS40061PWP, in one of our existing designs. We would like to carry the simulations on this controller.

When I searched I could only find the encrypted models. We would like have the un-encrypted model / library of the TPS40061PWP. Can somebody help me on this.

Thanks

Ravikumar

over 5 years ago

0 Daniel Li14 over 5 years ago

TI__Mastermind 27470 points

Hi Ravikumar :

TSP40061PWP don't have unencrypted pspice model. have you fixed the design yet? if not, I will recommend you can try LM5145 which is 75V votlage mode controller. it has unencrypted model in below link:

http://www.ti.com/product/LM5145/toolssoftware

pls let me know whether it works to you .

Thanks

Daniel Li

0 ravikumar setty over 5 years ago in reply to Daniel Li14

Intellectual 310 points

Hi Daniel,

Thank you for quick response.

Yes, it is an existing design and would like to simulate.

if TPS40061 un-encrypted model is not available, may I know any closest voltage mode controller with minimal changes which can get us TPS40061 model.

Thanks

Ravikumar

0 Daniel Li14 over 5 years ago in reply to ravikumar setty

TI__Mastermind 27470 points

Hi Ravikumar

Can you leave your email to me, I will try to apply TPS40061 un-encrypted model for you, but I am not sure whether we can finally generate it.

And what behaviour of TPS40061 you want to sim? loop or other?

Thanks

Daniel Li

0 ravikumar setty over 5 years ago in reply to Daniel Li14

Intellectual 310 points

Hi Daniel,

Please reach me at ravikumar.setty@honeywell.com.

I would like to simulate the steady state performance at various line and load conditions. I am also interested to examine the output voltage over shoots and under shoots with the step changes on supply voltage and load current.

Thanks

Ravikumar

0 Daniel Li14 over 5 years ago in reply to ravikumar setty

TI__Mastermind 27470 points

Hi Ravkumar:

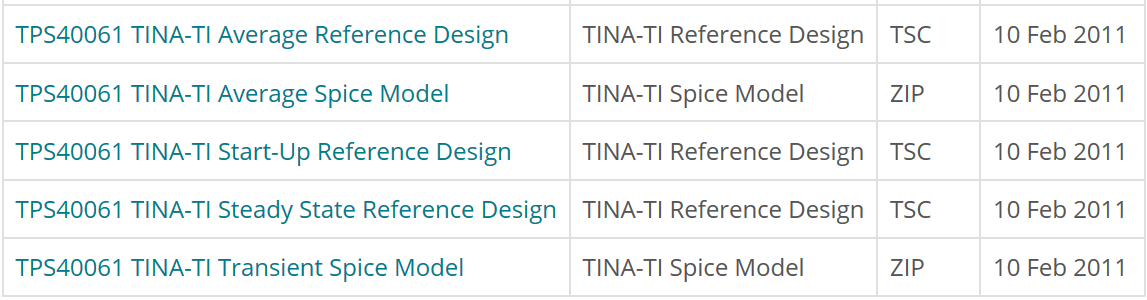

TI provide free simulation tools TINA-TI for TPS40061 sim, the model can be found in below link, you can get the steady and transient performance in different input and load condition

I will check with model team whether the un-encrypted model is availble, because it cost time, so I suggest you can use TINA model verify the design first.

Thanks

Daniel Li
